A study in contrasting waterborne art Water lily nozzle produces an eye-catching display that's

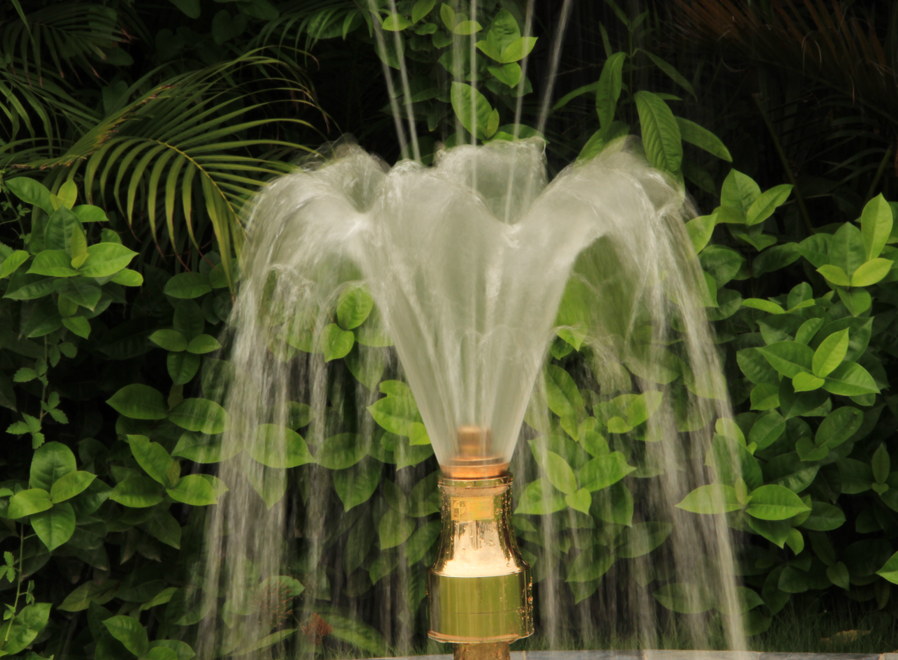

both light and delicate. A miniature version of our Crystal Arch nozzle, the water lily combines that lofty, single tier arching pattern with a lower bell shape feature similar to the Tulip, with a compact, sheeting fall.
The water lily exhibits excellent prismatic light reflecting prosperities, thanks to the multi-channeLED nozzles individual water trajectories that expand to form liquid crystalline drops many times larger than the original clear streams. This nozzle is at its best when illuminated at night with adequate perimeter light placement.
Specification Data

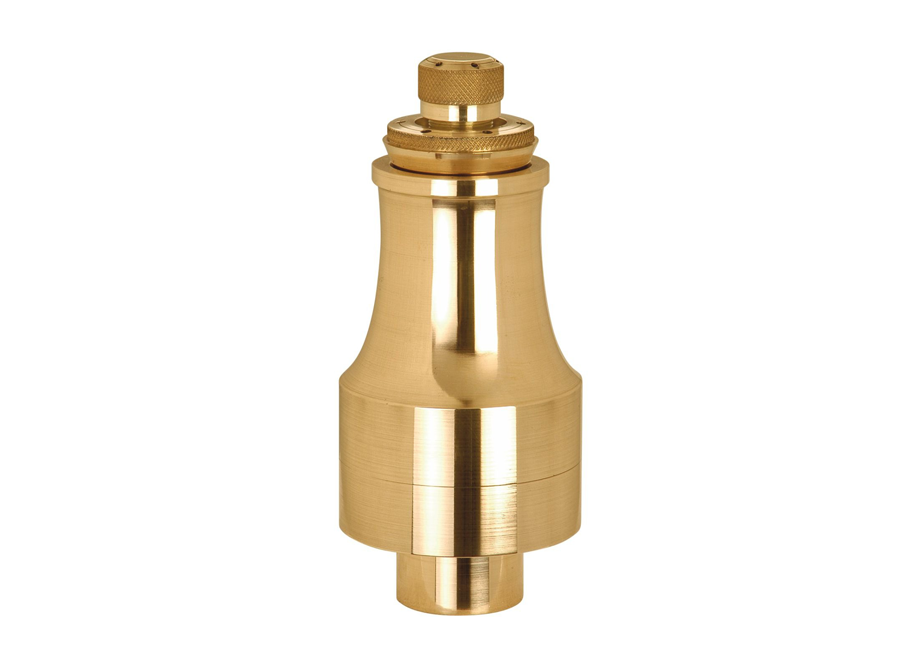

Material of construction is bronze • Excellent pattern stability even in moderate wind conditions. • Water lily is Water Level independent and can be located in dry areas. • Water lily with a BSP/NPT (F)threaded connection.
Operation Data
- Noise : Good
- Visibility : Excellent
- Splash /Mist : Low to medium
- Wind Stability: Good
- Aeration Quality : Moderate
Hydraulic Data
| Model No |

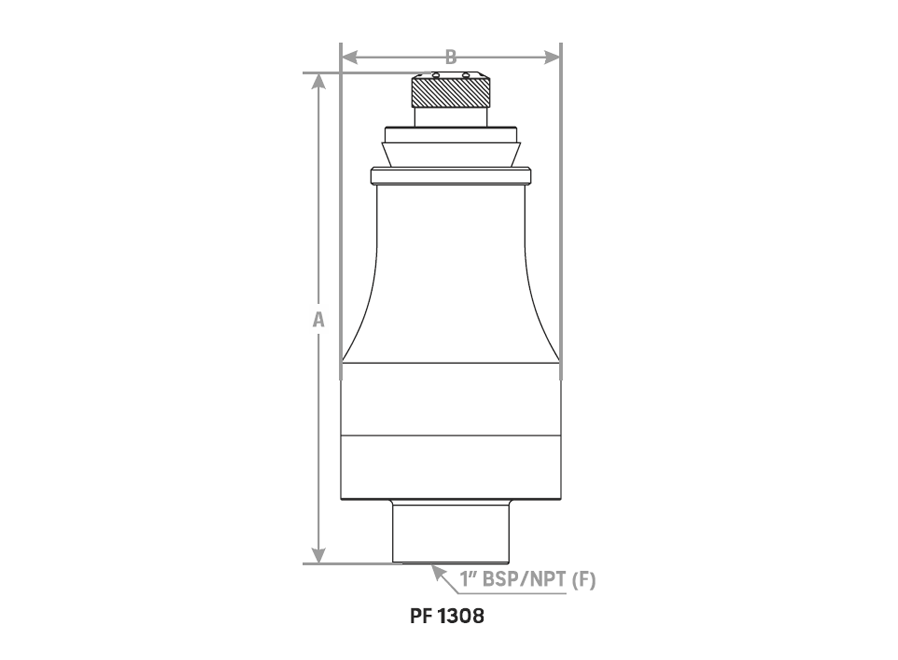

BSP/NPT | Dimension (mm) | Spray Height in cm | |||||
|---|---|---|---|---|---|---|---|---|
| A | B | 0.25 | 0.50 | 0.75 | 1.00 | |||
| PF 1308 | 1” | 192 | 85 | LPM | 64 | 75 | 83 | 90 |
| Spread in cm | 1.00 | 1.50 | 1.75 | 2.00 | ||||
| Head in Mtr | 0.25 | 0.50 | 0.75 | 1.00 | ||||
