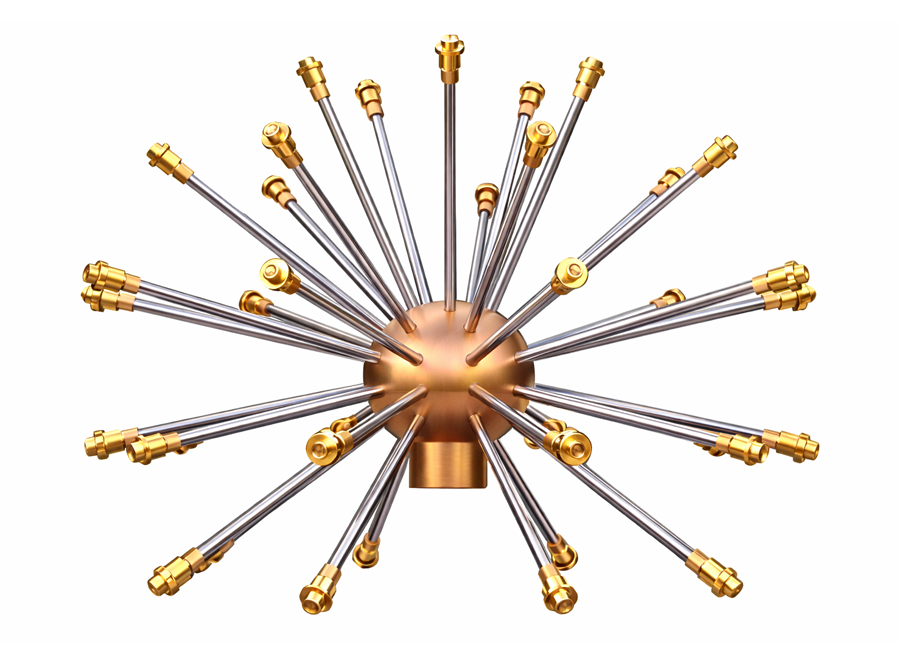

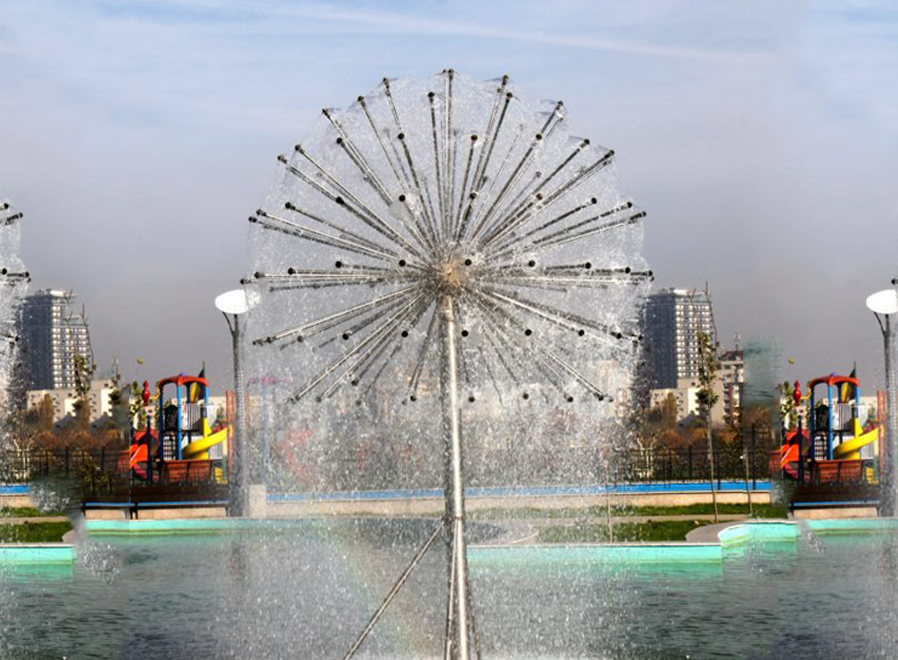

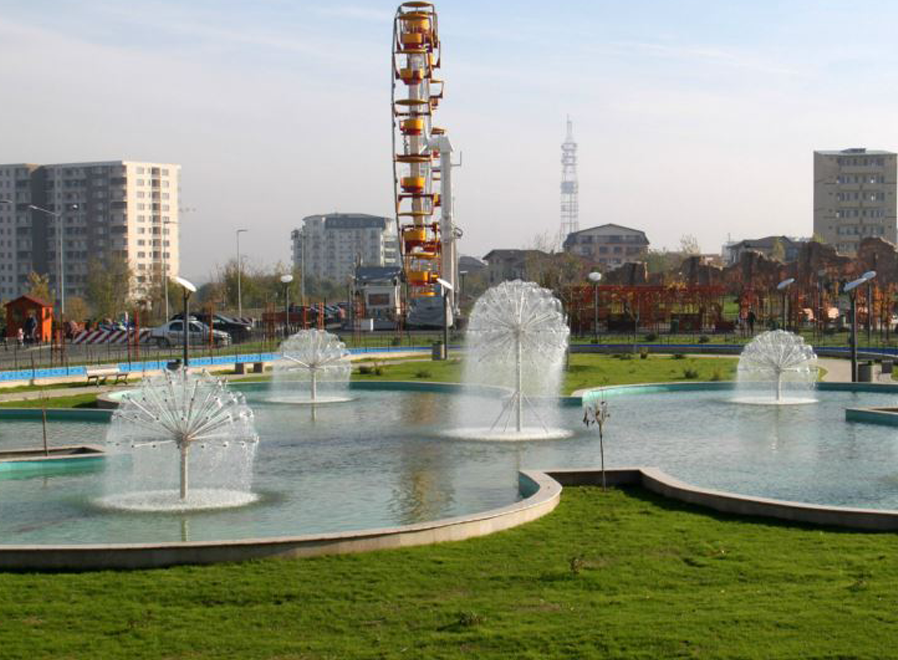

DANDELION (SPHERE) PF 6400 Series Sphere Effect Nozzle creates a stunning spherical water pattern resembling a blooming dandelion. Its uniform spray and balanced design deliver a graceful, eye-catching display. Ideal for decorative fountains and architectural water features seeking a unique focal element. Engineered for consistent flow and durability, it performs reliably in both indoor and outdoor installations. Perfect for creating a mesmerizing centerpiece with refined visual appeal.
Specification Data
• Material of construction is cast bronze and precision machined brass.
• Nozzles are easily cleaned individually adjustable (for water thickness) and removable.
Operation Data
- Noise : Good
- Visibility : Excellent
- Splash/Mist : Excellent
- Wind Stability : Poor
- Aeration Quality : Good
Hydraulic Data
| Model No |
BSP/NPT | Dimension A in Mtr. | Dimension B Hub Dia in mm | Nos of Arms | LPM | Head in Meter |
|---|---|---|---|---|---|---|
| PF 6441 | 2 ½” | 1.00 | 200 | 40 | 450 | 5.00 |
| PF 6443 | 2 ½” | 1.30 | 200 | 40 | 500 | 5.00 |
| PF 6445 | 4” | 1.90 | 300 | 110 | 1500 | 7.00 |
