VP015
VP020
VP020
Design /Application Data

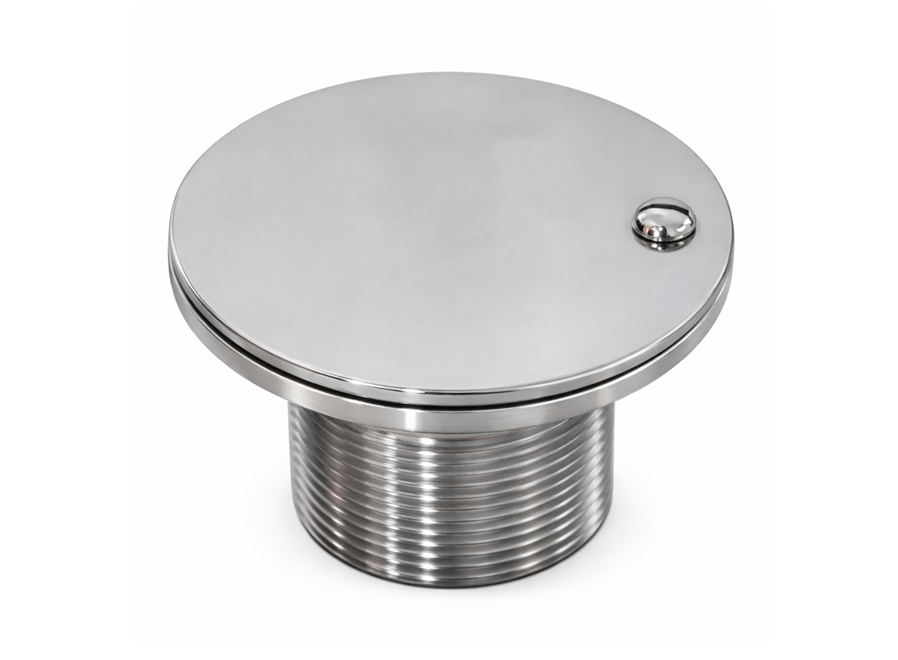

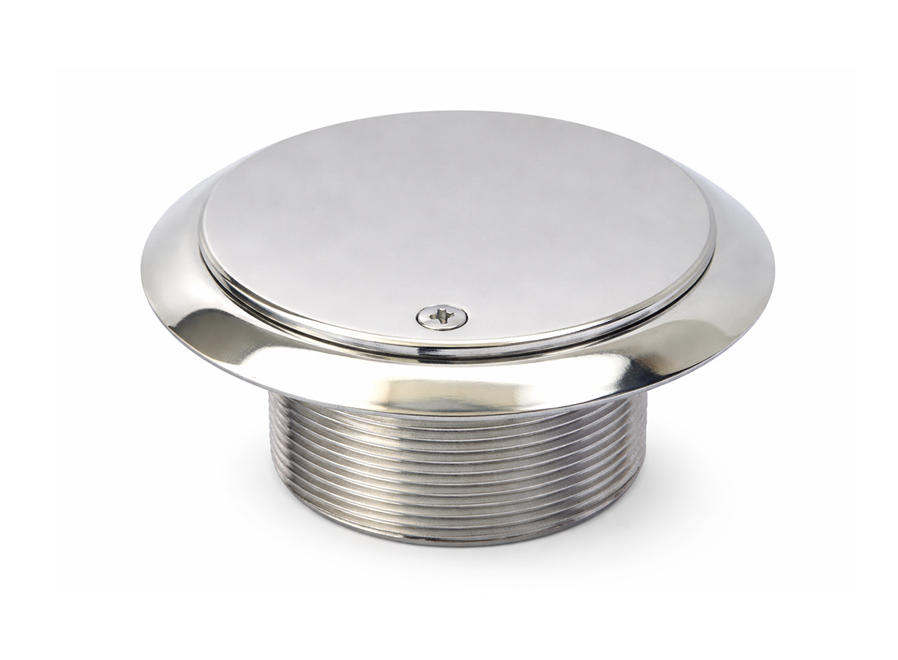

1 ½” & 2” Vacuum point (Suction point) in Stainless steel 316 material. Top cover is mirror polished (can offer brush finish on request) and rest of the body is in mill finish.

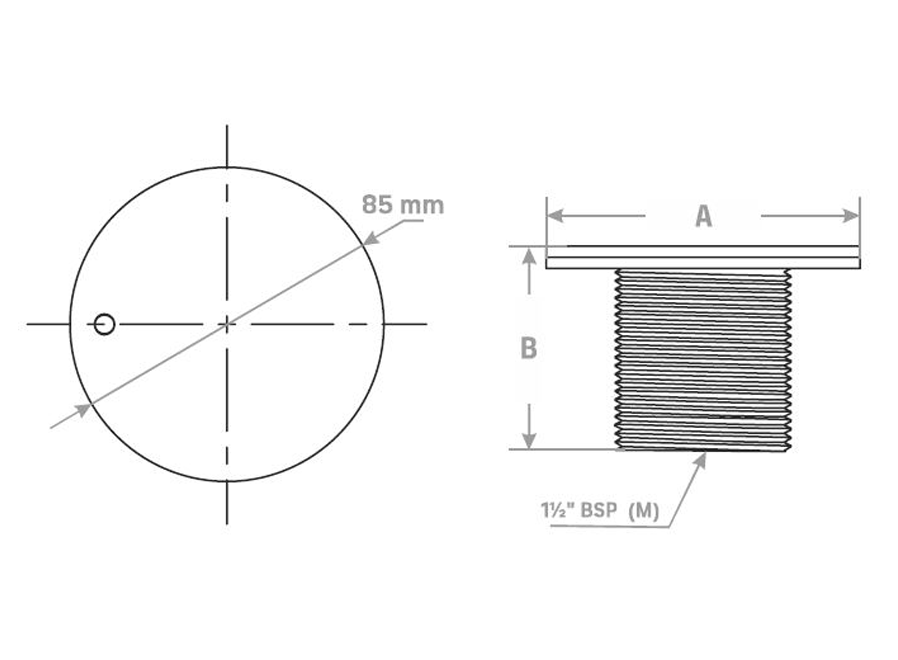

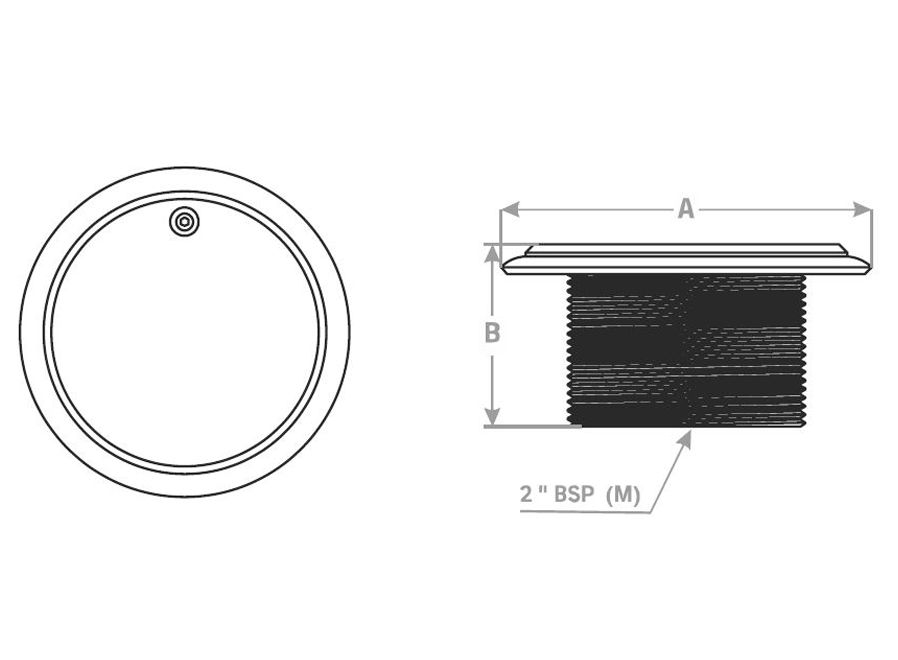

| Model No. | BSP Vacuum Point (Suction) | Dimension in mm | |
|---|---|---|---|
| A | B | ||
| VP 015 | 1 1/2" | 85 | 58 |
| VP 020 | 2" | 102 | 46 |
