Design /Application Data

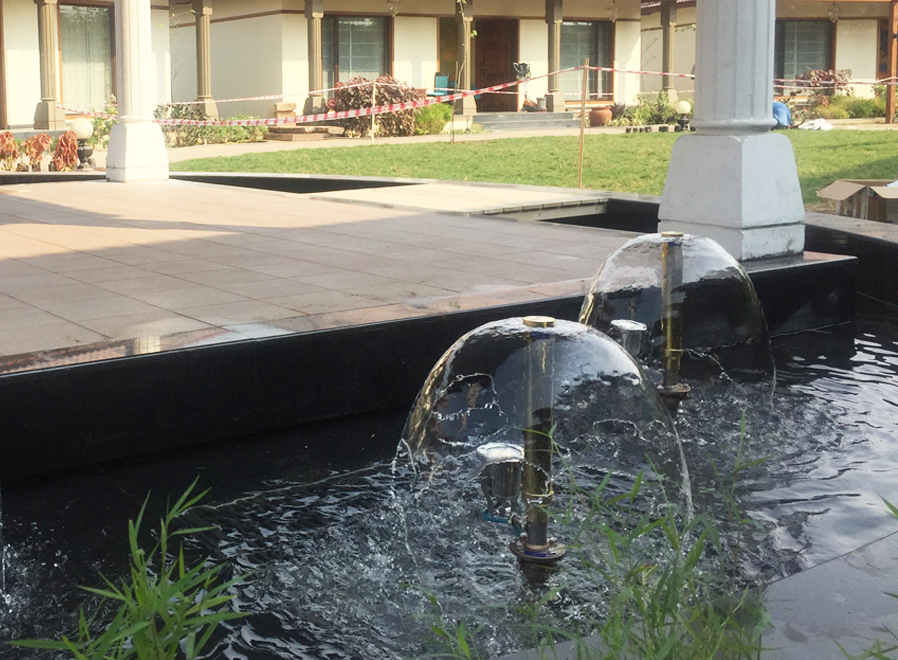

A clear of water in the shade of a bell. Minimum sound or splash. For silence wind free Locations in small and medium sized displays. Ideal in grouping of various heights. No constant Water Level required. Water supply must be nontroubled.
Specification Data
Material of construction is brass with adjustable top. Note: (for Optimum Effects)
• Requires non-turbulent water supply.
• Requires fine screening at pump.
• Ideal for indoor fountain use.
Operation Data
- Noise : Good
- Visibility : Good
- Splash : Low
- Wind Stability: Poor
- Aeration Quality : Poor
Hydraulic Data
| Model No |

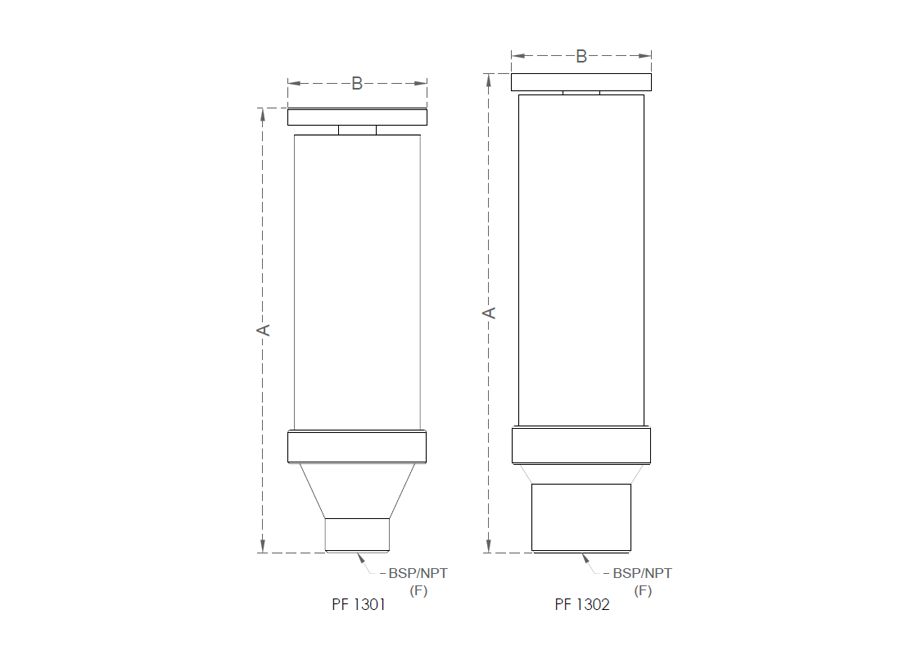

BSP/NPT | Dimension (mm) | Maximum Spread in cm | |||||
|---|---|---|---|---|---|---|---|---|
| A | B | 15 | 30 | 45 | 60 | |||

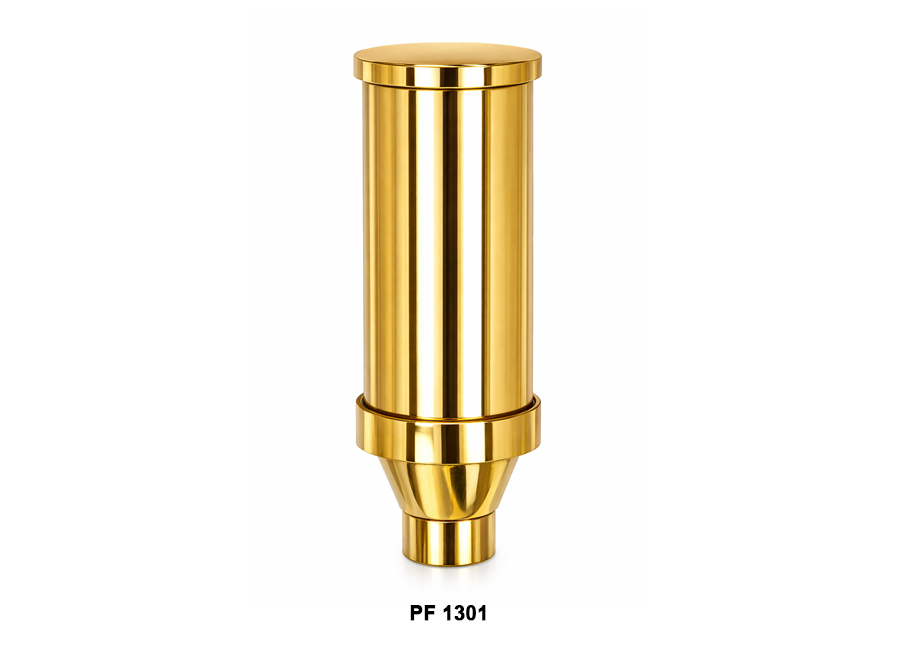

| PF 1301 | ½” | 179 | 56 | LPM | 15 | 24 | ||
| Head in Mtr | 0.70 | 1.00 | ||||||

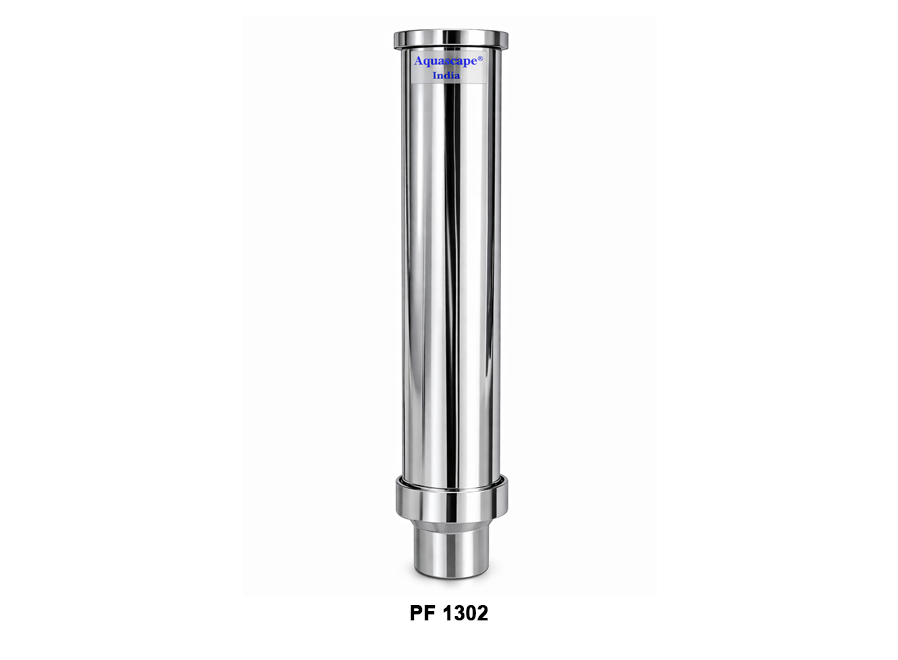

| PF 1302 | 1” | 360 | 56 | LPM | 16 | 24 | 30 | 34 |
| Head in Mtr | 0.70 | 1.00 | 1.30 | 1.60 | ||||
| PF 1302S | 1” | 179 | 56 | LPM | 16 | 24 | ||
| Head in Mtr | 0.70 | 1.00 | ||||||
