Design /Application Data

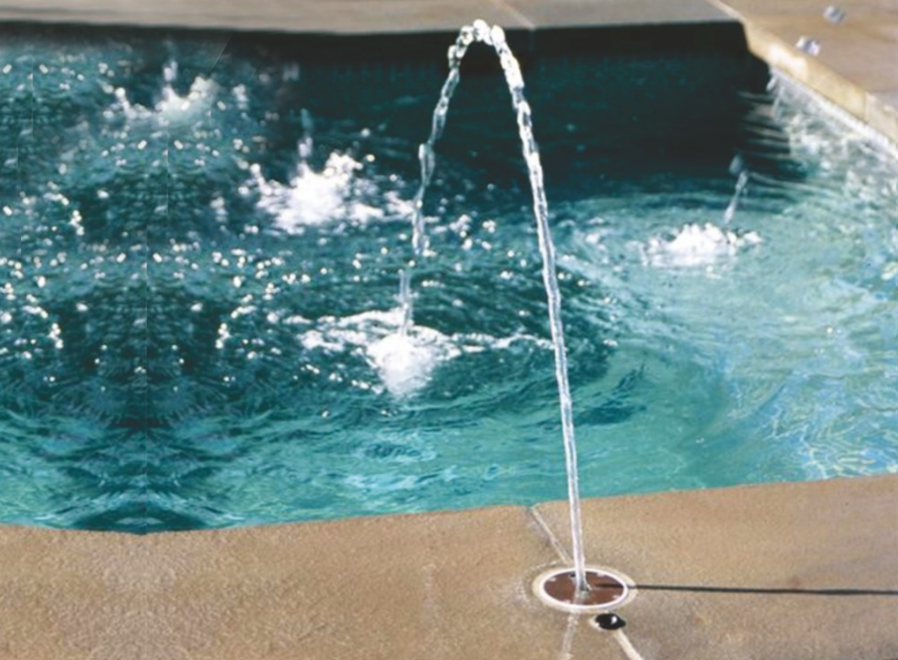

This directionally adjustable clear stream nozzle is designed for applications that required flush deck level mounting such as swimming pool decks and children public water play area.
Specification Data

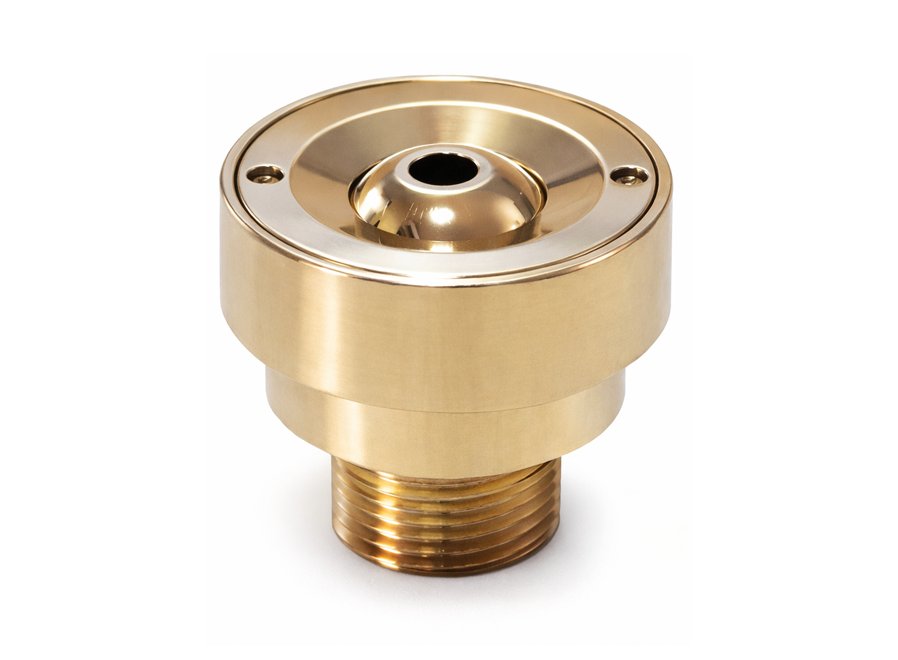

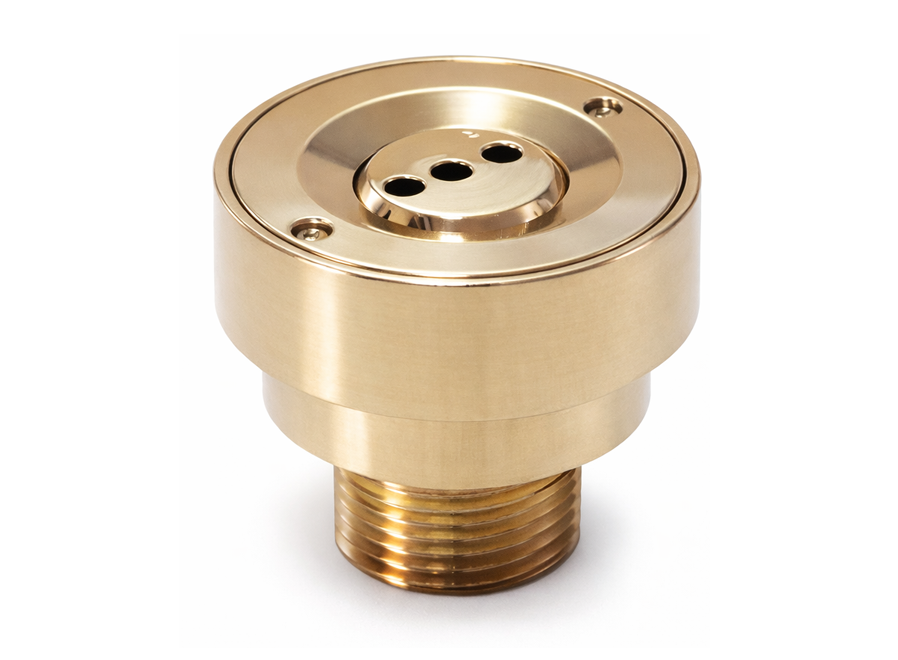

Material of construction is bronze.
Hydraulic Data

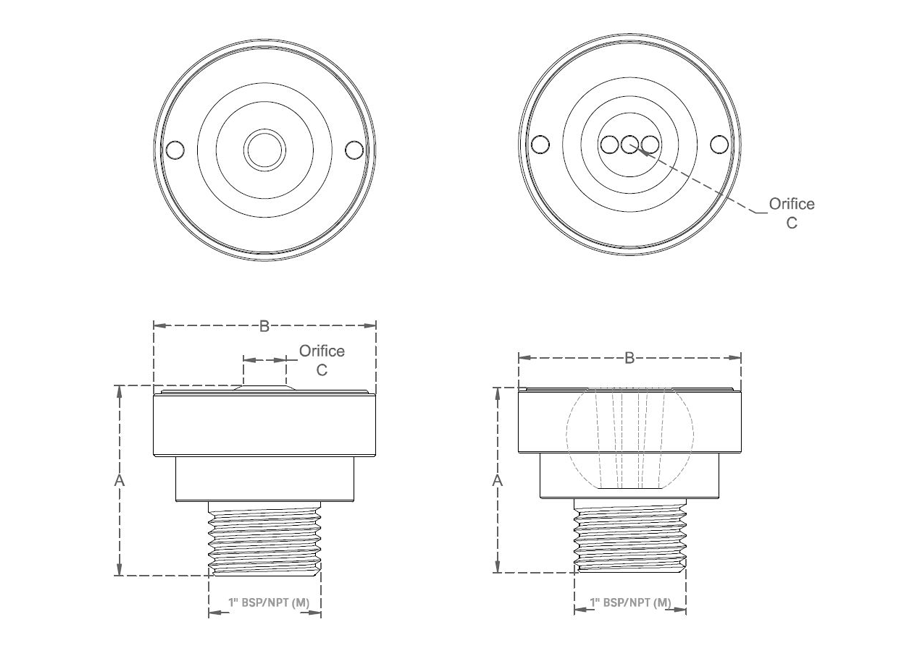

| Model No. | BSP/NPT | Orifice C (mm) | No of Orifice | Dimension | Stream Height in Meter | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A(mm) | B(mm) | 0.25 | 0.50 | 0.75 | 1.00 | 1.25 | 1.50 | 2.00 | 2.50 | 3.00 | 4.00 | |||||
| DJ25 | 1" | 10 | 1 | 54 | 66 | LPM | 13.80 | 18.38 | 21.87 | 24.88 | 27.57 | 30.03 | 34.47 | 38.48 | 42.19 | 48.90 |
| 5 | 3 | Head in Mtr | 0.30 | 0.60 | 0.90 | 1.20 | 1.51 | 1.81 | 2.42 | 3.03 | 3.64 | 4.88 | ||||
