Design /Application Data

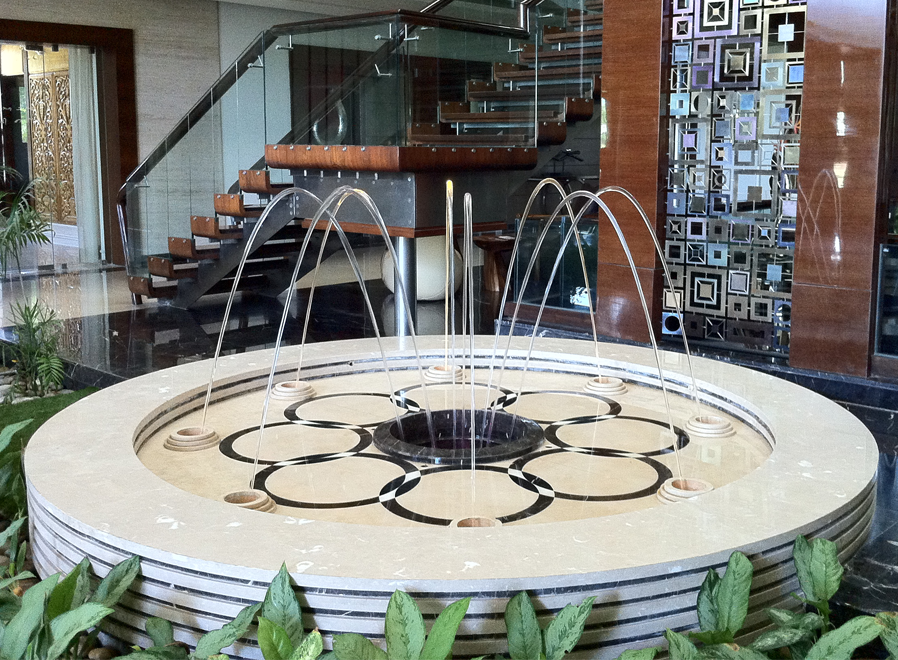

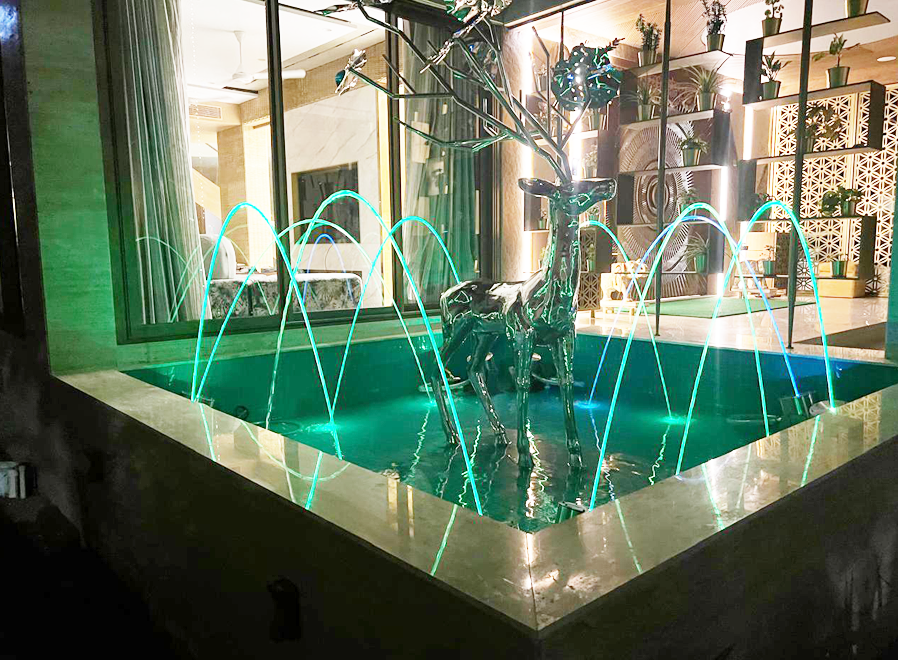

The Laminar Jet creates a crystal-clear, glass-like stream of water that adds elegance and precision to any fountain display. Designed for smooth flow and perfect arc formation, it delivers a stunning visual effect—especially when paired with LED lighting.
Specification Data

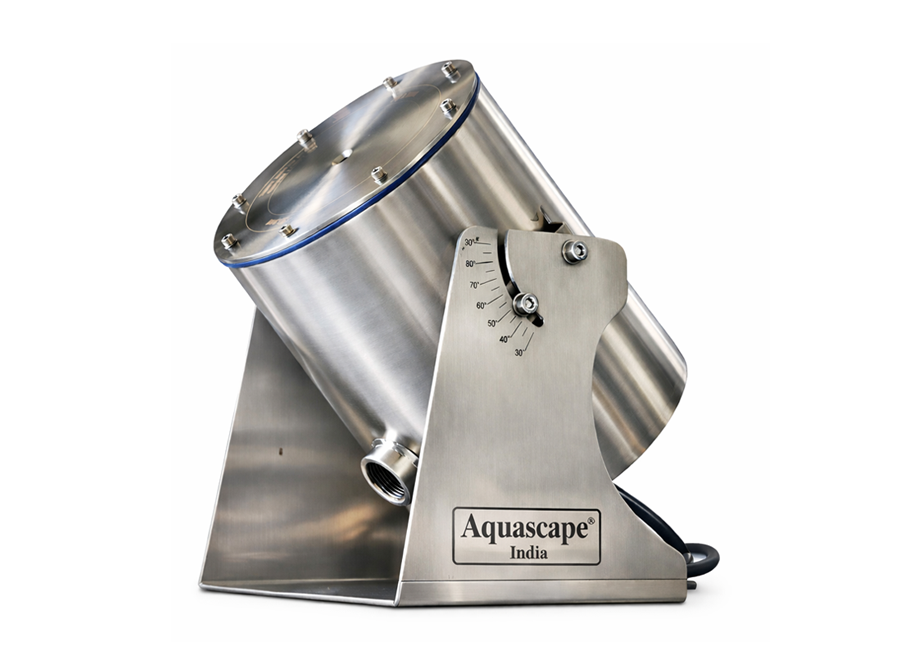

Material of construction is Stainless steel 316.
Lighting
12V DC X 5W RGB LED
Electrical Cable
RGB lighting: - H07RN-F - 4 core 0.75 sq/mm
Note:- Water quality should maintain as per below described parameter
- Hardness of water : 80 to 150 dH
- pH Value : 7.2 to 7.6
- Free Chlorine Maximum : 0.3mg/Liter
- Chloride contents : Max 250mg/Liter
- Dry residue Max : 50mg/Liter
- Water temperature : 5° to 35° C

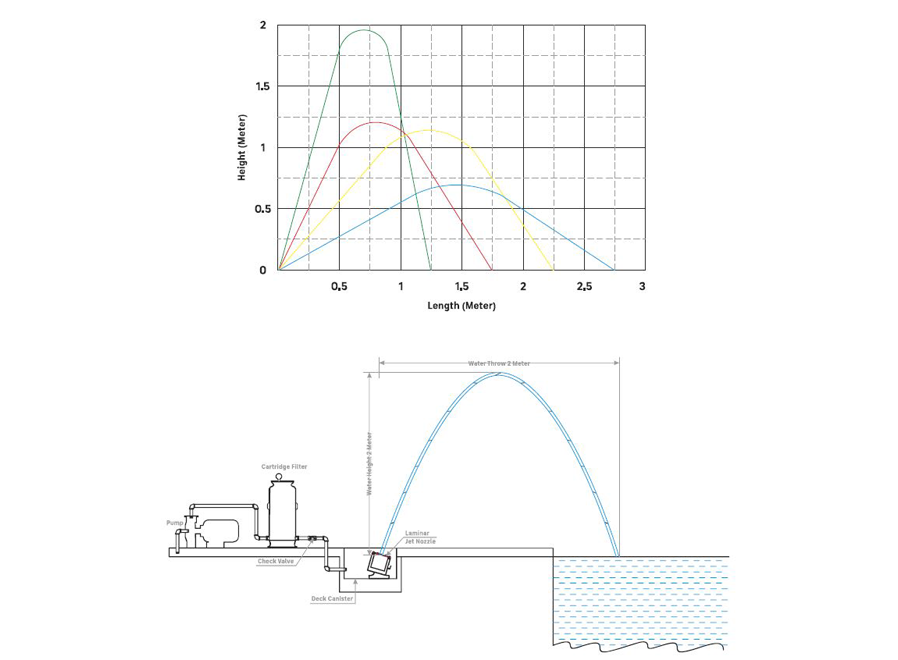

Benefit of Cartridge Filter :
Cartridge filter will be removed dust and turbulence from the water. Non-turbulence pressure is compulsory for laminar jet.
Hydraulic Data
| Model | Inlet | Orifice | Height in Meter | 0.50 | 1.00 | 1.50 | 2.00 | 2.50 |
|---|---|---|---|---|---|---|---|---|
| PF L108 | 1" BSP (F) | 10 mm | Throw in Mtr | 0.50 | 1.00 | 1.50 | 2.00 | 2.50 |
| LPM | 14 | 18 | 21 | 24 | 30 | |||
| Head in Meter | 1.00 | 1.50 | 2.00 | 2.50 | 3.00 |
