Design /Application Data

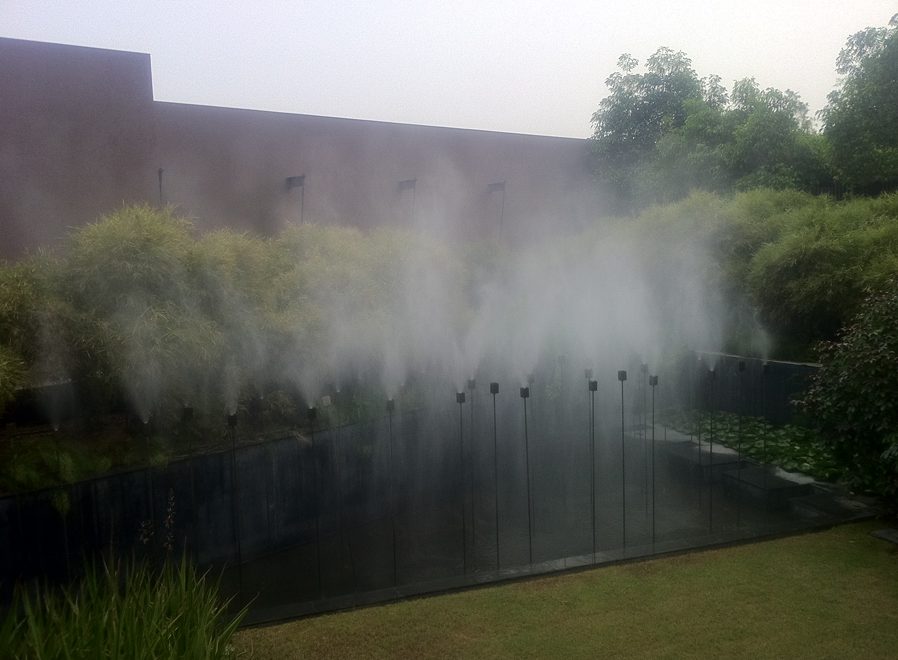

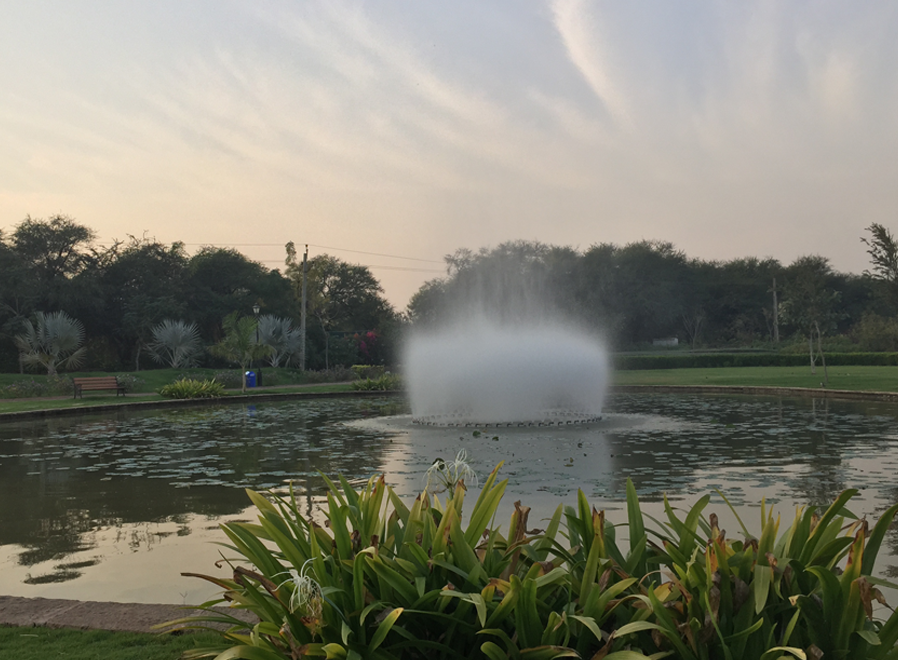

Aquascape Fog Jet is designed for low wind area. It's not to create great height, but rather large volume making it particularly suitable for architectural fountains.
Please bear in mind that when installed in outdoor fountains, due to the small weight of the droplet, the wind can easily "overflow" the water fountain; therefore, it should not be installed in wind area.
Specification Data

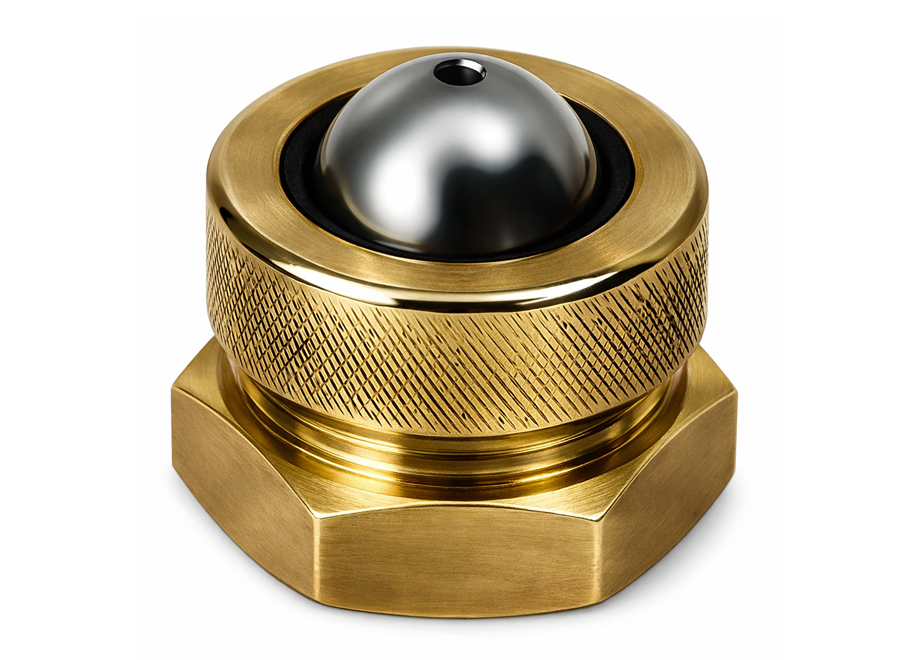

Material of construction is brass with Stainless steel cap.
Operation Data
- Noise : Poor
- Visibility : Good
- Splash : Good
- Wind Stability: Poor
- Aeration Quality : Good
Hydraulic Data
| Model No |

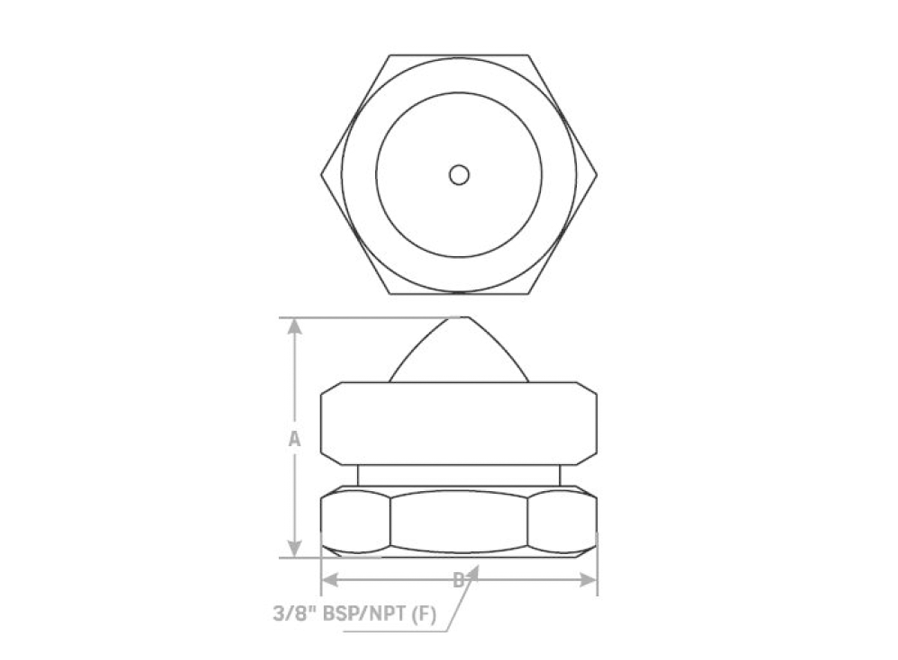

BSP/NPT | Orifice in MM | Dimension (mm) | Stream Height in Meter | |||||
|---|---|---|---|---|---|---|---|---|---|
| A | B | 0.50 | 1.00 | 1.50 | 2.00 | ||||
| PF 0105 | 3/8" | 2.75 | 35 | 35 | LPM | 4.40 | 5.70 | 7.50 | 9.60 |
| Head in Mtr | 1.80 | 3.50 | 5.00 | 6.00 | |||||
