Design /Application Data

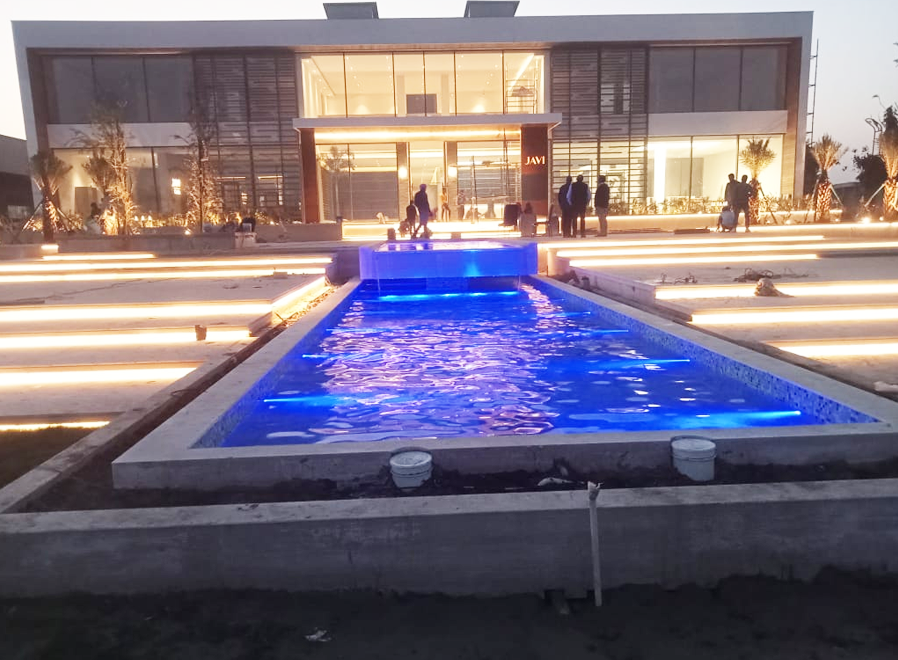

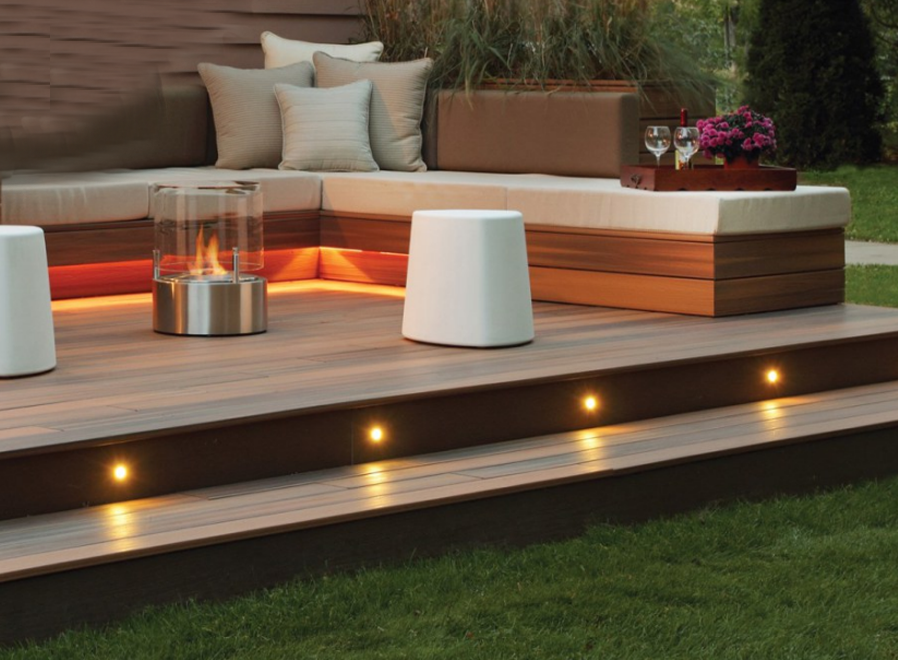

WMT Series Wall mounted LED light is suitable as spot light for fountains, pools, ponds, water gardens etc. Also, this light designed for step and brick light. It can be used in masonry and wood constructions. These fixtures are designed to safety illuminate stairways and walkways. For the effect shown below, the steps are gently illuminated leading up to the doorway to ensure safety.Light fixture completely realized in stainless steel with ABS plastic niche.
Application Data
WMT009 and WMT012 have an optional stand feature available. Both these models offer useful options in Wall Mounted as well as Stand Mounted fittings. The fittings come with an adjustable Stand which makes for easy positioning for the best effect. Stand is made up from SS316 Material.
Optional
With Stand is available in only WMT009 & WMT012.
Specification Data

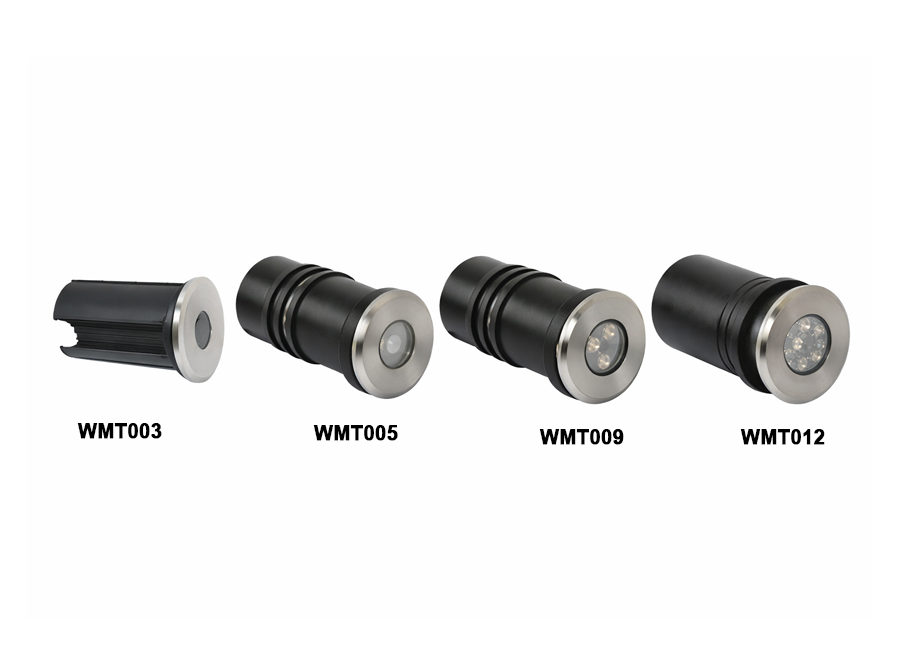

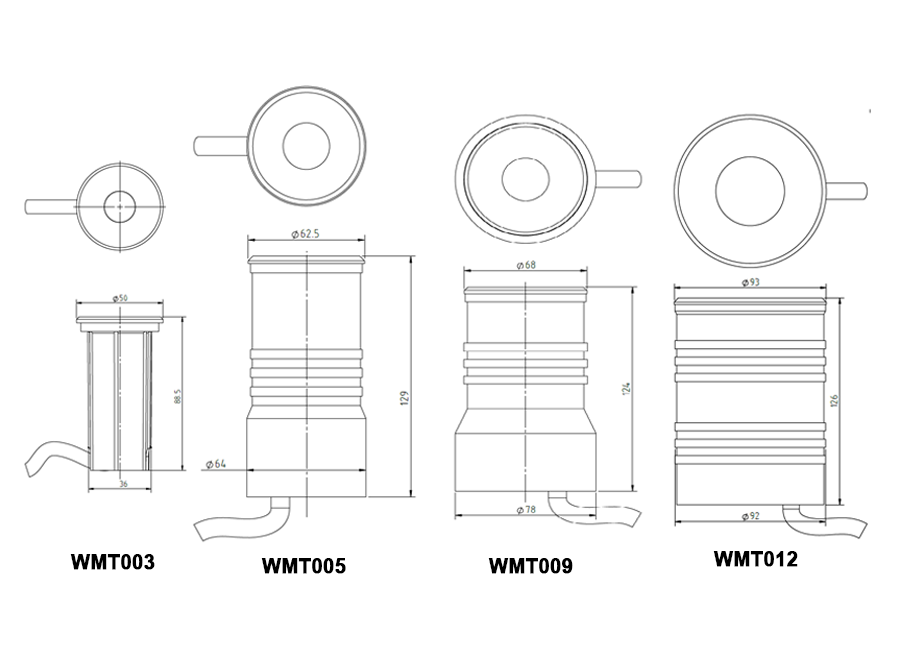

| Model | WMT003 | WMT005 | WMT009 | WMT012 |
|---|---|---|---|---|
| Voltage | 12V DC | 12V DC | 12V DC | 12V DC |
| Wattage | 3W | 5W | 9W | 12W |
| Light Colour | WARM WHITE, WHITE, BLUE | RGB, WARM WHITE | RGB, WARM WHITE, WHITE, BLUE | RGB, WARM WHITE, BLUE |
| Blub Type | LED | LED | LED | LED |
| Beam Angle | 10°/ 15° | 15° | 10°/ 15° | 10°/ 15° |
| Operating Temperature | -20 ~ + 50°C | -20 ~ + 50°C | -20 ~ + 50°C | -20 ~ + 50°C |
| Storage Condition | -40 ~+80°C, 10-95% RH | -40 ~+80°C, 10-95% RH | -40 ~+80°C, 10-95% RH | -40 ~+80°C, 10-95% RH |
| Cable | H07RN-FCABLE 2.5 MTR LENGTH | H07RN-FCABLE 2.5 MTR LENGTH | H07RN-FCABLE 2.5 MTR LENGTH | H07RN-FCABLE 2.5 MTR LENGTH |
| Protection Class | IP68 | IP68 | IP68 | IP68 |
| Casting | STAINLESS STEEL316 | STAINLESS STEEL316 | STAINLESS STEEL316 | STAINLESS STEEL316 |
Design /Application Data

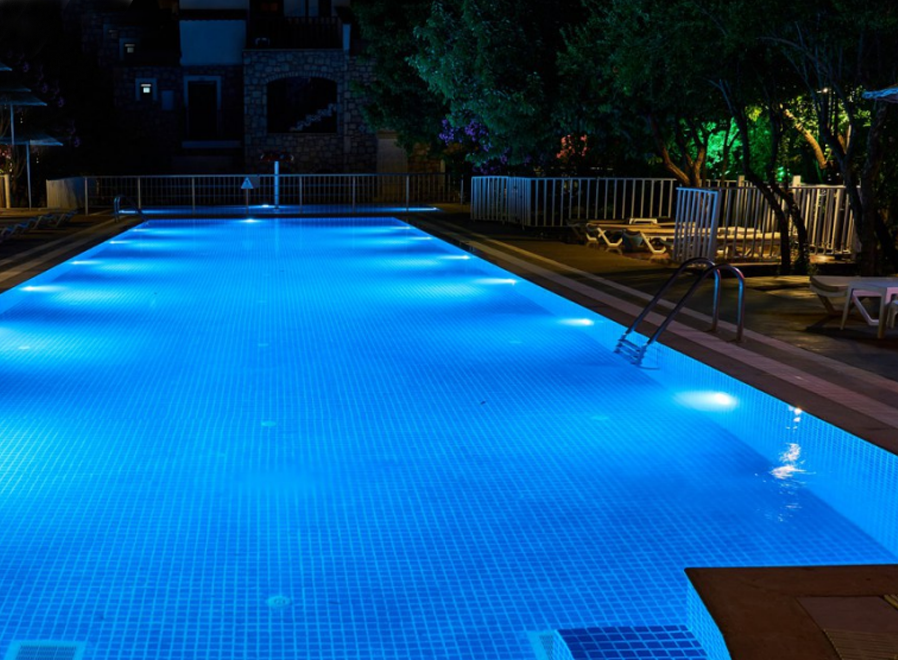

WMT Series Wall mounted LED light is suitable as spot light for fountains, pools, ponds, water gardens etc. Also, this light designed for step and brick light. It can be used in masonry and wood constructions. These fixtures are designed to safety illuminate stairways and walkways. For the effect shown below, the steps are gently illuminated leading up to the doorway to ensure safety.Light fixture completely realized in stainless steel with ABS plastic niche.
Hydraulic Data

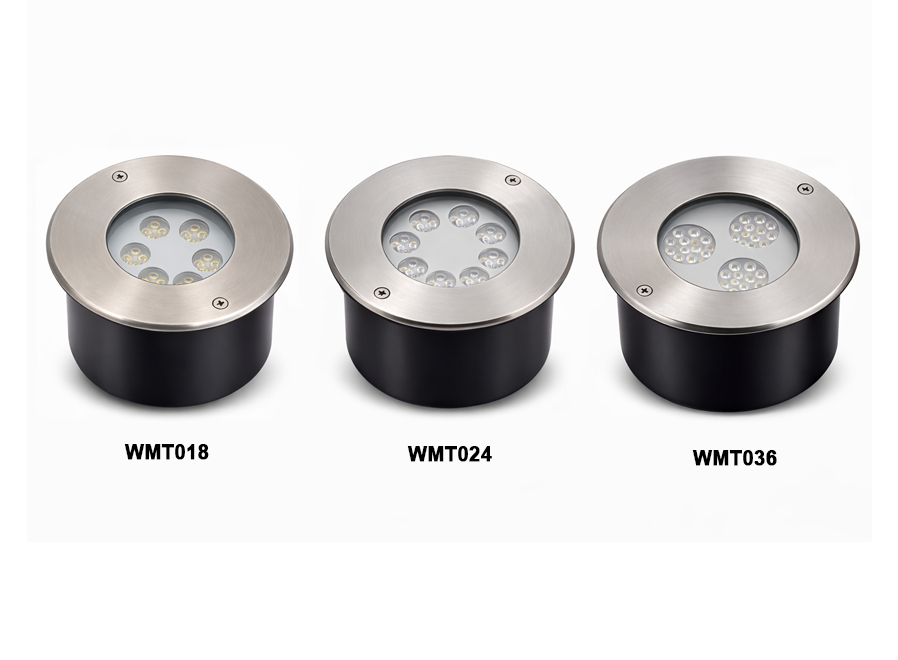

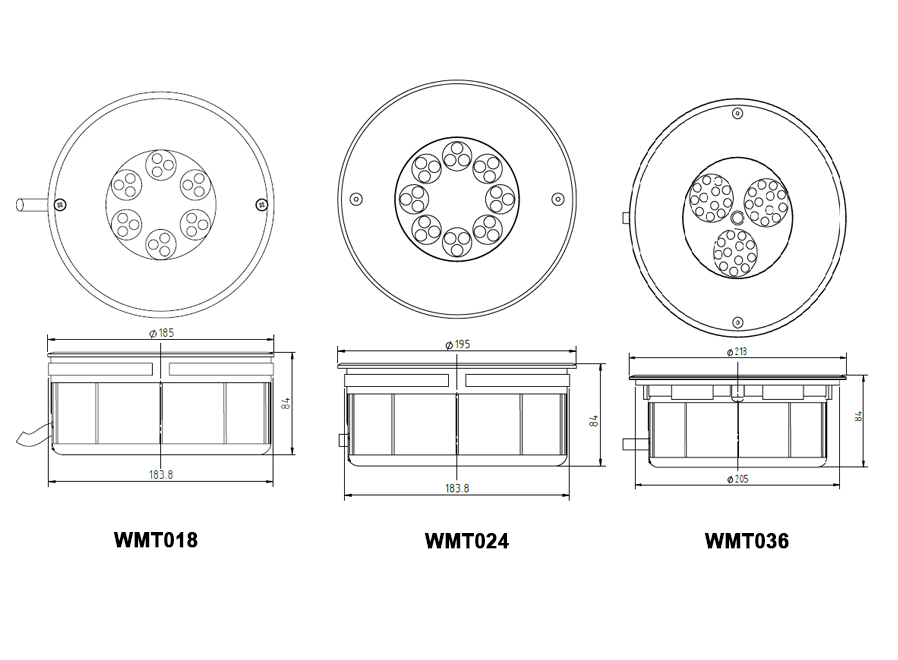

| Model | WMT018 | WMT024 | WMT036 |
|---|---|---|---|
| Voltage | 12V DC | 12V DC | 12V DC |
| Wattage | 18W | 24W | 36W |
| Light Colour | RGB, WARM WHITE | RGB, WARM WHITE | RGB, WARM WHITE |
| Blub Type | LED | LED | LED |
| Beam Angle | 15°/ 25° | 15°/ 25° | 15°/ 25° |
| Operating Temperature | -20 ~ + 50°C | -20 ~ + 50°C | -20 ~ + 50°C |
| Storage Condition | -40 ~+80°C, 10-95% RH | -40 ~+80°C, 10-95% RH | -40 ~+80°C, 10-95% RH |
| Cable | H07RN-FCABLE 2.5 MTR LENGTH | H07RN-FCABLE 2.5 MTR LENGTH | H07RN-FCABLE 2.5 MTR LENGTH |
| Protection Class | IP68 | IP68 | IP68 |
| Casting | STAINLESS STEEL316 | STAINLESS STEEL316 | STAINLESS STEEL316 |
