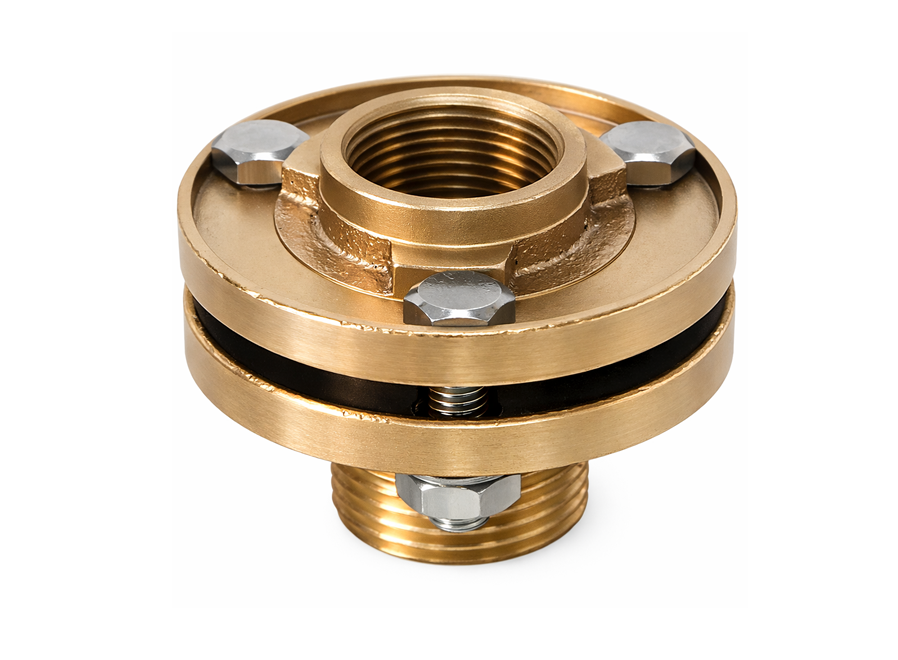

Adjustable Flanges are made from cast bronze and Stainless steel fitted. Adjustment Flanges are designed to permit limited directional adjustment of spray jets or nozzles that do not have swivel bases. Maximum 5 degree of adjustment from centre line is possible.
To Adjust
Loosen bolts on opposite side to intended direction of adjustment and tighten bolt in line of intended adjustment then lock all bolts.
Specification Data

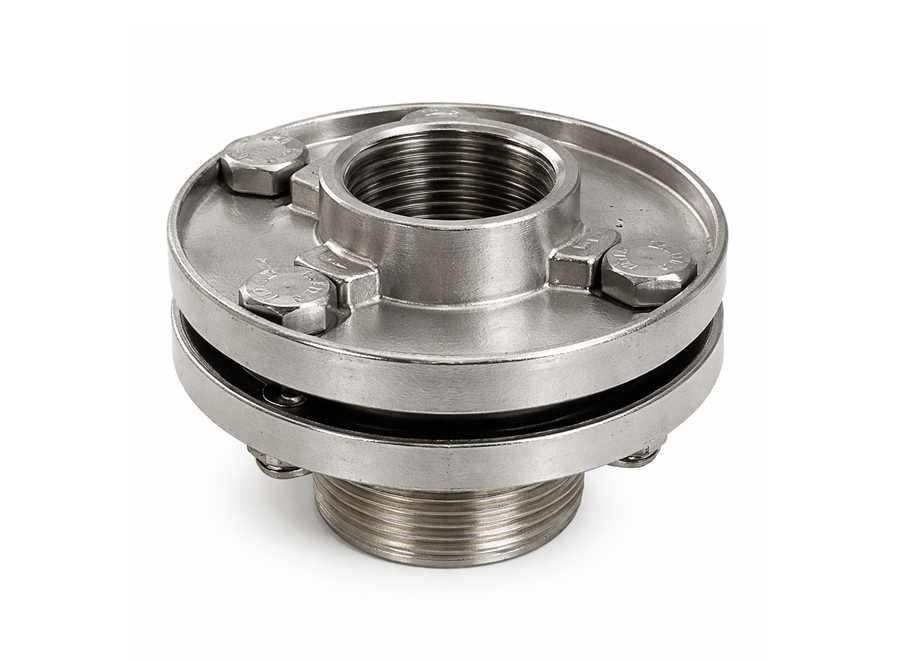

Material of construction is cast bronze & stainless steel 316 with teflon sealing and Stainless steel fasteners.

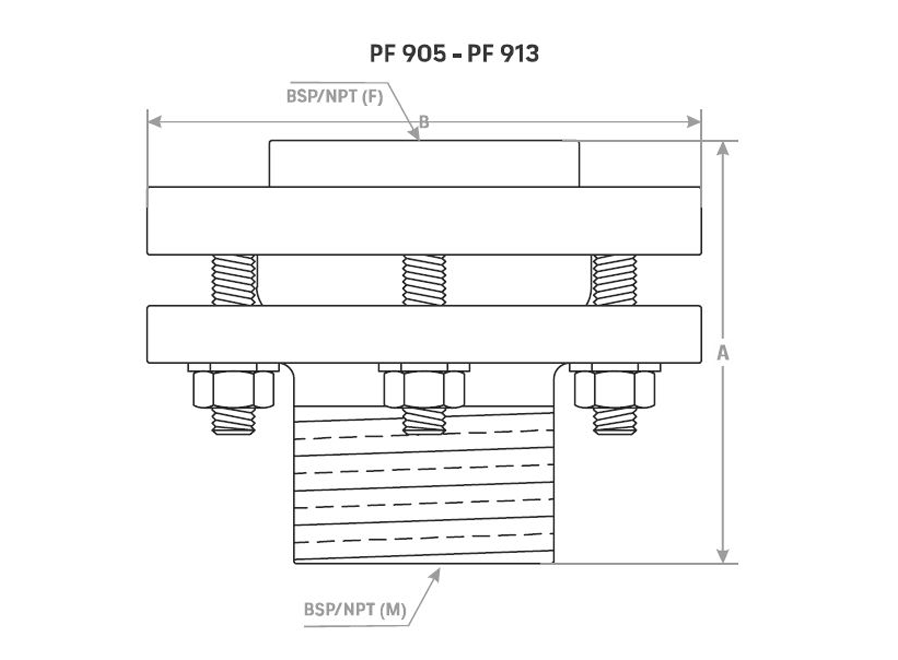

| Model No. | BSP/NPT | Dimension | |
|---|---|---|---|
| A (mm) | B (mm) | ||
| PF 905 | 1" | 61 | 84 |
| PF 907 | 1 1/2" | 77 | 102 |
| PF 908 | 2" | 80 | 119 |
| PF 909 | 2 1/2" | 80 | 130 |
| PF 912 | 3" | 83 | 162 |
| PF 913 | 4" | 87 | 186 |
