Design /Application Data

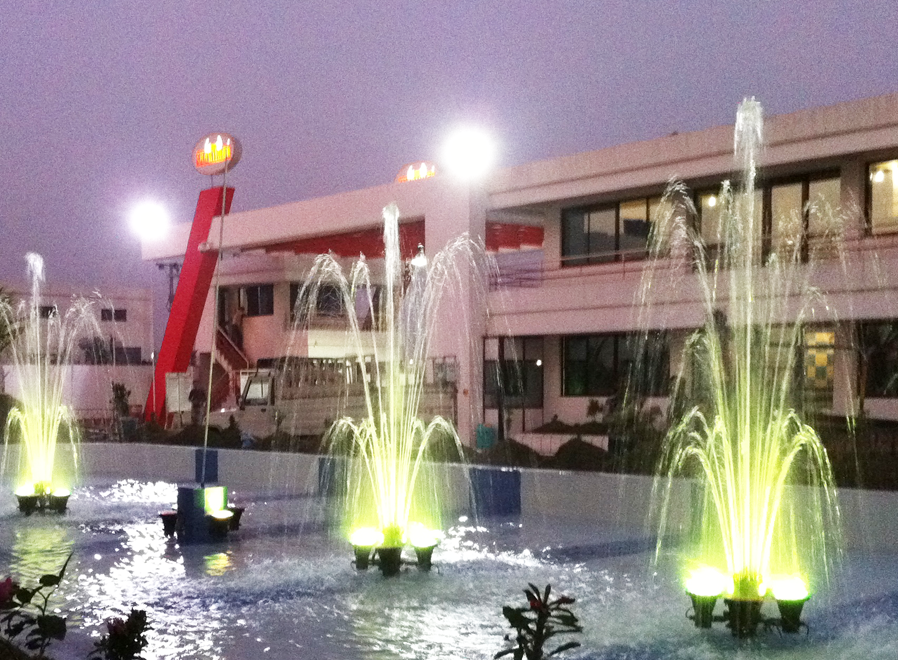

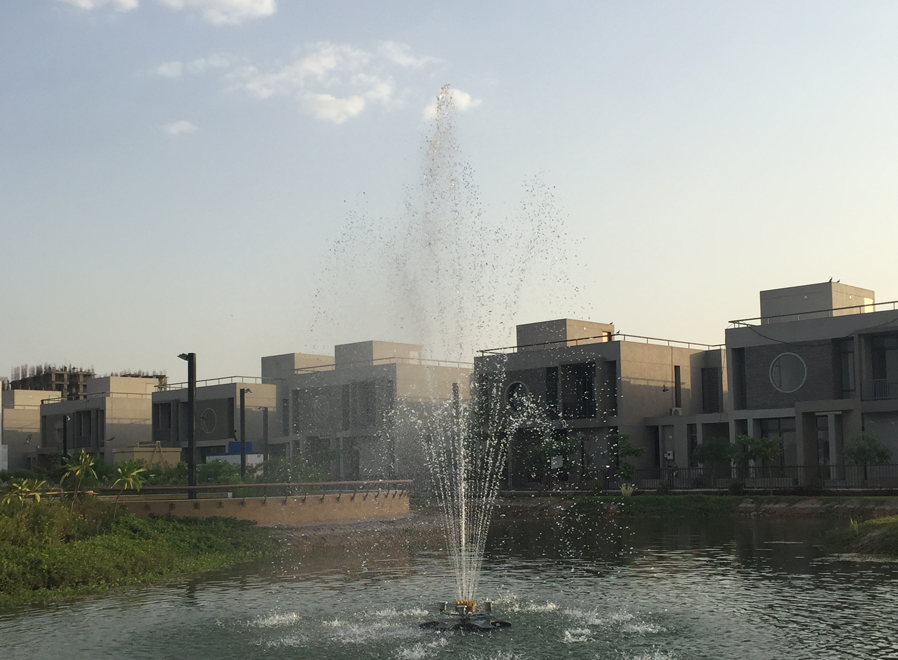

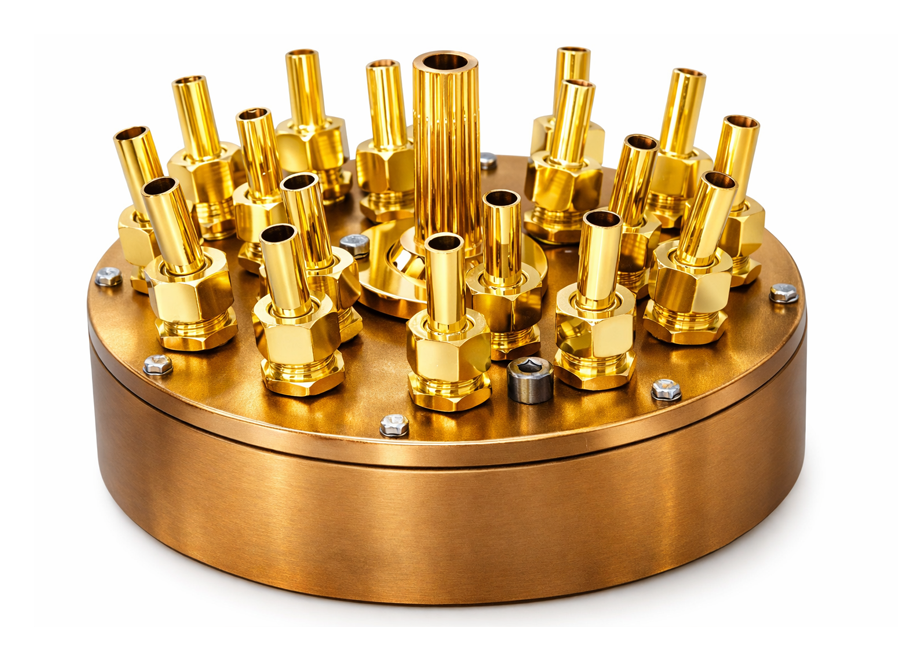

Achieve complete control over your fountain display with the PF 1100 Series Height & Diameter Adjustable Multi Jet Nozzle. Designed for precision, it allows easy adjustment of spray height and diameter to create customized water patterns. Its multi-jet configuration ensures smooth, uniform, and visually impressive effects, while the durable construction guarantees reliable performance in all installations. Ideal for dynamic architectural fountains, landscapes, and feature displays.
Specification Data
Material of construction is machined brass, bronze, stainless steel fitted with Neoprene seals.
Operation Data
- Noise : Moderate
- Visibility : Excellent
- Splash /Mist : Low to moderate
- Wind Stability: Good
- Aeration Quality : Poor
Speciality
No Water Level depended.
Hydraulic Data
| Model No |
BSP/ NPT | Nos of Jets |

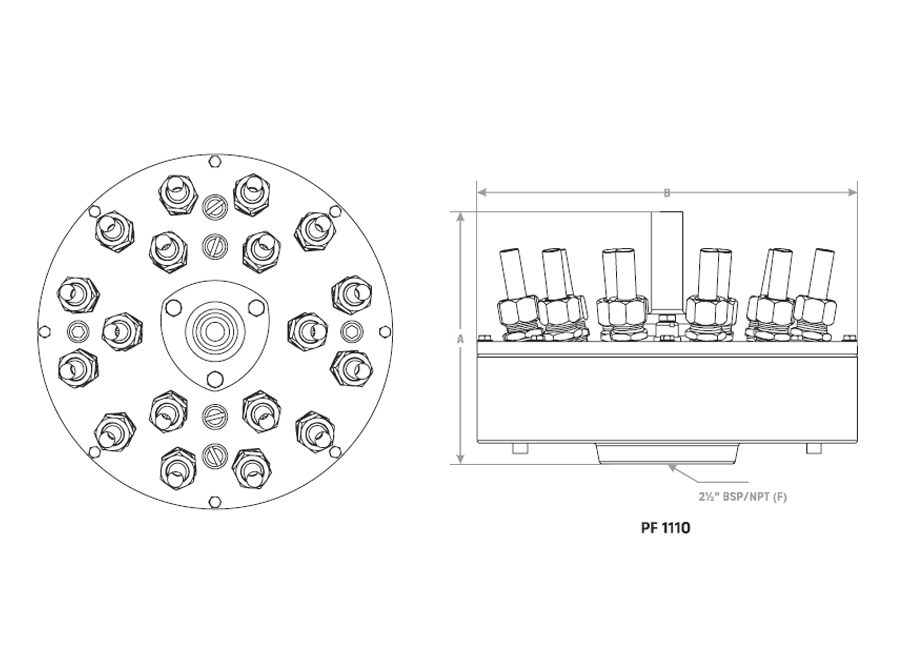

Dimension (mm) | Orifice in MM | Stream Height in Meter | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B | 2 | 3 | 4 | 5 | 6 | 8 | 10 | 12 | |||||
| PF 1110 | 2 ½” | 19 | 171 | 257 | 1@13.5 | LPM | 300 | 360 | 420 | 480 | 530 | 640 | 730 | 830 |
| 18@10.00 | Head in Mtr | 3.00 | 4.00 | 6.50 | 7.50 | 10.00 | 13.50 | 18.50 | 20.00 | |||||
