Design /Application Data

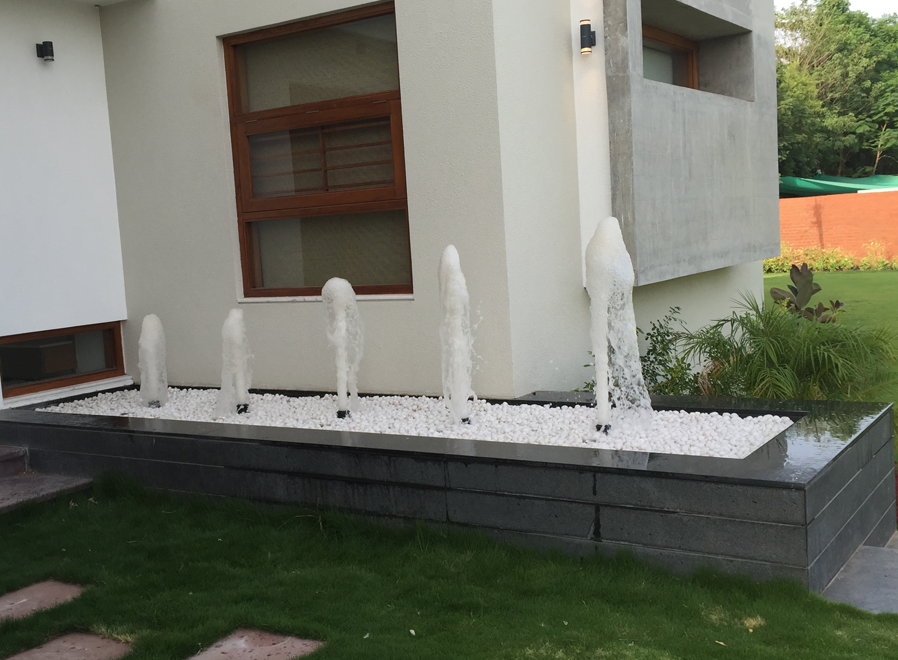

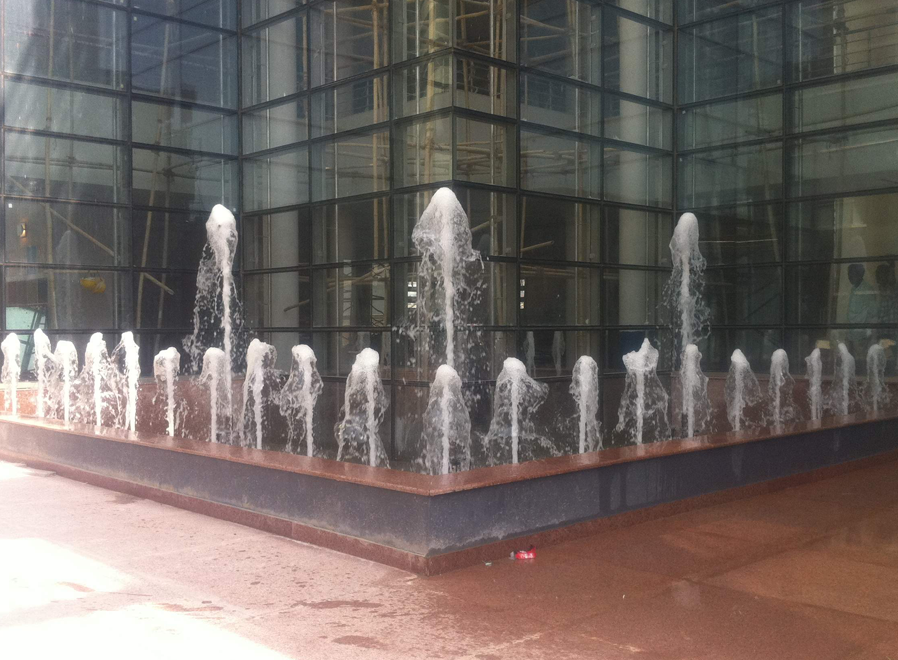

FOAM JETS PF 3400 Series Foam Effect Nozzles produce a dense, lively foam pattern that enhances the visual appeal of decorative fountains, recommended for small and medium displays in shallow pools. Made from SS 316, they offer excellent durability, corrosion resistance, and long-lasting performance. Ideal for water features requiring a bold yet elegant foam display.
Specification Data
• Material of construction is Stainless steel with internal air/water ration adjustment. • Exterior is Stainless steel.
Operation Data
- Noise : Moderate
- Visibility : Excellent
- Splash /Mist : Low
- Wind Stability: Good
- Aeration Quality : Good
Hydraulic Data
| Model No |

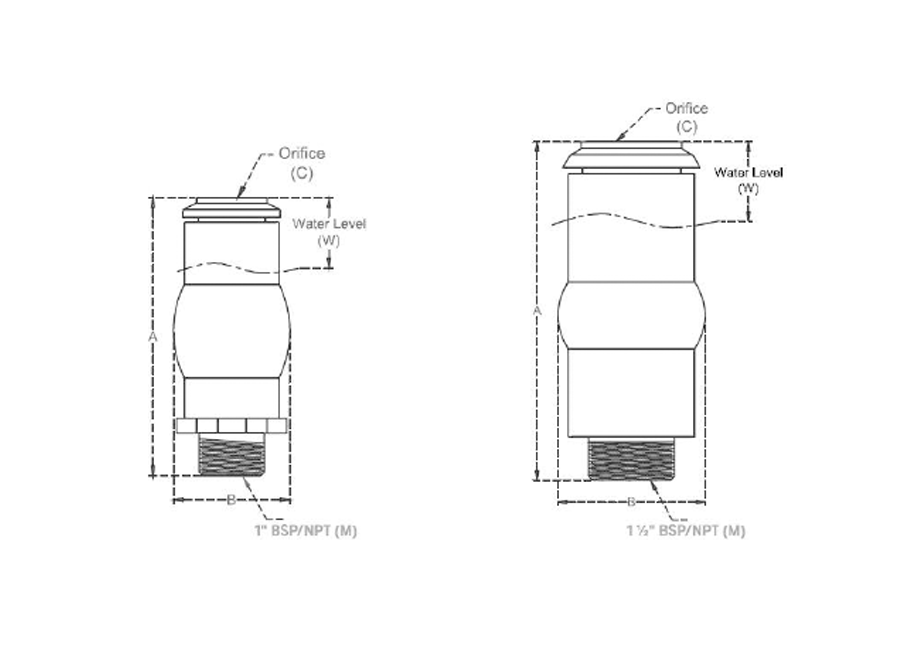

BSP/NPT | Dimension (mm) | Orifice in C (mm) | Water Level W (mm) | Stream Height in Meter | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B | 0.50 | 1.00 | 1.50 | 2.00 | 2.50 | 3.00 | 3.50 | 4.00 | 4.50 | 5.00 | |||||

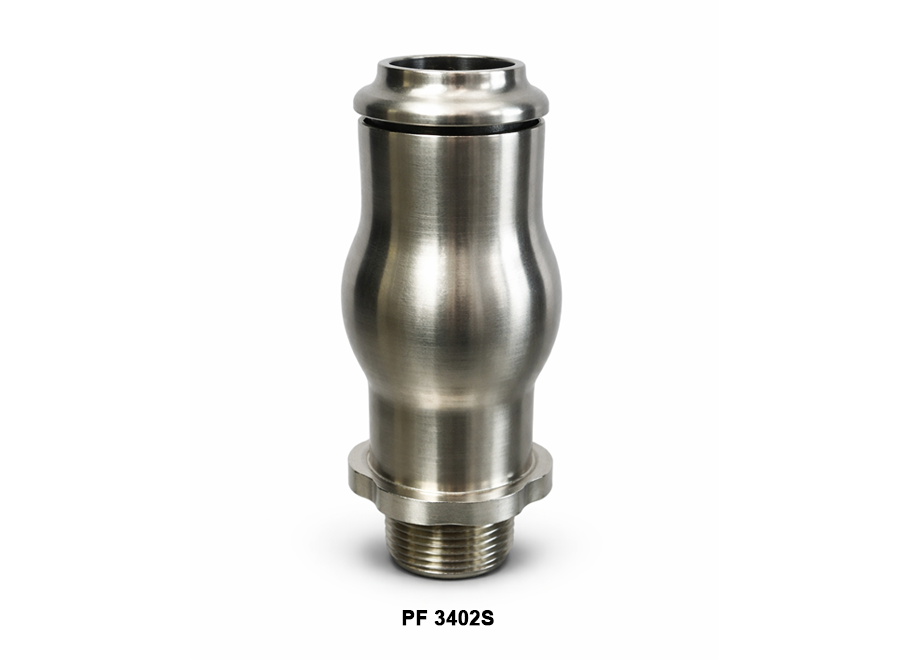

| PF 3402S | 1” | 145 | 60 | 32 | 38 | LPM | 55 | 80 | 97 | 111 | 123 | |||||
| Head in Mtr | 0.75 | 1.50 | 2.25 | 3.00 | 3.75 | |||||||||||

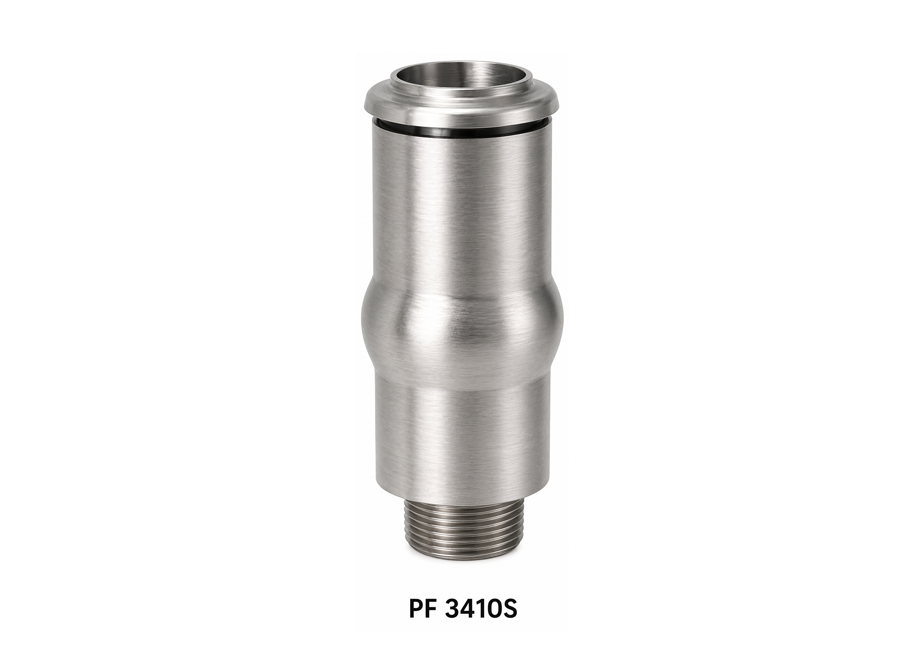

| PF 3410S | 1 1/2” | 190 | 82 | 50 | 45 | LPM | 125 | 176 | 217 | 252 | 282 | 310 | 335 | 360 | 381 | 402 |
| Head in Mtr | 0.75 | 1.50 | 2.25 | 3.00 | 3.75 | 4.50 | 5.25 | 6.00 | 6.75 | 7.50 | ||||||
