Design /Application Data

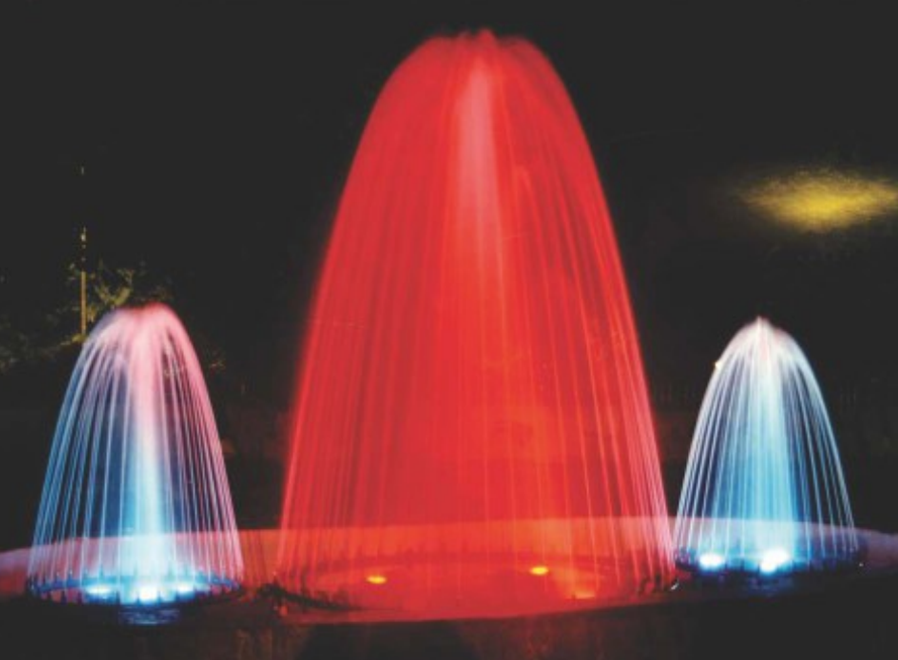

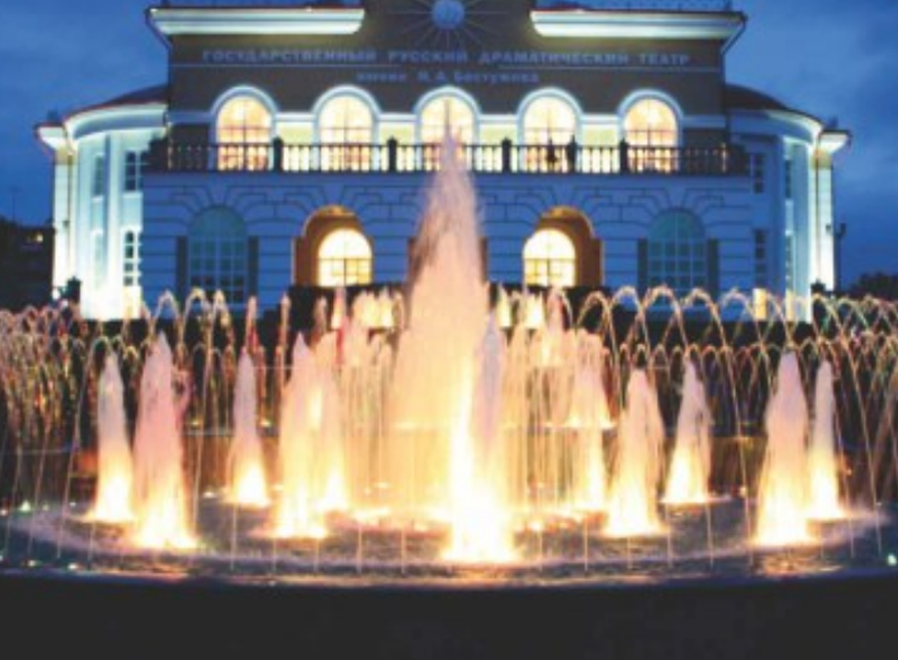

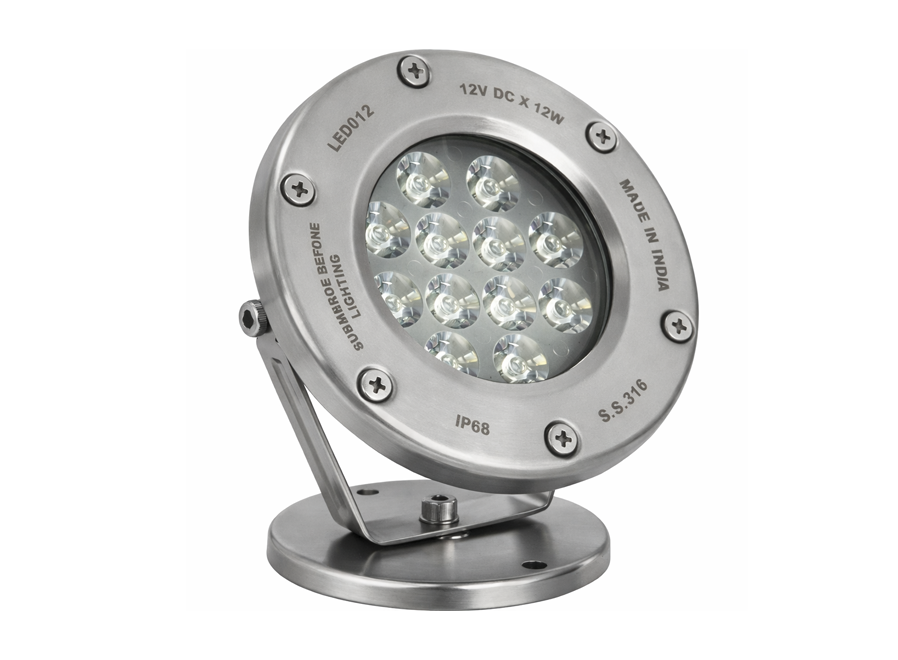

LED012 lights are ideal for any underwater Fountain & pool application. The fittings are IP68 submersible rated and are manufactured from Stainless Steel 316 for maximum performance and style. The fittings produce exceptional light output thanks to the powerful Power LED and are available in single colour or RGB options.

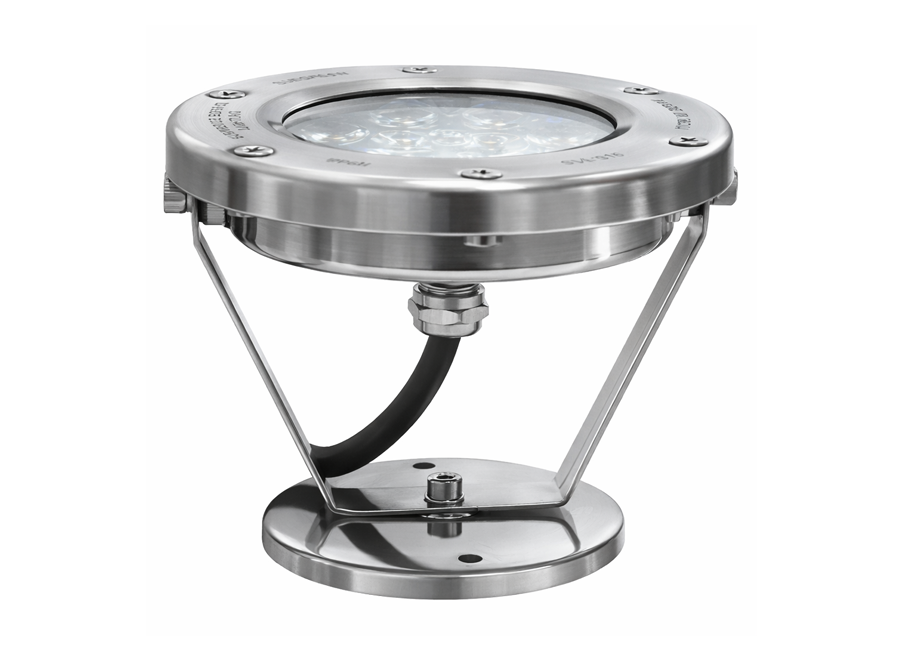

The fittings come with an adjustable Stand which makes for easy positioning for the best effect.
| Model | Voltage | Wattage | Colour Available |
|---|---|---|---|
| LED012 | 12V DC | 12W | RGB, WARM WHITE, WHITE, RED, GREEN, BLUE |
Specification Data
| Model | LED012 |
|---|---|
| Voltage | 12V DC |
| Wattage | 12W |
| Light Colour | RGB, WARM WHITE, WHITE, RED, GREEN, BLUE |
| Blub Type | LED |
| Beam Angle | 40°/ 25° |
| Dominant Wavelength (RGB) (nm/k) | R:620-630 G:520-535 B:465-485 |
| Dominant Wavelength (Warm White) (nm/k) | W/W :2800-3200K |
| Dominant Wavelength (White) (nm/k) | W:5700-8000k |
| Luminous Flux | 120 LM/W |
| Operating Temperature | -20 - + 50°C |
| Storage Condition | -40 -+80°C, 10-95% RH |
| Cable | H07RN-FCABLE 2.5 MTR LENGTH |
| Protection Class | IP68 |
| Casting | STAINLESS STEEL316 |
