Design /Application Data

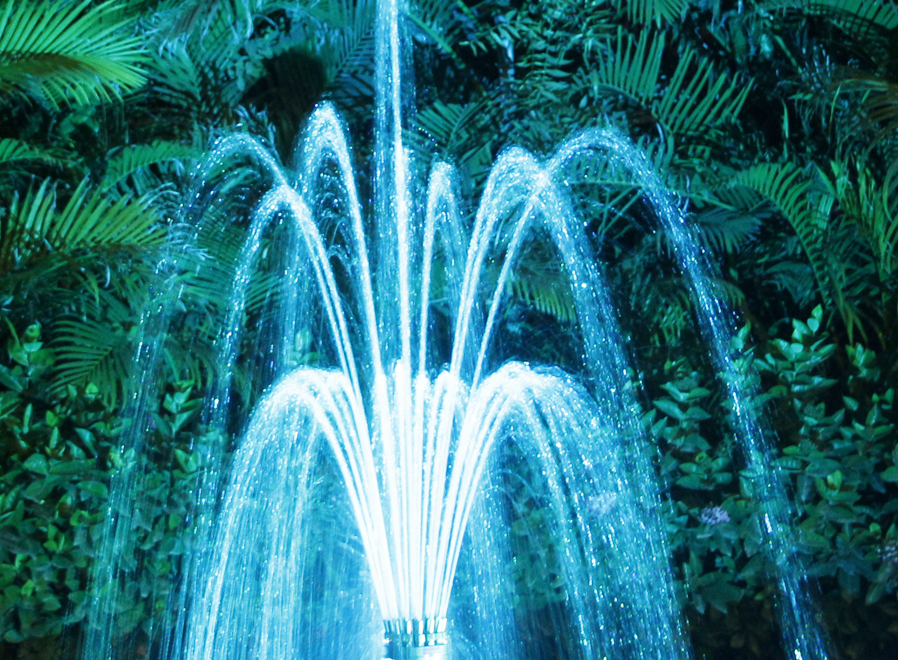

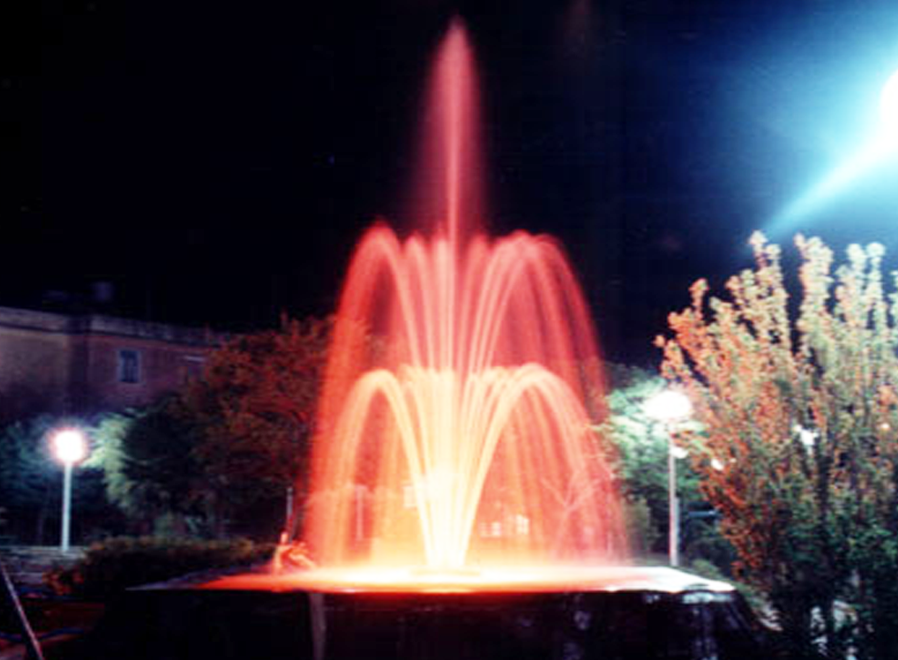

Experience dynamic water effects with the VULCAN Adjustable Jets PF 1100 Series. Designed for precision and versatility, these multi-jet nozzles allow seamless adjustment of spray angles and patterns, delivering smooth, uniform, and visually striking fountain displays. Built with durable materials and engineered for performance, they ensure consistent flow, easy installation, and long-lasting reliability—perfect for architectural fountains, landscape features, and premium water shows.
Specification Data
Material of construction is cast bronze.
Operation Data
- Noise : Low
- Visibility : Moderate
- Splash /Mist : Poor
- Wind Stability: Good
- Aeration Quality : Poor
Speciality
Removable cap for easy cleaning.
No Water Level depended.
Hydraulic Data
| Model No |
BSP/ NPT | Nos of Jets |

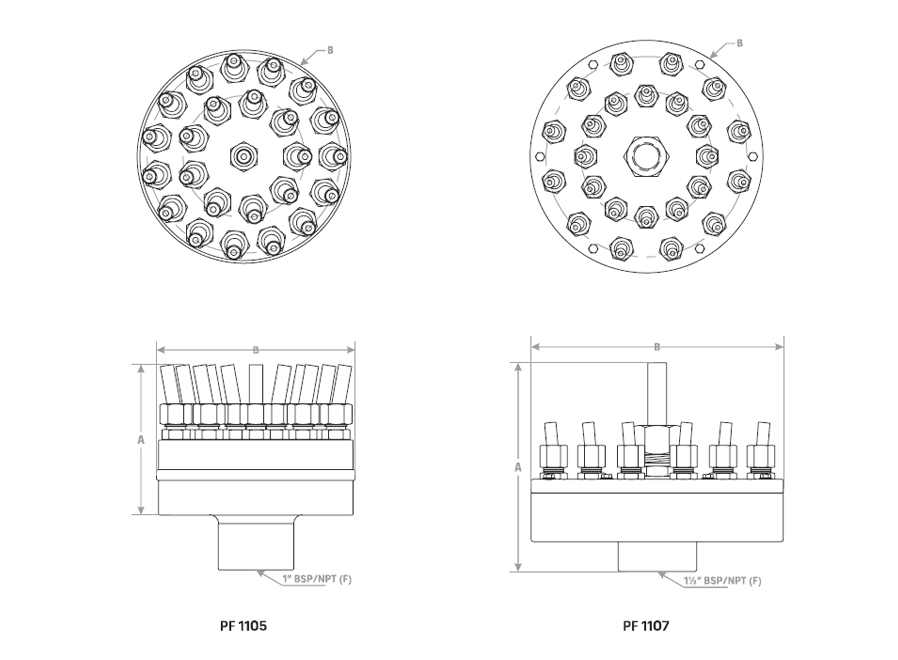

Dimension (mm) | Orifice in MM | Stream Height in Meter | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B | 1.00 | 1.50 | 2.00 | 2.50 | 3.00 | 3.50 | 4.00 | |||||

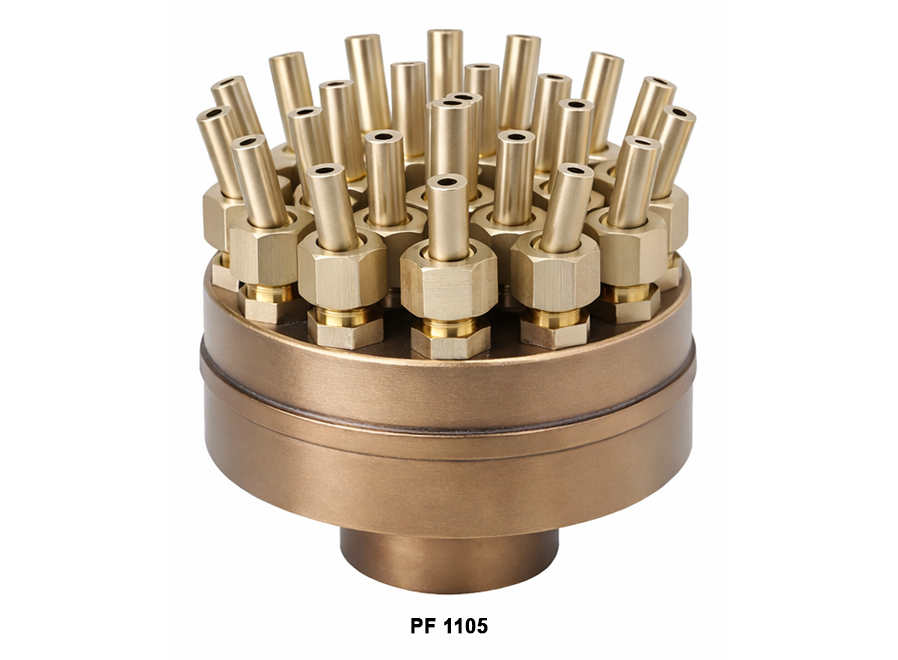

| PF 1105 | 1” | 25 | 115 | 114 | 1@4.00 | LPM | 70 | 80 | 95 | 110 | 121 | ||
| 24@3.00 | Head in Mtr | 1.50 | 2.00 | 2.60 | 3.25 | 4.00 | |||||||

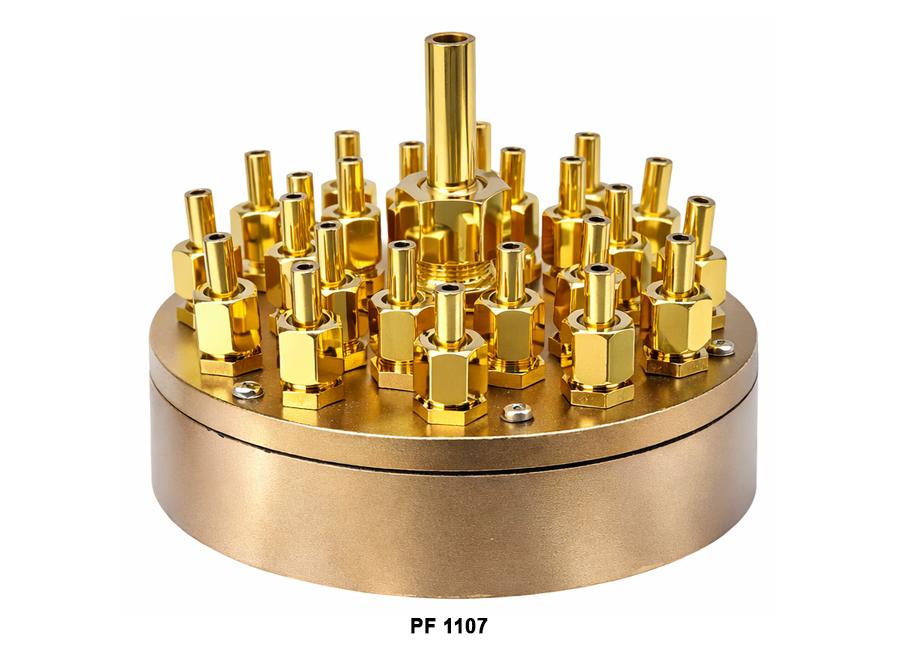

| PF 1107 | 1½” | 25 | 171 | 202 | 1@10.00 | LPM | 100 | 120 | 135 | 150 | 165 | 185 | 190 |
| 24@4.75 | Head in Mtr | 1.50 | 2.00 | 2.60 | 3.25 | 4.00 | 4.50 | 5.20 | |||||
