Design /Application Data

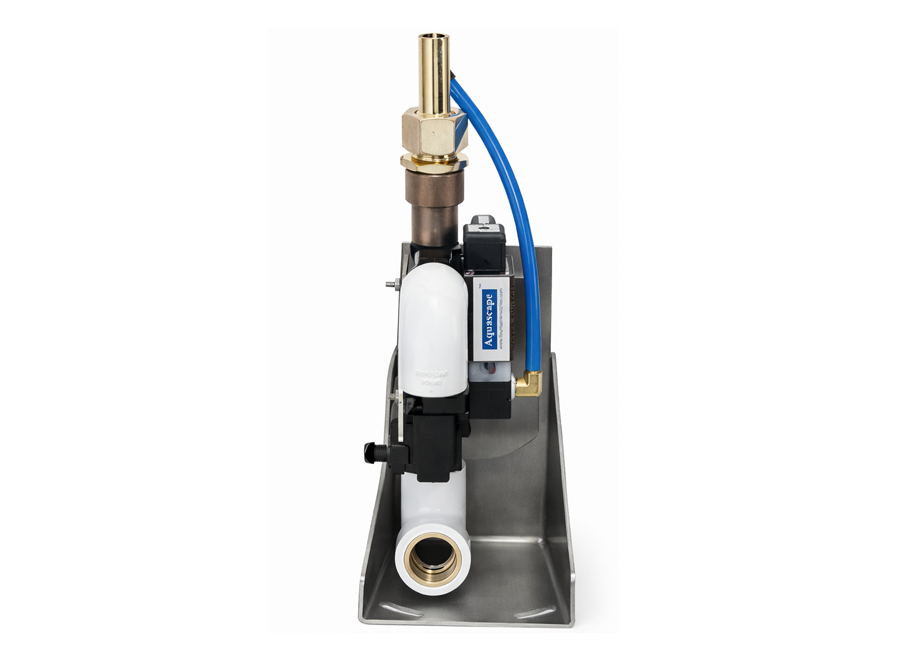

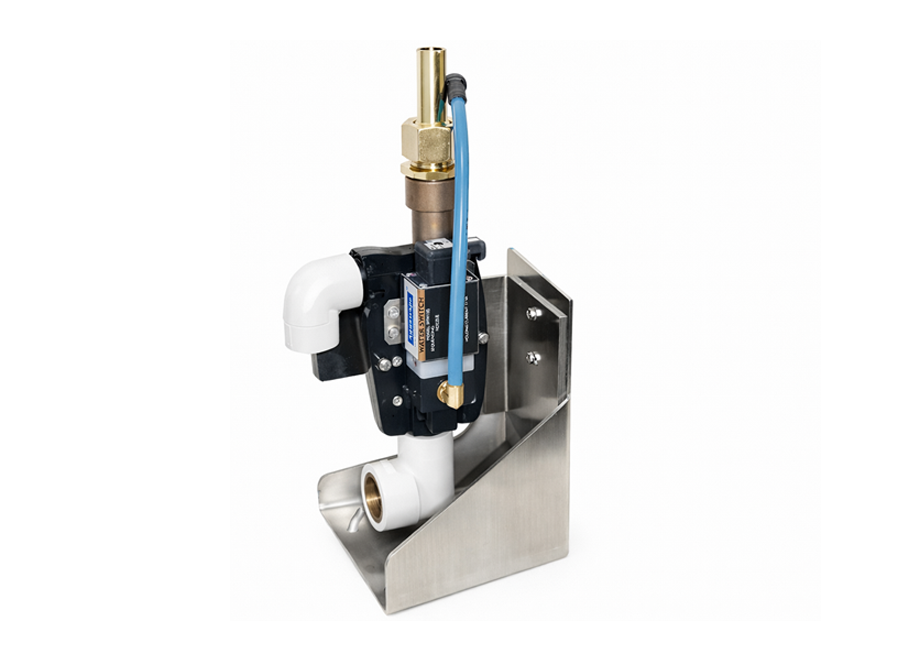

The Aquascape Stand Mounted Water switch is water level independent sequencing nozzle. The nozzle produces programmer effect at high switching speed, when receiving signal from PLC it can produce wide verity of geometric patterns. Varying height can be produced using a VFD pump.
Design /Application Data
• Construction of the nozzle is plastic and Stainless Steel.
• 24V AC signal and common for sequencing device 5W non-polarized coil. Inrush current 20V, holding current 11V.
• Can be adjust up to 5° from the centre line Spray.
Solenoid Valve
| Voltage | Wattage | Inrush Current | Holding Current |
|---|---|---|---|
| 24V AC | 5W | 20 VA | 11VA |
Hydraulic Data
| Model | BSP (Inlet) | Spray Height in Meter | ||||||
|---|---|---|---|---|---|---|---|---|
| 1.00 | 1.50 | 2.00 | 2.50 | 3.00 | 4.00 | |||
| SMW100 | 1" | LPM | 35 | 50 | 60 | 70 | 73 | 81 |
| Head in Meter | 6.50 | 11.00 | 17.00 | 21.50 | 23.00 | 25.00 | ||
