Design /Application Data
Our high-buoyancy flotation devices are designed to keep fountain nozzles, floating components and lighting systems perfectly stable on water surfaces. Manufactured from durable, corrosion-resistant materials, they ensure smooth and reliable operation even under fluctuating Water Levels.
Nozzles within the same pump power range can be easily exchanged, allowing a wide variety of visual effects and fountain displays. Backed by extensive experience in this field, we deliver dependable products that offer superior value and long-term performance.

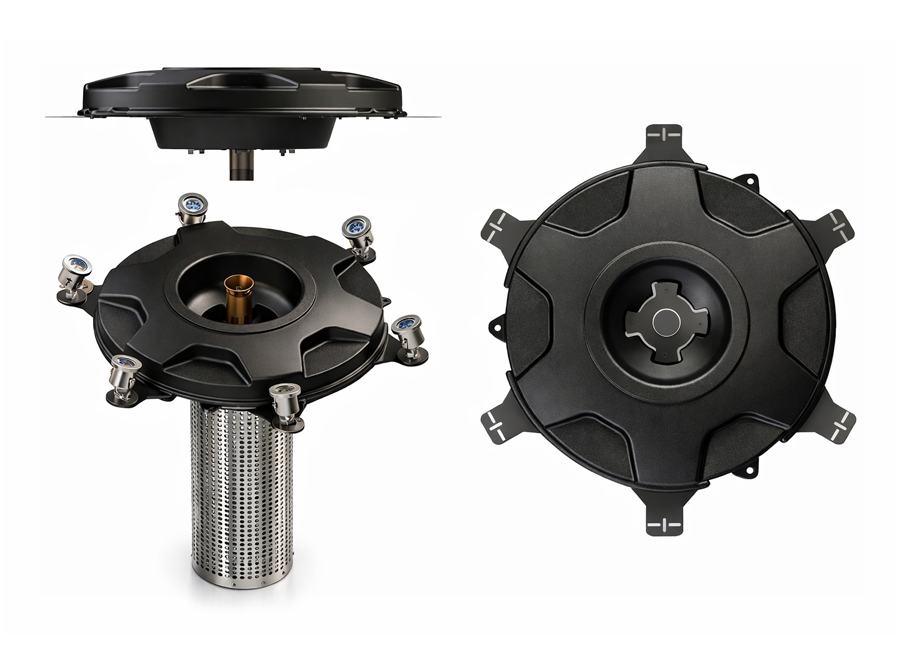

With a wide selection of spray patterns and lighting configurations, our product range combines attractive aesthetics with practical functionality. The PU foam–filled LDPE flotation units feature a low-profile black design for discreet installation.
Most models are designed to operate in water depths of up to 48 inches, while models rated at 5 HP and above can operate in depths up to 60 inches. Hand-adjustable control valves and adjustable swivel nozzles on many models enable a single fountain to produce multiple spray patterns and adapt easily to smaller lakes or changing site requirements.
- Foamed float for stability and noise reduction.
- Optional various different nozzle patterns with 2 ½ “ & 4" standard thread.
- Stainless steel pump basket.
- Optional lighting sets are available.
Hydraulic Data

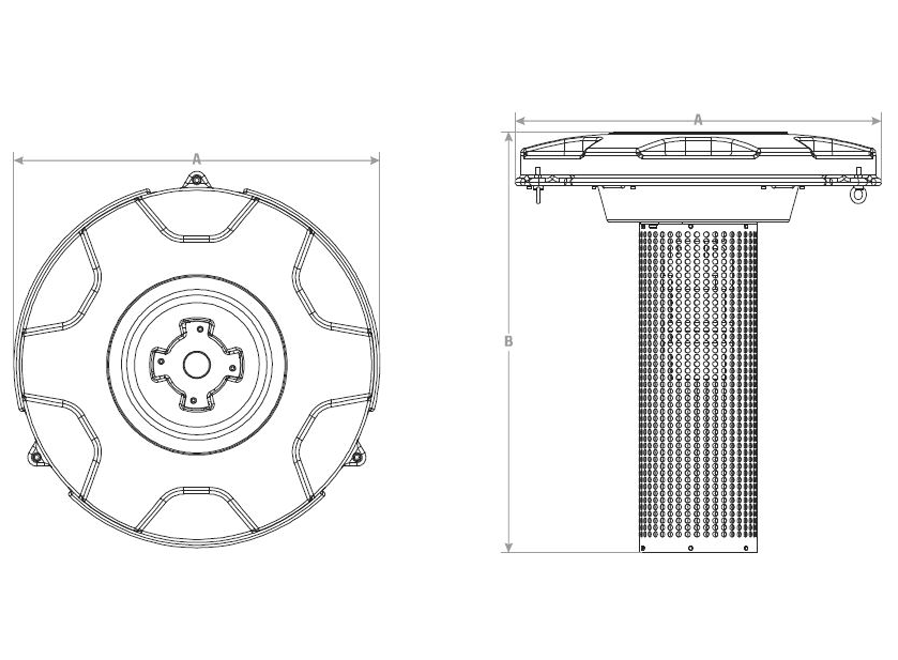

| Model No. | Floater Dia in Mtr. | Dimension | Minimum Water Depth in Mtr | Connection Size For Nozzle (BSP) | Connection Size For Pump (BSP) | Sutaible Pump HP | |
|---|---|---|---|---|---|---|---|
| A(mm) | B(mm) | ||||||
| FLR36 | 1.00 | 1020 | 1173 | 1.80 | 2 1/2" | 2 1/2" | Upto 2HP |
| FLR48 | 1.20 | 1220 | 1173 | 2.00 | 4" | 4" | Upto 5HP |
