Design /Application Data

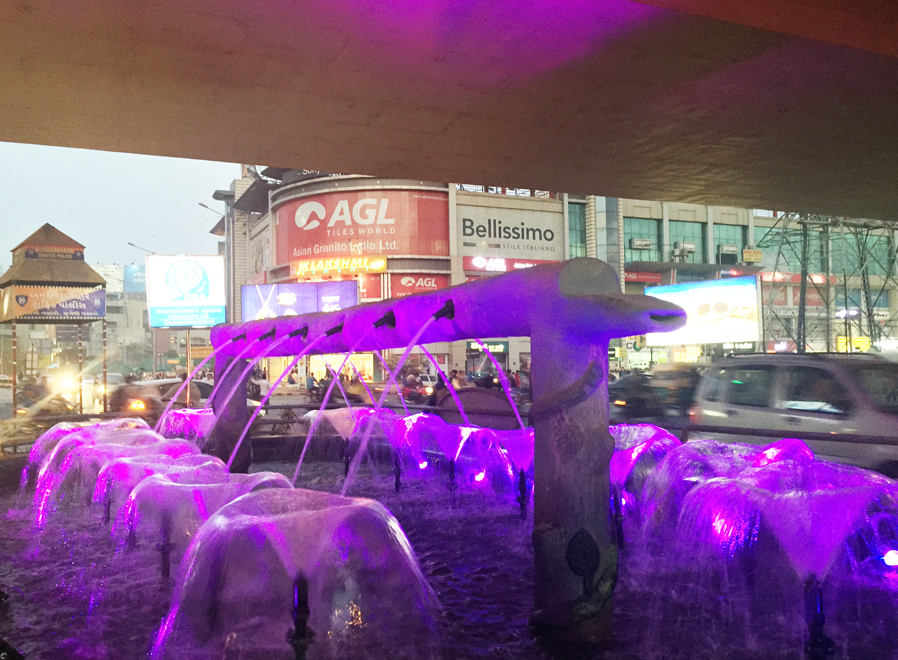

A clear pulsating sheet of water in a mushroom form when operated in a full sheet pattern there is very little shape or splash, ideal for both silent and windy Locations.
Specification Data
• Material of construction is cast bronze and brass with adjustable top cone.
• Bottom of nozzle must be installed at Water Level.
• Water supply must be non-trouble.
Operation Data
- Noise : Good
- Visibility : Excellent
- Splash /Mist : Excellent
- Wind Stability: Poor
- Aeration Quality : Moderate
Hydraulic Data

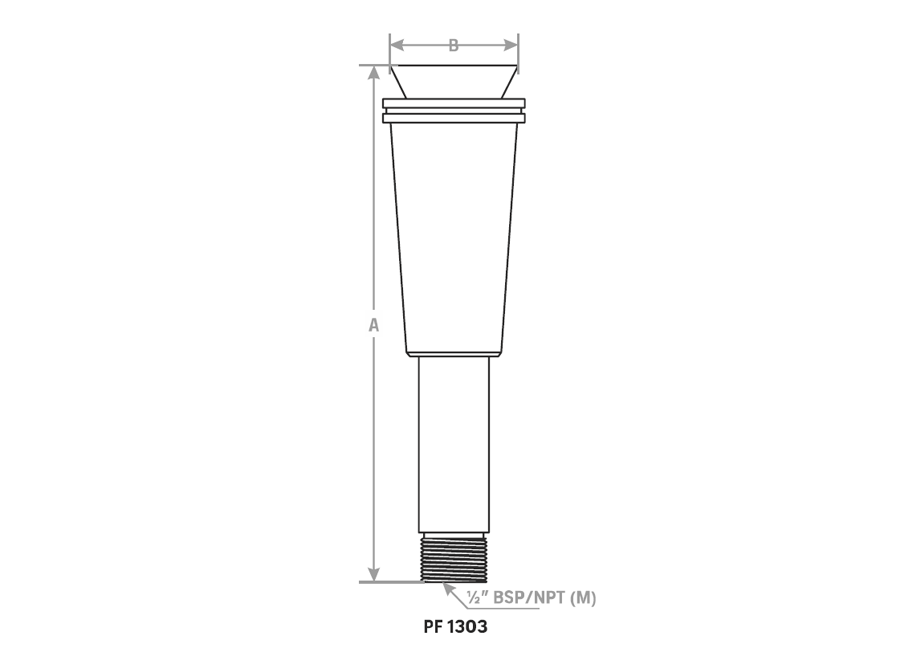

| Model No |
BSP/NPT | Dimension (mm) | Spray Height in cm | ||||
|---|---|---|---|---|---|---|---|
| A | B | 15 | 30 | 45 | |||
| PF 1303 | ½” | 162 | 45 | LPM | 16 | 22 | 26 |
| Spread in cm | 10 | 20 | 30 | ||||
| Head in Mtr | 0.30 | 0.45 | 0.75 | ||||
