Design /Application Data
Pond Jet series is Specially designed Nozzle that is used to achieve greater Fountain Height and Spray Diameter. It preferred in Floating and Lake Fountains.
- Clear wind Stable and Full Stream jet.
- Independent from Water Level.
- For Greater Fountain Height.
Specification Data

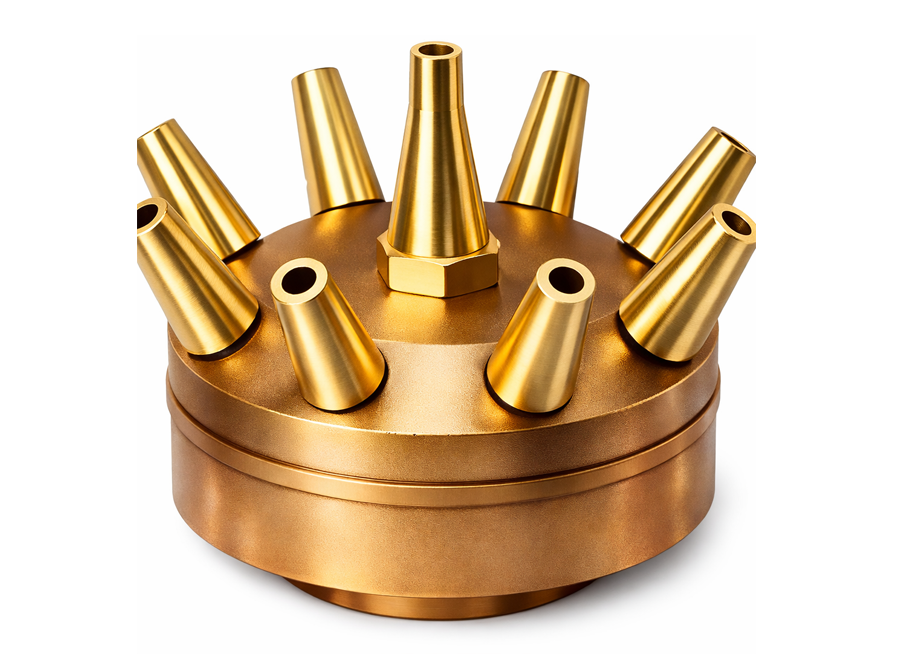

- Material of construction is Machined Brass and Cast bronze.
- Female Threaded connection.
Operation Data
- Noise : Moderate
- Visibility : Excellent
- Splash /Mist : Low Moderate
- Wind Stability: Good
- Aeration Quality : Good
Hydraulic Data
| Model No |
BSP/ NPT | Nos of Jets |

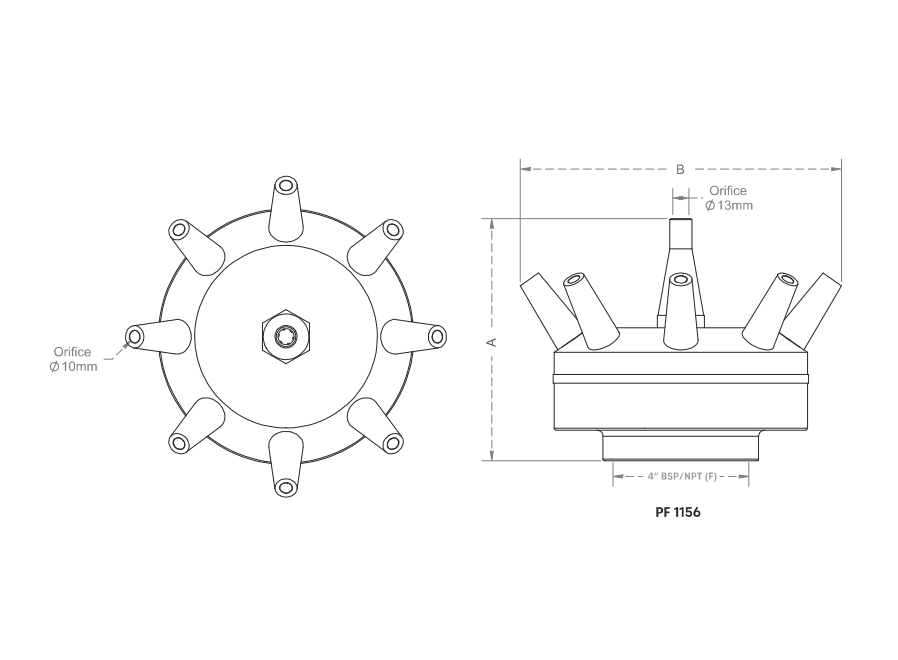

Dimension (mm) | Orifice in MM | Stream Height in Meter | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B | 1 | 1.5 | 2 | 2.5 | 3 | 3.5 | 4 | 5 | 6 | |||||
| PF 1156 | 4" | 9 | 197 | 260 | 1@13.00 | LPM | 212 | 271 | 313 | 353 | 385 | 423 | 470 | 521 | 580 |
| 8@10.00 | Head in Mtr | 1.25 | 1.85 | 2.45 | 3.10 | 3.70 | 4.30 | 5.00 | 6.10 | 7.35 | |||||
