Design /Application Data

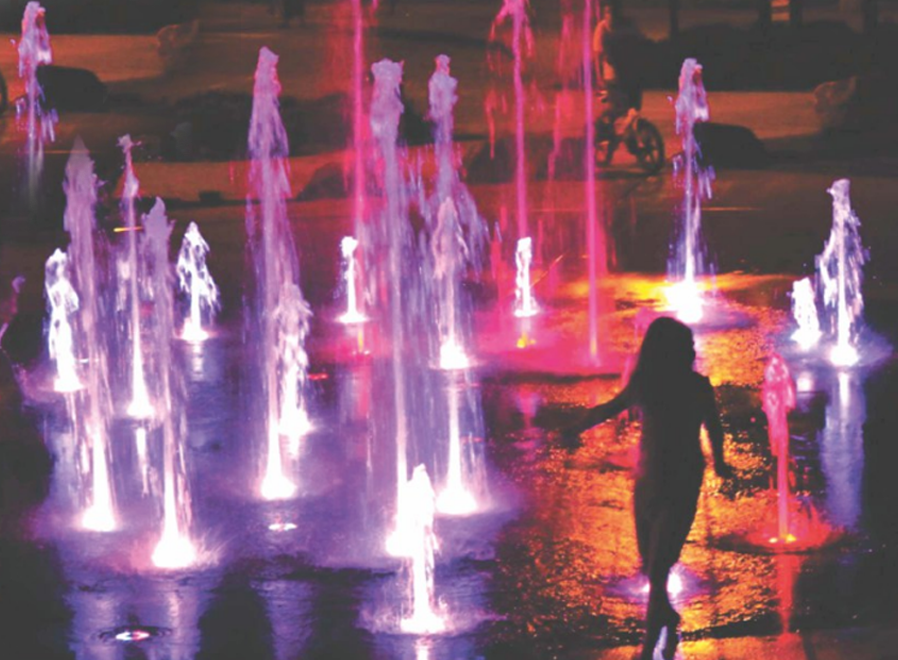

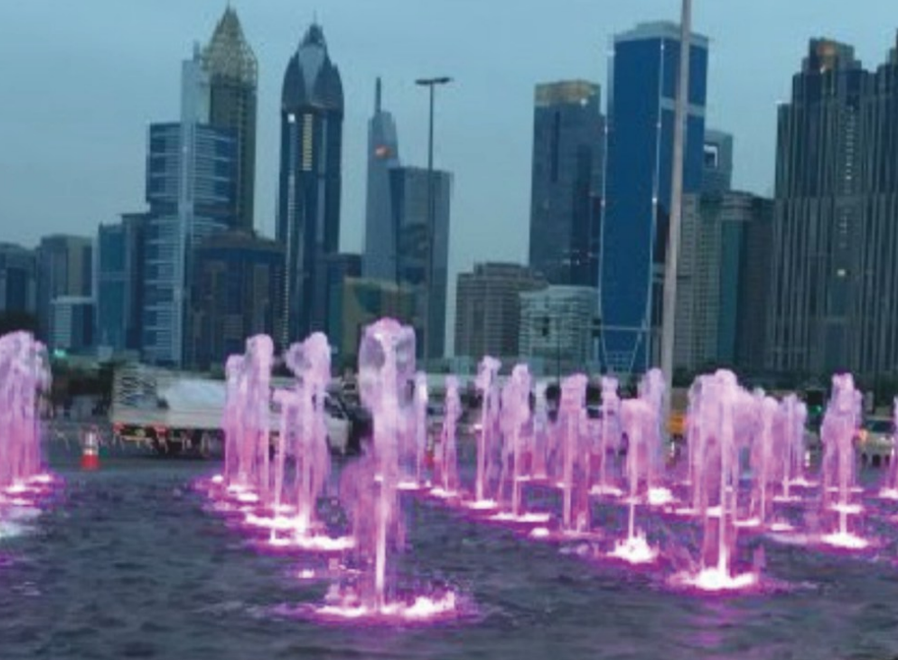

Dry fountains are currently popular. We can find this type of water display in public squares, shopping centres, water parks and gardens where they attract children & even all age people.

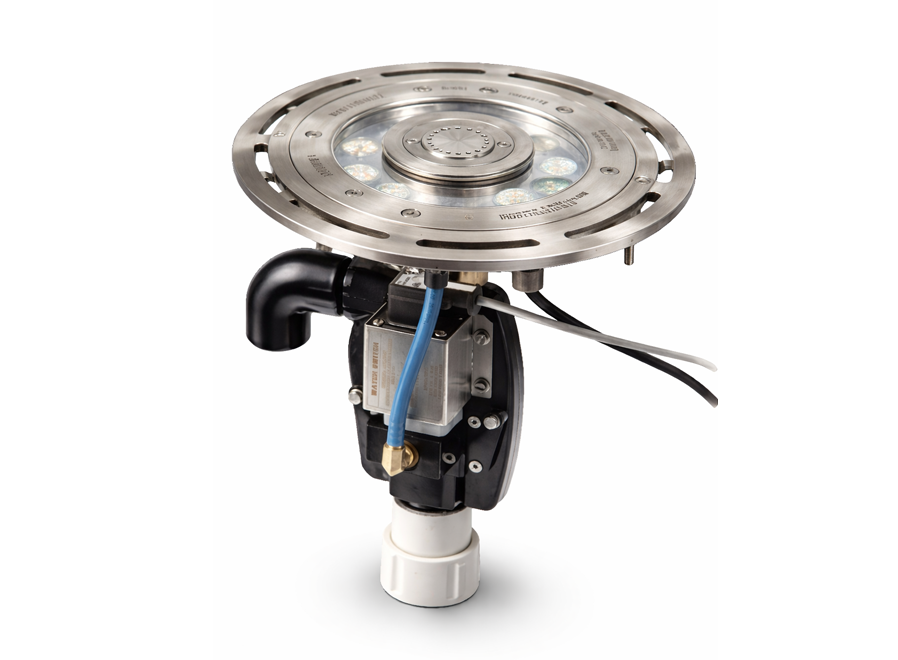

Aquascape Water switches can produce a wide verity of rhythm & geometric patterns like spirals, tilting, dancing ribbons, travelling waves and bursting fireworks. The water switches can produce programmed effects at high switching speeds (Up to 10 times per second) with no water hammer. Aquascape water switches are designed for dry deck or suspended slab fountains and provide an adjustable nozzle 5° from centre Line.
Listed below, you will find a range of the most common Water switch applications.
Advantage Of Waterswitch
Aquascape Waterswitches are an exciting interactive unit that produces programmed effects at high sequencing speed producing no water hammer, Usual water flow control solenoid's, there is a mechanical seal (Actually Water flow control solenoid is not designed for Fountains specially fast acting purpose due to mechanical seal.) When it is fast acting at that time mechanical seal may be burst. But Aquascape Waterswitch has come up with Flicker valve (not a pneumatic vale) which is specially designed for us from a German company.
- 10 mm opening on grate meets safety code for toe entrapment.
- Deck surrounds have no water accumulation.
- Safe interactive play running.
- Vandal resistant.
- 12V DC LED RGB units produce dramatic evening light shows.
- Multiple Water switch can produce a wide variety of geometric patterns.
- You can produce multiple heights using a variable speed drive pump.
- The unit can be adjusted up to 5° for installation alignment.
- Rotating grill assembly for fine-tuning layout pattern.
- Comes standard with construction covers for use during installation.
Solenoid Valve
| Voltage | Wattage | Inrush Current | Holding Current |
|---|---|---|---|
| 24V AC | 5W | 20 VA | 11VA |
LED Lighting
| Voltage | Wattage | Light Colour | Cable Type | Protection Class |
|---|---|---|---|---|
| 12V DC | 18W/27W | RGB | HO7RN-F 4 core cable | IP68 |
| RGBW DMX | HO7RN-F 5 core cable | IP68 |

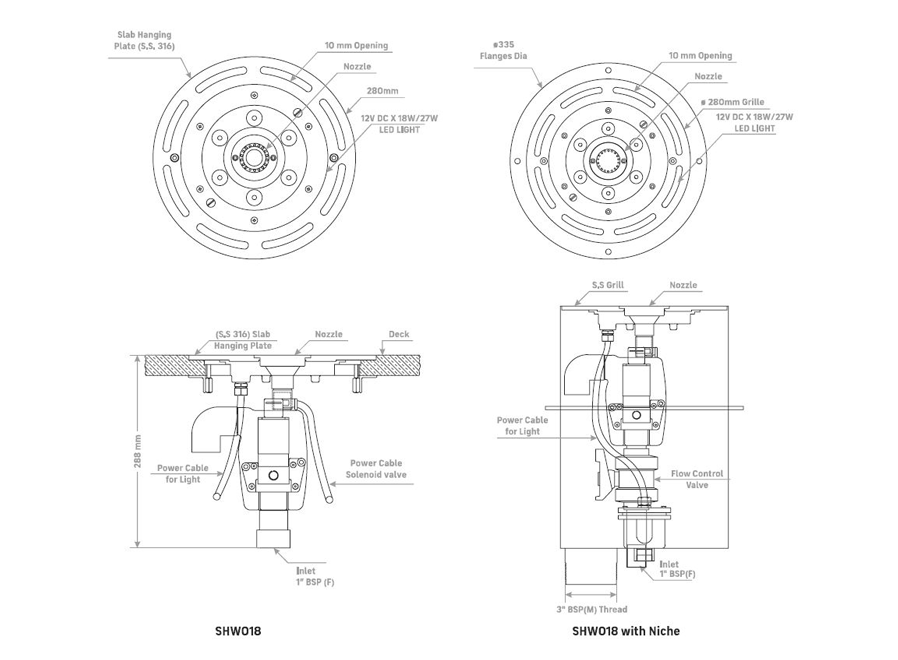

Specification Data
| Model | Inlet | Decorative Grill Dia in mm | Grill Thickness in mm | Opening Darin in mm | Nozzle effect | MOC |
|---|---|---|---|---|---|---|

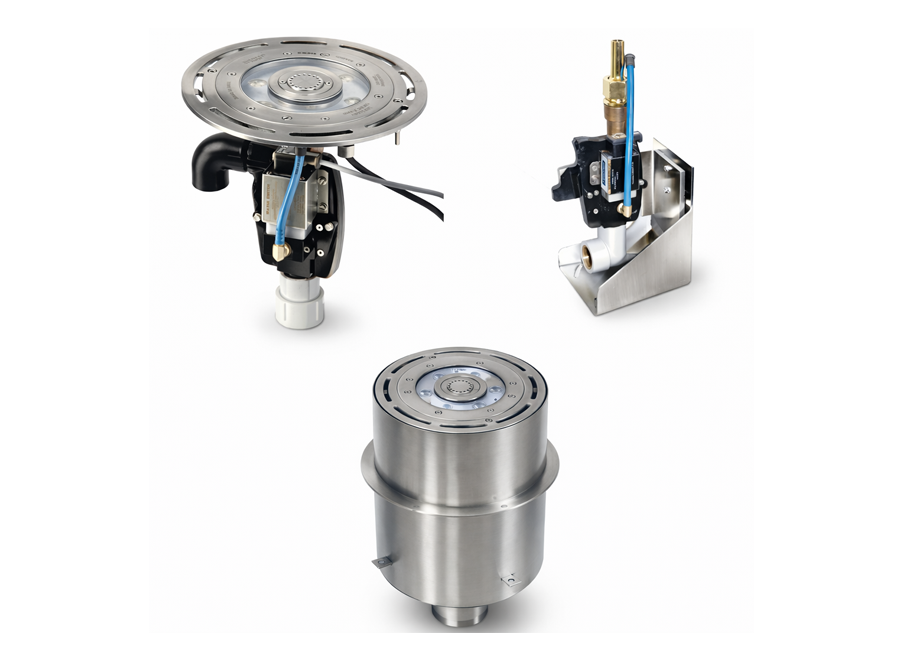

| SHW018 | 1” | 280 | 6 | 10 MM | Clear Stream / Cluster effect | Stainless Steel 316 |
| SHW018 with Niche | 1” | 280(335 with Flanges dia) | 6 | 10 MM | Clear Stream / Cluster effect | Stainless Steel 316 |
Hydraulic Data
| Cluster Effect | Spray Height in Meter | |||
|---|---|---|---|---|
| 1.00 | 1.50 | 2.00 | 2.50 | |
| LPM | 45 | 50 | 55 | 60 |
| Head in Mtr | 5.50 | 8.00 | 10.00 | 12.00 |
| Spread in mm | 520 | 800 | 900 | 1000 |
| Clear Steam Effect | Spray Height in Meter | |||
|---|---|---|---|---|
| 1.00 | 1.50 | 2.00 | 2.50 | |
| LPM | 30 | 35 | 40 | 45 |
| Head in Mtr | 3.50 | 5.50 | 7.00 | 8.50 |
| Spread in mm | 460 | 610 | 650 | 725 |
