Design /Application Data

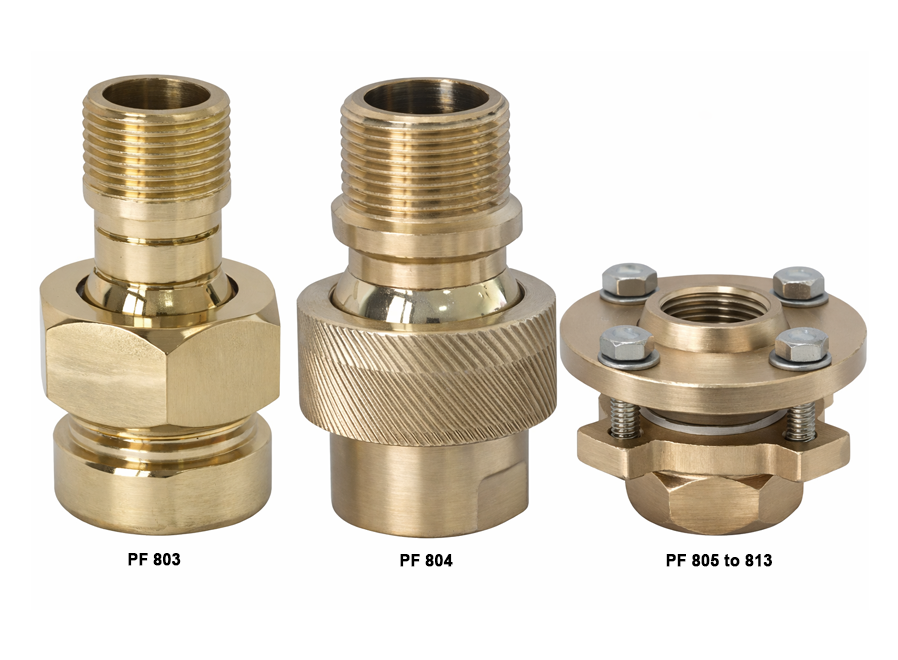

PF 800 Series directional swivel unions (Ball Joint) are used to align those jets and nozzles that do not have a swivel base incorporated and required directional adjustment beyond 5 to 15 degree of centerline.
Specification Data

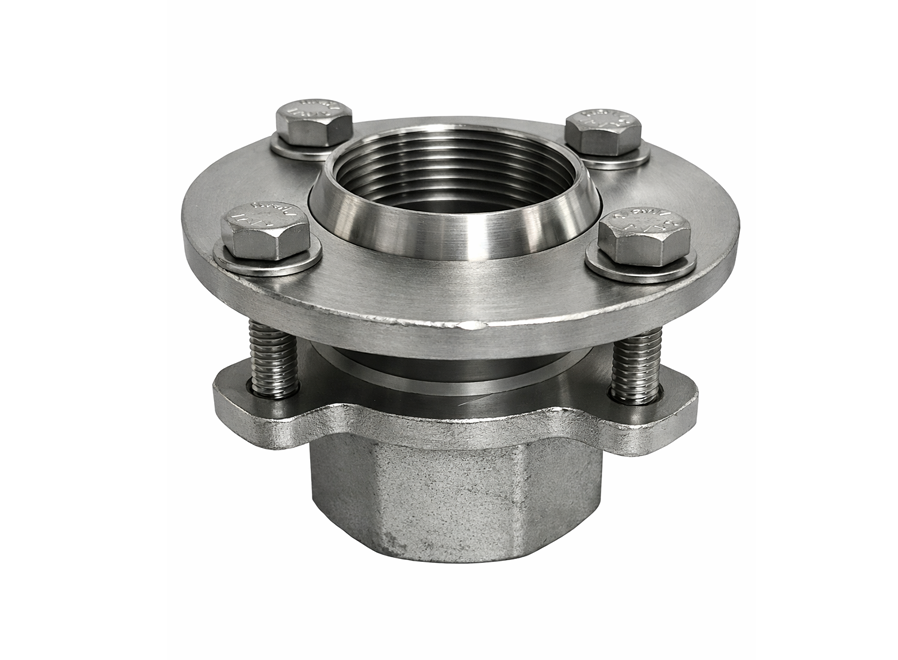

Material of construction is cast bronze & stainless steel 316 with teflon sealing and Stainless steel fasteners.

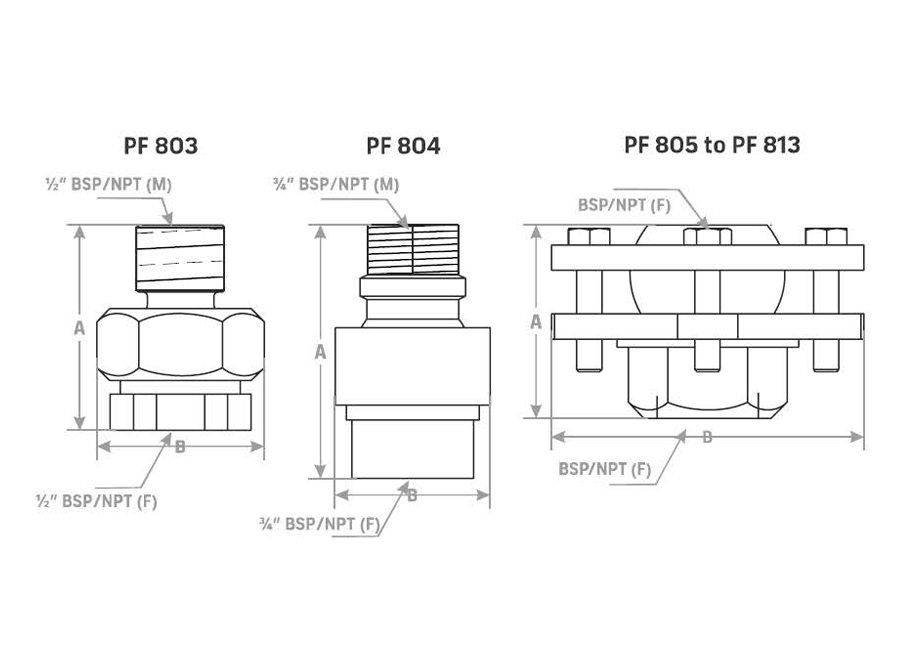

| Model No. | BSP/NPT | Dimension | |
|---|---|---|---|
| A (mm) | B (mm) | ||
| PF 803 | 1/2" | 60 | 34 |
| PF 804 | 3/4" | 72 | 45 |
| PF 805 | 1" | 62 | 98 |
| PF 807 | 1 1/2" | 75 | 116 |
| PF 808 | 2" | 90 | 136 |
| PF 809 | 2 1/2" | 103 | 155 |
| PF 812 | 3" | 110 | 175 |
| PF 813 | 4" | 129 | 197 |
