Design /Application Data

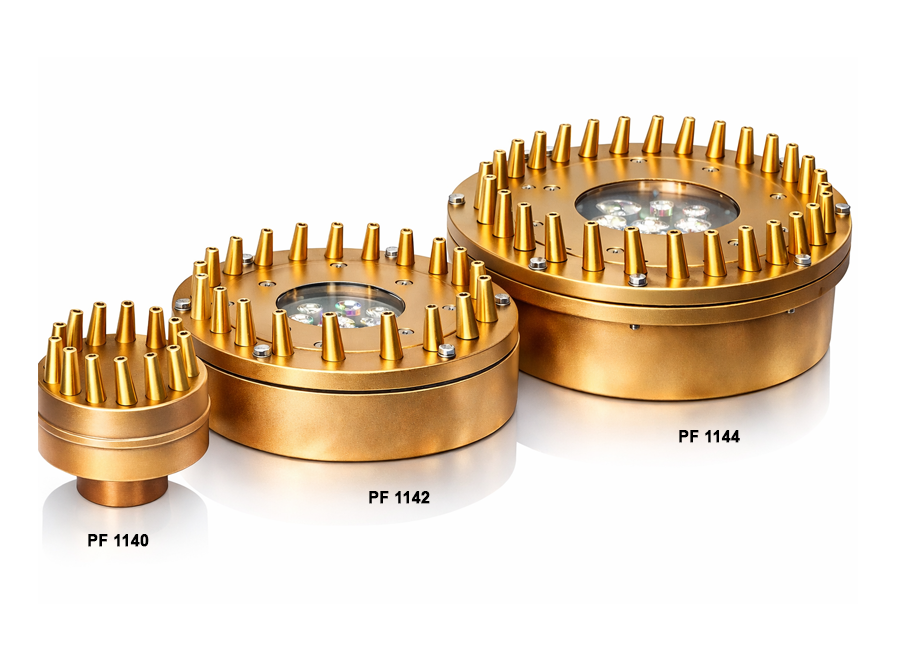

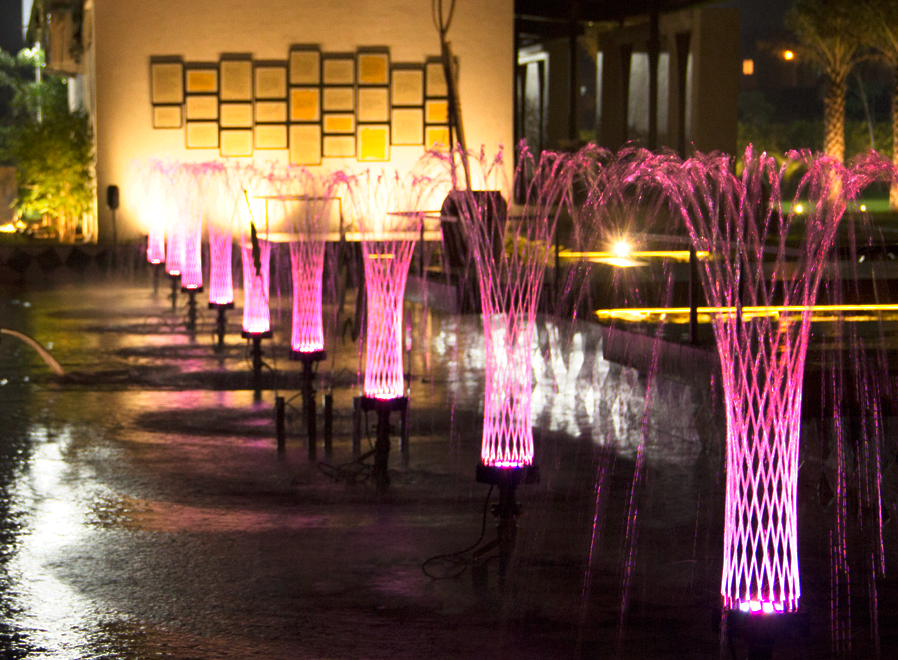

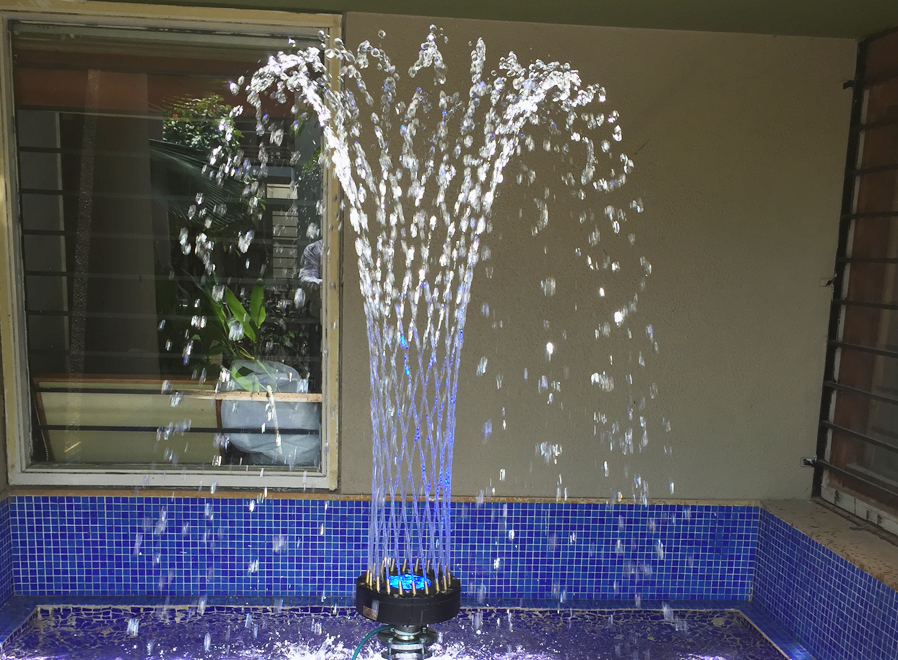

Simple fountain nozzle comprised of a set of 4mm water jets arranged in such a way that on rising they look like the diamonds and falling like the stars. The angel given to the jets means that, from wherever they are positioned, spectators can see the front & back jet cross over producing an aesthetics effect of great beauty in the architectural fountain. The range is comprised of three sizes with 15, 20 & 30 fountain jets.
Specification Data
Construction shall be cast bronze with precision clear stream brass nozzle neoprene gasket and stainless steel fasteners.
Operation Data
- Noise : Moderate
- Visibility : Excellent
- Splash /Mist : Moderate
- Aeration Quality : Poor
Electrical Cable
RGB lighting: - H07RN-F -4 core 0.75 sq/mm
Warm White lighting: H07RN-F - 2 core1 sq/mm
Lighting Specification
| Model | Voltage | Wattage | Colour |
|---|---|---|---|
| PF1140 | NA | NA | NA |
| PF1142 | 12V DC | 12W | RGB/ WARMWHITE |
| PF1144 | 12V DC | 18W | RGB/ WARMWHITE |
Hydraulic Data
| Model No |
BSP/ NPT | Nos of Jets |

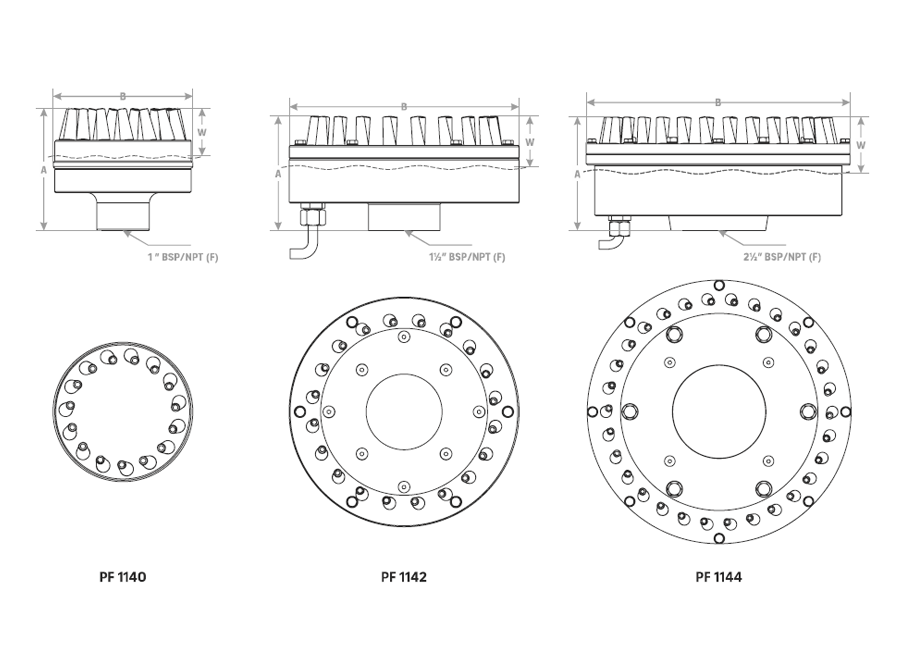

Dimension (mm) | Orifice in MM | Spray Height in Meter | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B | W | 0.50 | 1.00 | 1.50 | 2.00 | 2.50 | 3.00 | |||||
| PF 1140 | 1” | 15 | 102 | 114 | 40 | 4 | LPM | 52 | 100 | ||||
| Head in Mtr | 0.75 | 1.50 | |||||||||||
| Splash in Mtr | 0.50 | 1.00 | |||||||||||
| PF 1142 | 1½” | 20 | 102 | 202 | 45 | 4 | LPM | 70 | 138 | 166 | 188 | ||
| Head in Mtr | 0.75 | 1.50 | 2.25 | 3.00 | |||||||||
| Spread in Mtr | 0.50 | 1.00 | 1.50 | 2.00 | |||||||||
| PF 1144 | 2½” | 30 | 110 | 254 | 50 | 4 | LPM | 207 | 250 | 282 | 300 | 330 | |
| Head in Mtr | 1.50 | 2.25 | 3.00 | 3.75 | 4.50 | ||||||||
| Spread in Mtr | 1.00 | 1.50 | 2.00 | 2.50 | 3.00 | ||||||||
