Design /Application Data
Aquascape Height Control Valve range is ideal for fountain applications. It comes with a unique aesthetic appearance than other valves available in the market. It is used to control the height of Water in fountains. Usually, they are installed in the fittings below the fountain nozzle.
Specification Data

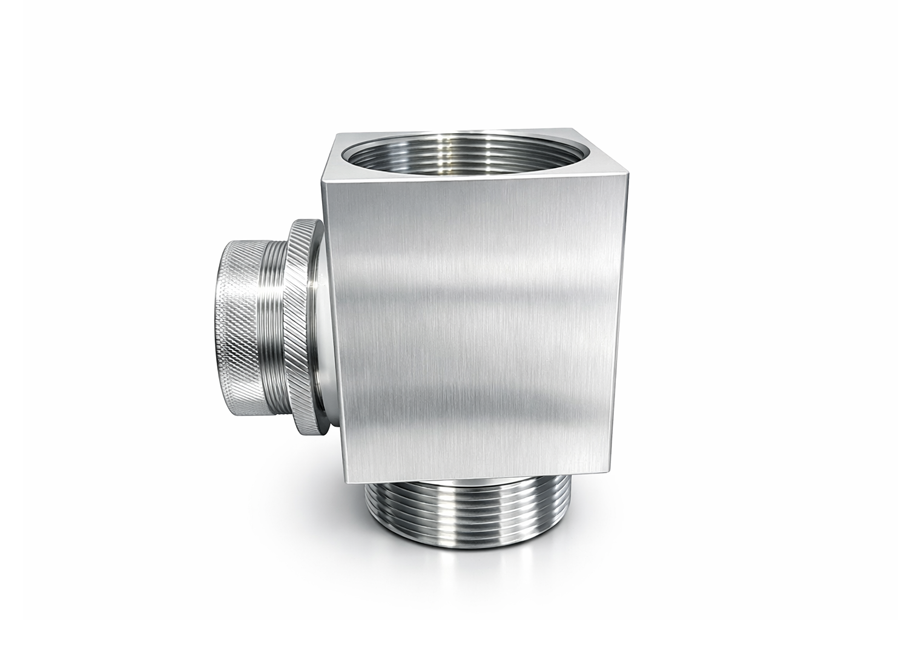

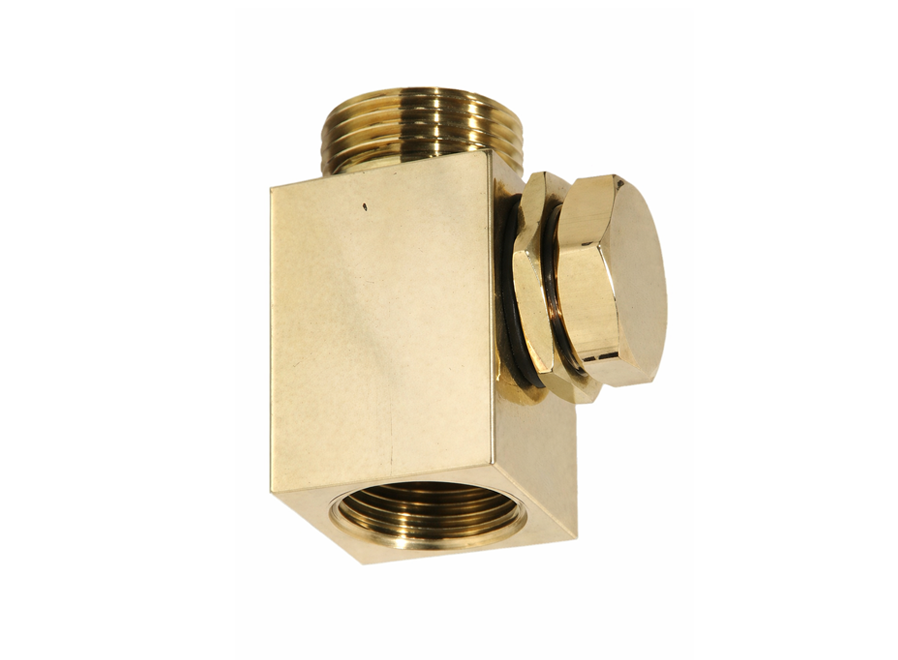

Material of Construction is made from Brass & Stainless Steel 316

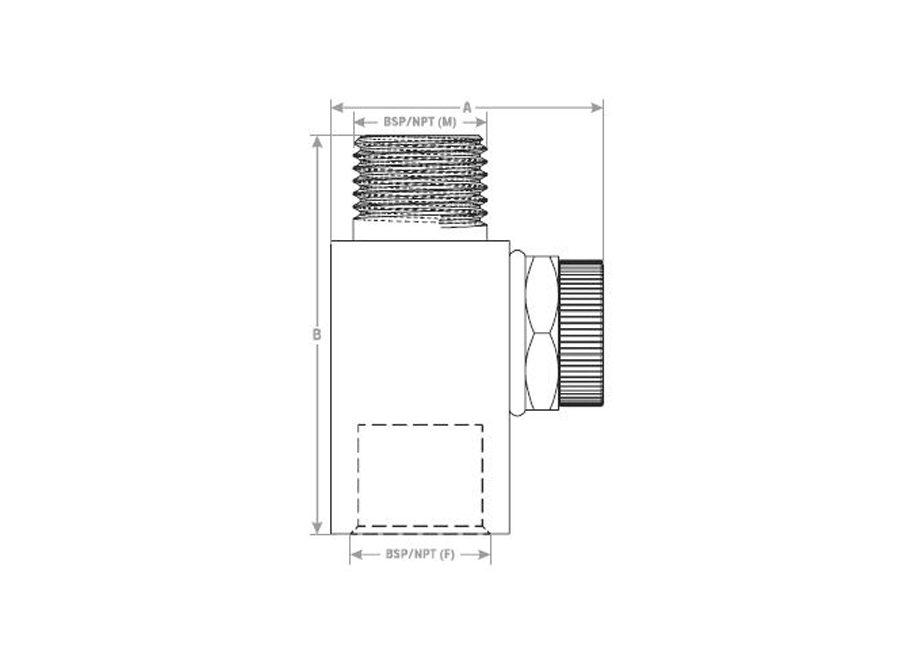

| Model No. | Description | Dimension | |
|---|---|---|---|
| A (mm) | B (mm) | ||
| HCV100 | 3/8" Height Control Valve | 50mm | 35mm |
| HCV150 | 1/2" Height Control Valve | 60mm | 40mm |
| HCV200 | 3/4" Height Control Valve | 60mm | 50mm |
| HCV250 | 1" Height Control Valve | 60mm | 55mm |
