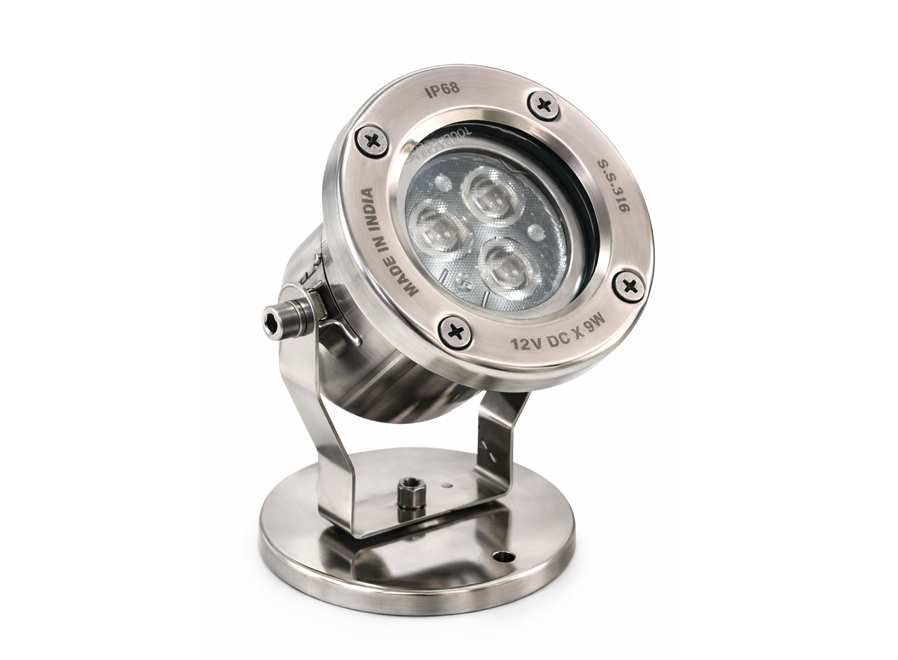

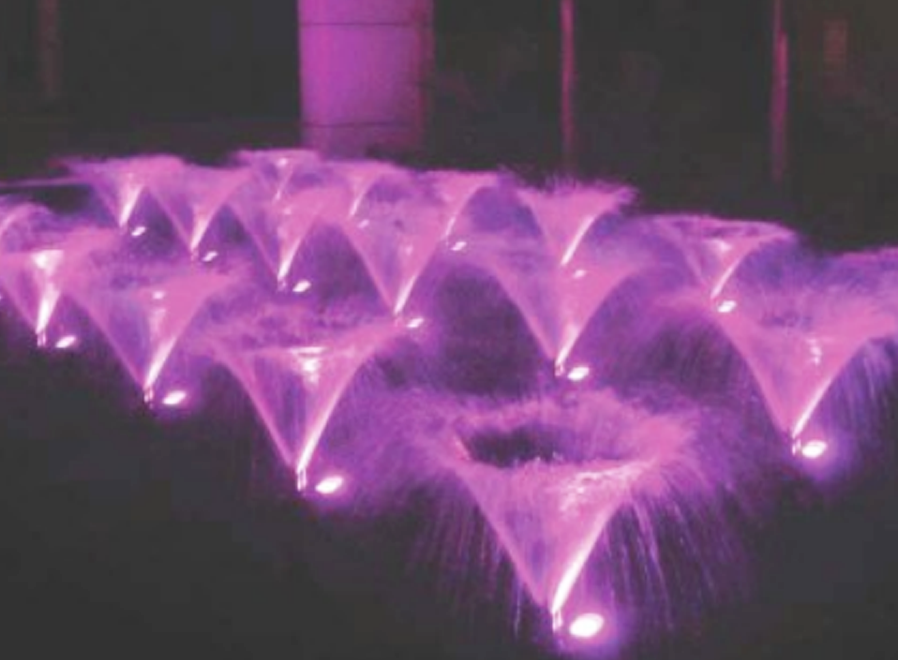

LED009 light is a high quality IP68 LED light suitable for all underwater lighting applications.The fittings are constructed from Stainless Steel 316 and incorporate the Latest LED technology. The light has designed for medium scale underwater Projects, including commercial ponds & water features etc. The fitting is supplied with adjustable stand.
| Model | Voltage | Wattage | Colour Available |
|---|---|---|---|
| LED009 | 12V DC | 9W | RGB, WARM WHITE, WHITE, GREEN, BLUE, RED |
Specification Data
| Model | LED009 |
|---|---|
| Voltage | 12V DC |
| Wattage | 9W |
| Light Colour | RGB, WARM WHITE, WHITE, RED, GREEN, BLUE |
| Blub Type | LED |
| Beam Angle | 30°/ 45° |
| Dominant Wavelength (RGB) (nm/k) | R:620-630 G:520-535 B:465-485 |
| Dominant Wavelength (Warm White) (nm/k) | W/W :2800-3200K |
| Dominant Wavelength (White) (nm/k) | W:5700-8000k |
| Luminous Flux | 120 LM/W |
| Operating Temperature | -20 - + 50°C |
| Storage Condition | -40 -+80°C, 10-95% RH |
| Cable | H07RN-FCABLE 2.5 MTR LENGTH |
| Protection Class | IP68 |
| Casting | STAINLESS STEEL316 |
