Design /Application Data

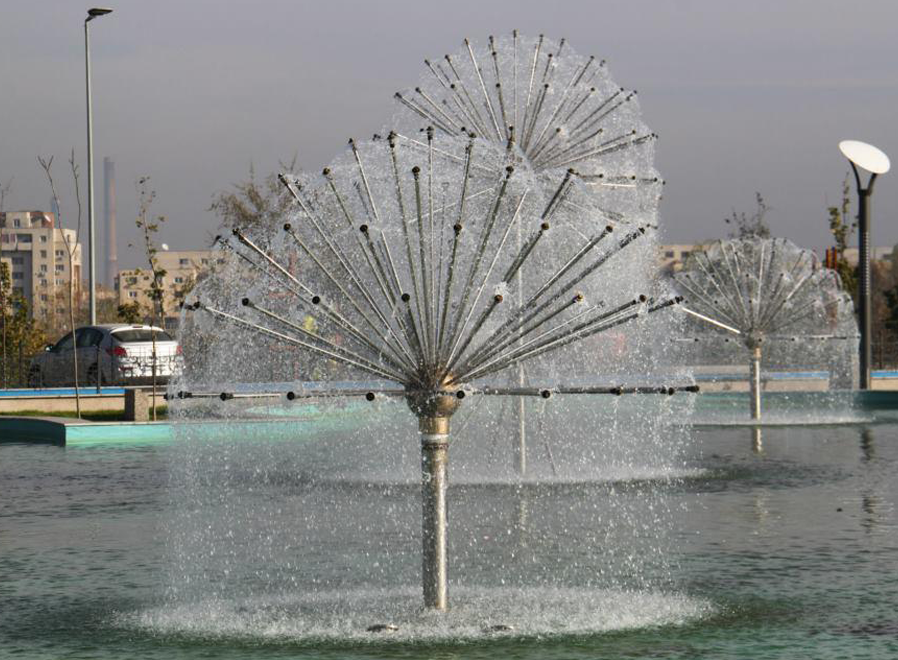

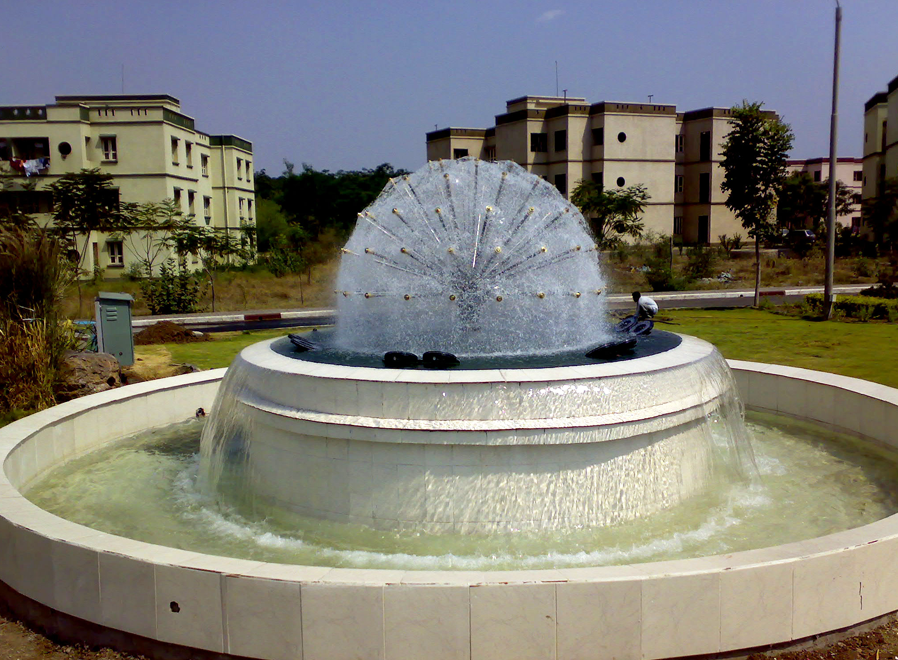

The Dandelion Hemisphere effect is created by multiple discs of water at the radiating from a center manifold. These effects produce a fine spray that results evaporation cooling in the area of the effect. When not in use as a water feature, the dandelion hemisphere appears sculpture ideal for mall and garden area.
Specification Data
• Material of construction is cast bronze and precision machined brass.
• Nozzles are easily cleaned individually adjustable (for water thickness) and removable.
Operation Data
- Noise : Good
- Visibility : Excellent
- Splash/Mist : Excellent
- Wind Stability : Poor
- Aeration Quality : Good

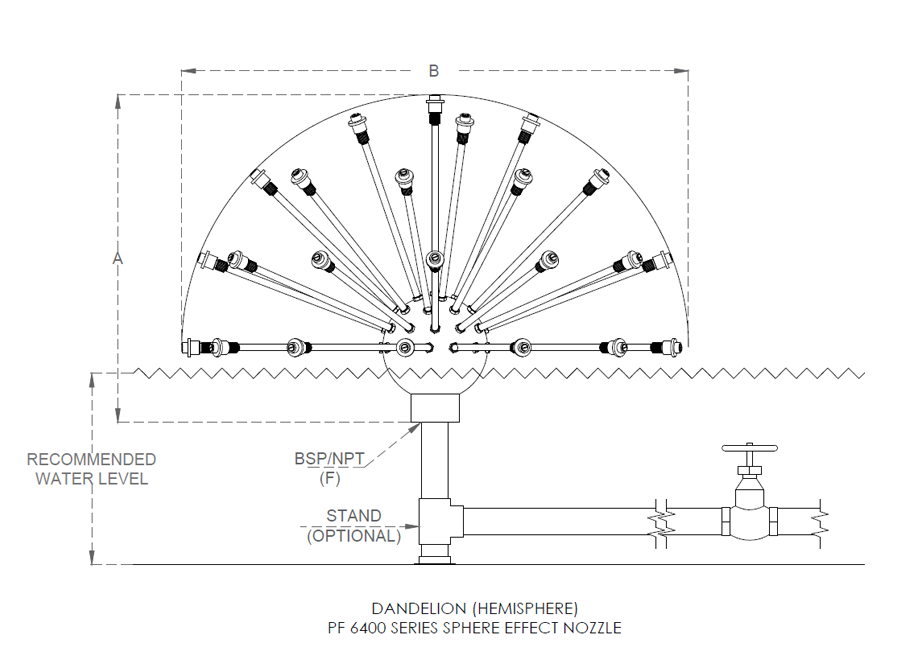

Hydraulic Data
| Model No |
BSP/NPT | Dimension A in Mtr. | Dimension B Sphere O.D.in Mtr. | Dimension C Hub Dia in mm | Nos of Arms | LPM | Head in Mtr. |
|---|---|---|---|---|---|---|---|
| PF 6442 | 2 ½” | 640 | 1.00 | 200 | 40 | 450 | 5.00 |
| PF 6444 | 2 ½” | 790 | 1.30 | 200 | 40 | 500 | 5.00 |
| PF 6446 | 4” | 1095 | 1.90 | 300 | 70 | 770 | 7.00 |
