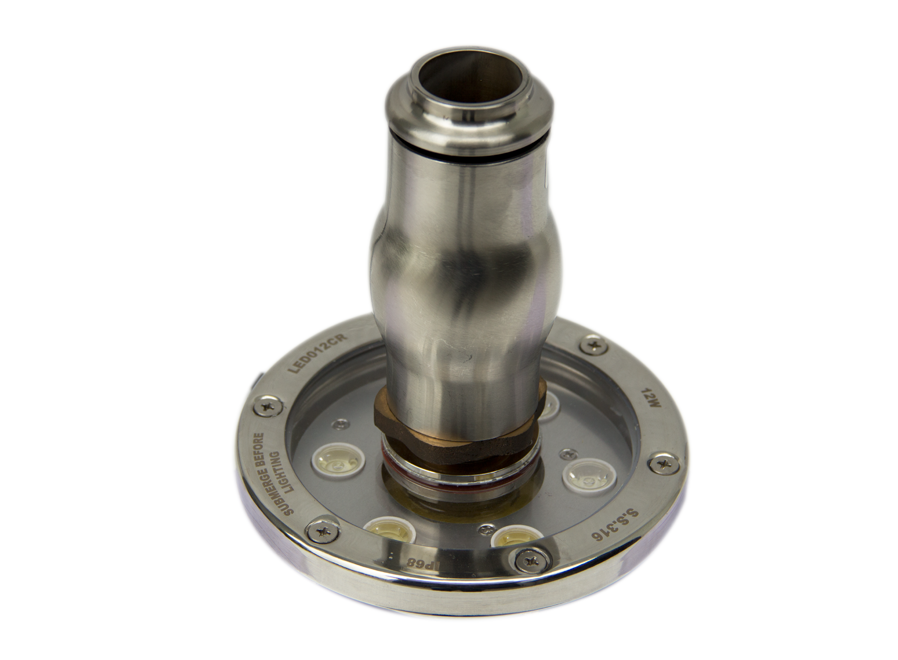

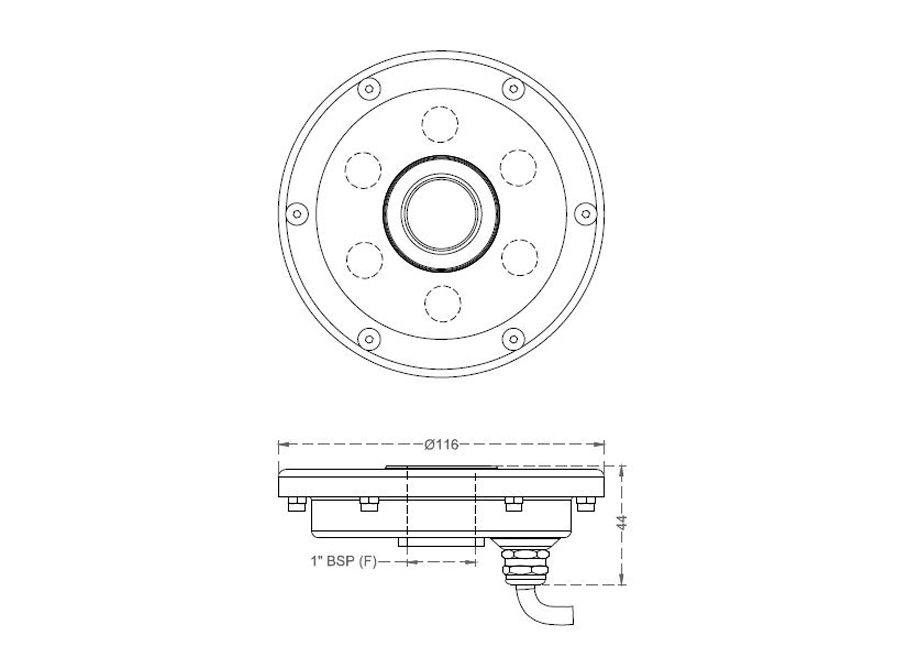

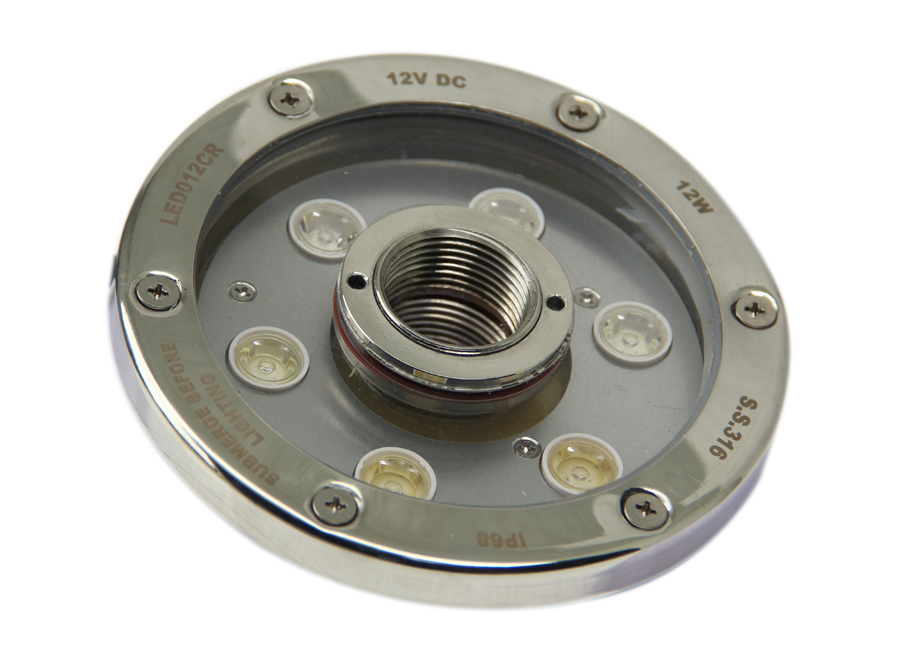

LED012CR LED light is one of our circular LED Lights. This light comes with a centre hole connection size is 1" & you can accommodate many Aquascape nozzles. This general-purpose underwater light is suitable for wet & dry Locations and provides good up-lighting. The fittings are IP68 submersible rated and manufactured from Stainless Steel 316 for maximum performance and style.
Specification data
| Model | LED012CR |
|---|---|
| Voltage | 12V DC |
| Wattage | 12W |
| Light Colour | RGB, WARM WHITE, |
| Blub Type | LED |
| Beam Angle | 10°/ 25° |
| Dominant Wavelength (RGB) (nm/k) | R:620-630 G:520-535 B:465-485 |
| Luminous Flux | 120 LM/W |
| Operating Temperature | -20 - + 50°C |
| Storage Condition | -40 -+80°C, 10-95% RH |
| Cable | H07RN-F CABLE 2.5 MTR LENGTH |
| Protection Class | IP68 |
| Casting | STAINLESS STEEL316 |
