Design /Application Data

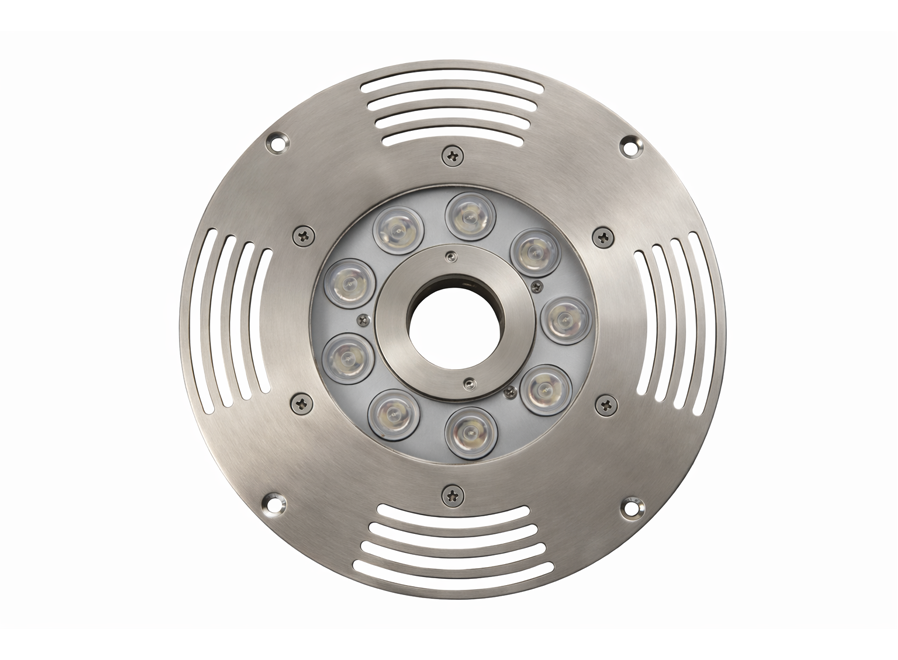

The SHL027 Series is a Slab hanging LED circular light with a hole in the center that can accommodate many Aquascape nozzles and provide the good water effect. Suitable for wet or dry application, this light provides good wall-washing and up-lighting.
Specification Data
| Model | SHL027 |
|---|---|
| Voltage | 12V DC |
| Wattage | 27W |
| Light Colour | RGB, WARM WHITE |
| Blub Type | LED |
| Beam Angle | 40°/ 25° |
| Dominant Wavelength (RGB) (nm/k) | R:620-630 G:520-535 B:465-485 |
| Luminous Flux | 120 LM/W |
| Operating Temperature | -20 ~ + 50°C |
| Storage Condition | -40 -+80°C, 10-95% RH |
| Cable | H07RN-F CABLE 2.5 MTR LENGTH |
| Protection Class | IP68 |
| Casting | STAINLESS STEEL316 |
