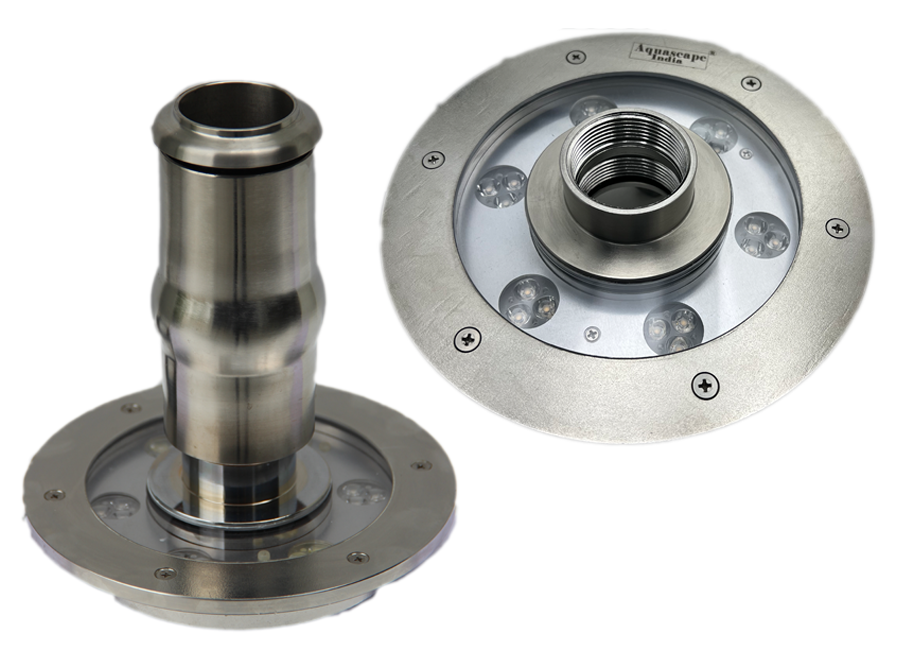

LED018CR LED light is one of our circular LED Lights. This light comes with a centre hole connection size is 1 ½” & you can accommodate many Aquascape nozzles. This general-purpose underwater light is suitable for wet & dry locations and provides good up-lighting. The fittings are IP68 submersible rated and manufactured from Stainless Steel 316 for maximum performance and style.
| Model | Voltage | Wattage | Thread Connection | Colour Available |
|---|---|---|---|---|
| LED018CR | 12V DC | 18W | 1” / 1 ½” | RGB, WARM WHITE, WHITE, RGBW DMX |
| LED027CR | 12V DC | 27W | 1” / 1 ½” | RGB,RGBW DMX |
Specification Data
| Model | LED018CR | LED027CR |
|---|---|---|
| Voltage | 12V DC | 12V DC |
| Wattage | 18W | 27W |
| Light Colour | RGB, WARM WHITE, WHITE, RGBW DMX | RGB,RGBW DMX |
| Blub Type | LED | LED |
| Beam Angle | 15°/ 25° | 15°/ 25° |
| Dominant Wavelength (RGB) (nm/k) | R:620-630 G:520-535 B:465-485 |
R:620-630 G:520-535 B:465-485 |
| Dominant Wavelength (Warm White) (nm/k) | W/W: 2800-3200K | W/W: 2800-3200K |
| Dominant Wavelength (White) (nm/k) | W: 5700-8000K | W: 5700-8000K |
| Luminous Flux | 120 LM/W | 120 LM/W |
| Operating Temperature | -20 - + 50°C | -20 - + 50°C |
| Storage Condition | -40 -+80°C, 10-95% RH | -40 -+80°C, 10-95% RH |
| Cable | H07RN-F CABLE 2.5 MTR LENGTH | H07RN-F CABLE 2.5 MTR LENGTH |
| Protection Class | IP68 | IP68 |
| Casting | STAINLESS STEEL316 | STAINLESS STEEL316 |
