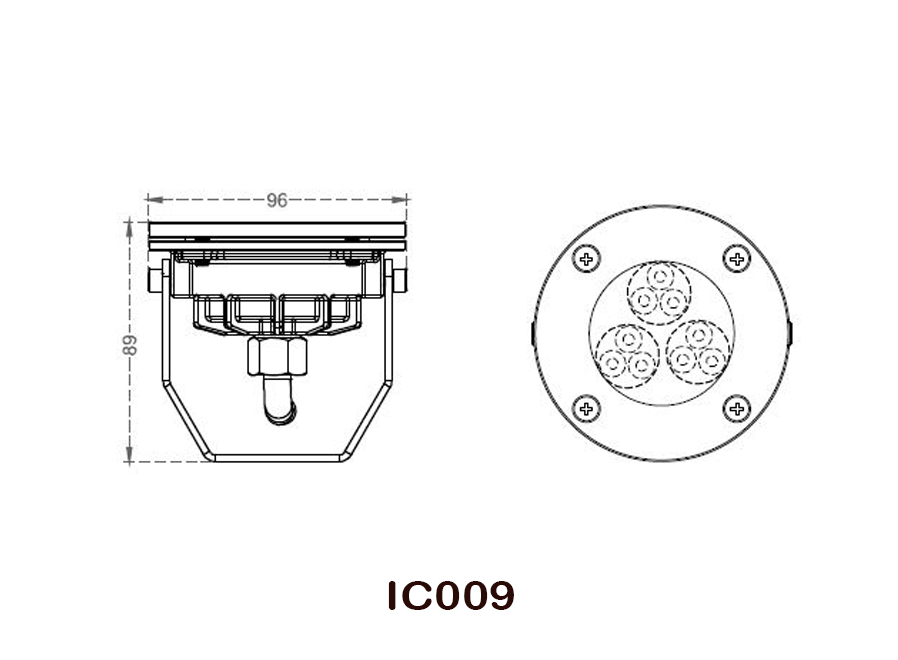

IC009 - IC012

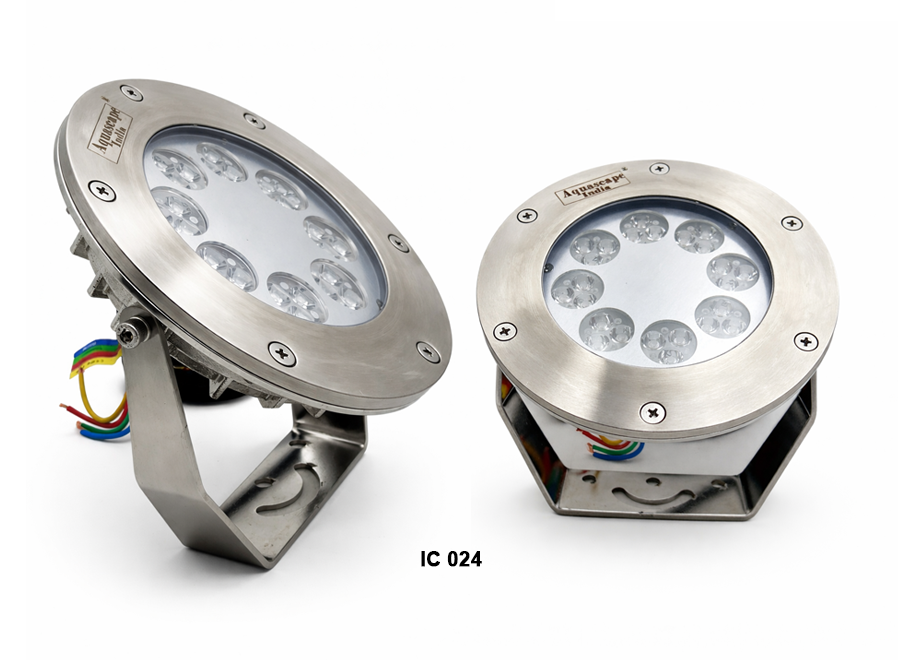

IC018 - IC024 - IC036
Design /Application Data
Aquascape IC series LED Fountain lights are designed for a great illumination requirement for Underwater Lighting, Water feature, ponds and fountains large scale commercial underwater applications. Lights are incorporating High-power LEDs made by Cree and it is offering IP68 protection. Light Housing is made of superior quality, highly durable & corrosion resistant Stainless steel 316 investment casting with stylish finishing. Lights are available in RGB, RGBW DMX & Warm White.
Specification Data

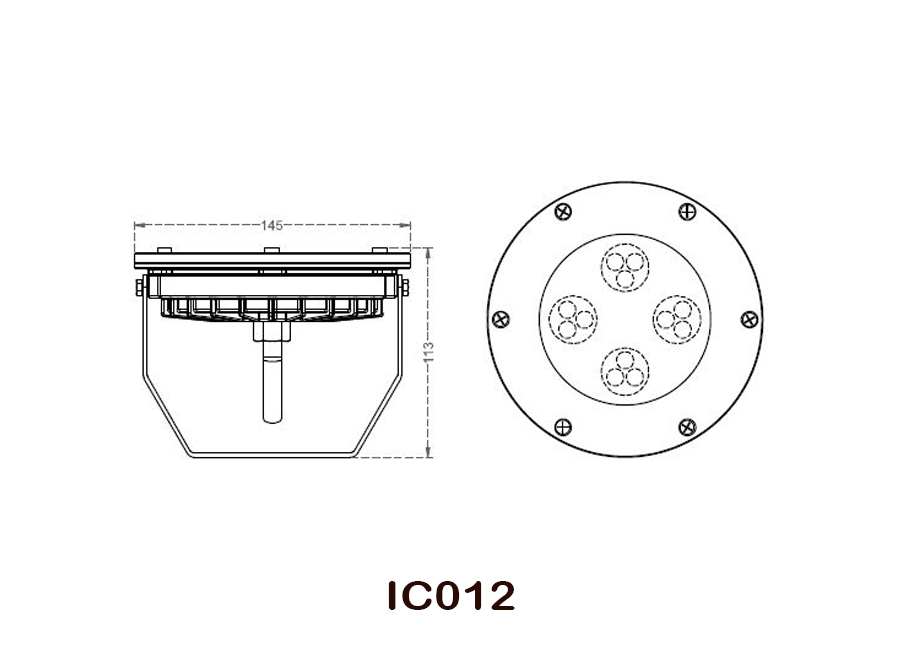

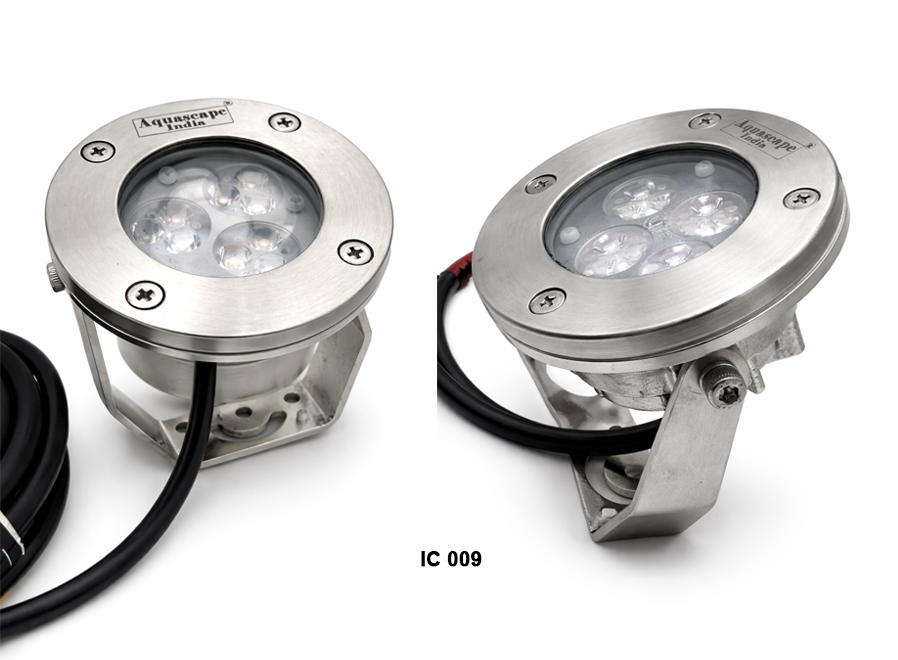

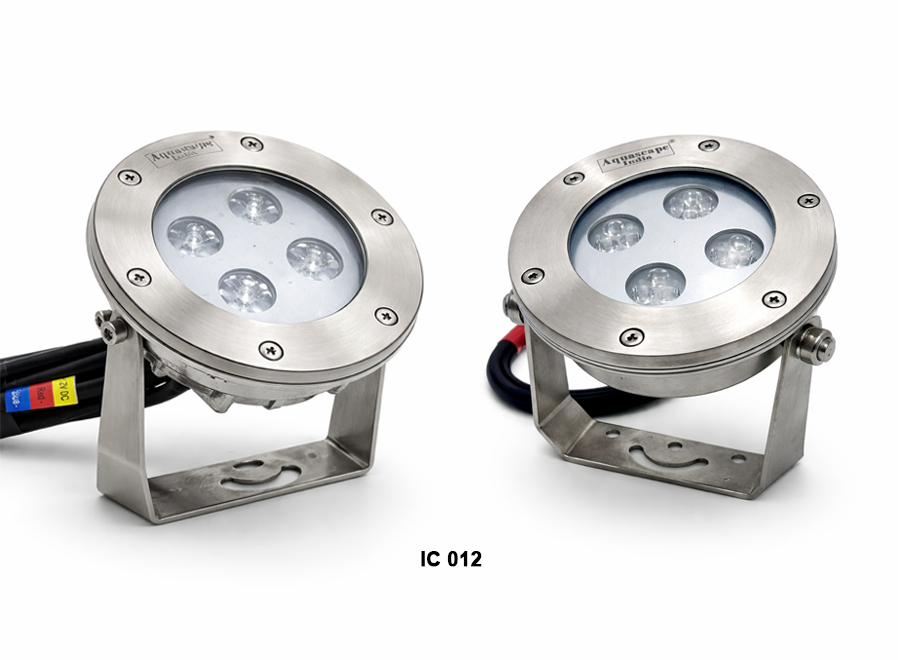

| Model | IC009 | IC012 |
|---|---|---|
| Voltage | 12V DC | 12V DC |
| Wattage | 9W | 12W |
| Light Colour | RGB, WARM WHITE | RGB, WARM WHITE, RGBW DMX |
| Blub Type | LED | LED |
| Beam Angle | 10°/ 15° | 10°/ 15° |
| Dominant Wavelength (RGB) (nm/k) | R:620-630 G:520-535 B:465-485 |
R:620-630 G:520-535 B:465-485 |
| Dominant Wavelength (RGB) (nm/k) | W/W:2800-3200K | W/W:2800-3200K |
| Luminous Flux | 120 LM/W | 120 LM/W |
| Operating Temperature | -20 - + 50°C | -20 - + 50°C |
| Storage Condition | -40 -+80°C, 10-95% RH | -40 -+80°C, 10-95% RH |
| Cable | H07RN-FCABLE 2.5 MTR LENGTH | H07RN-FCABLE 2.5 MTR LENGTH |
| Protection Class | IP68 | IP68 |
| Casting | STAINLESS STEEL316 | STAINLESS STEEL316 |
Specification data

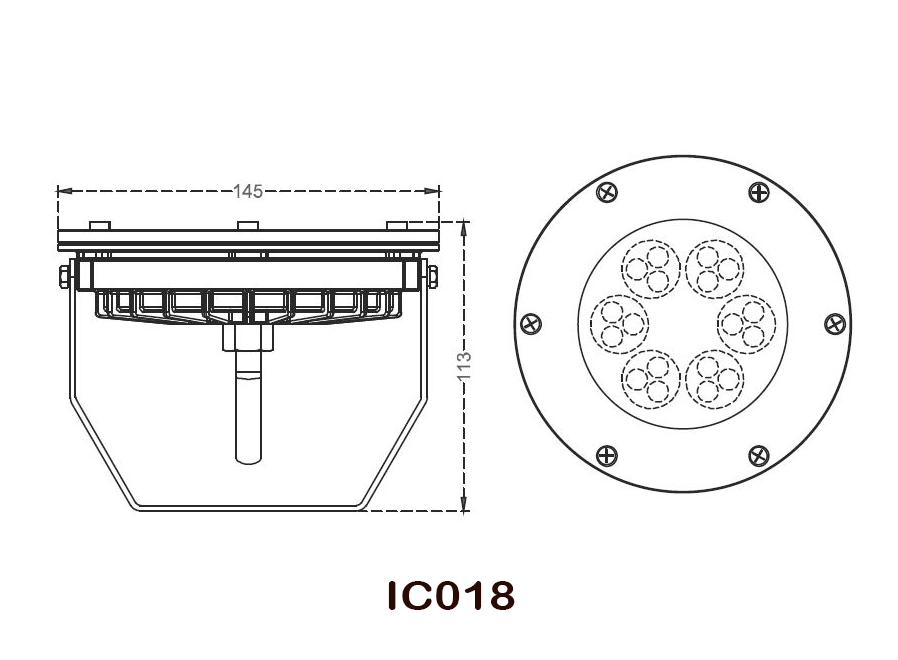

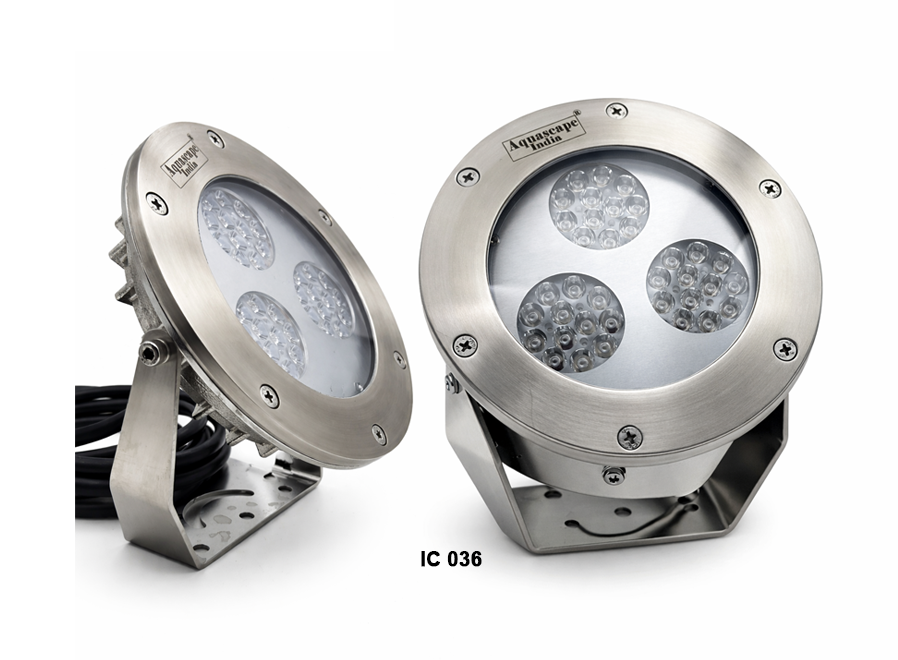

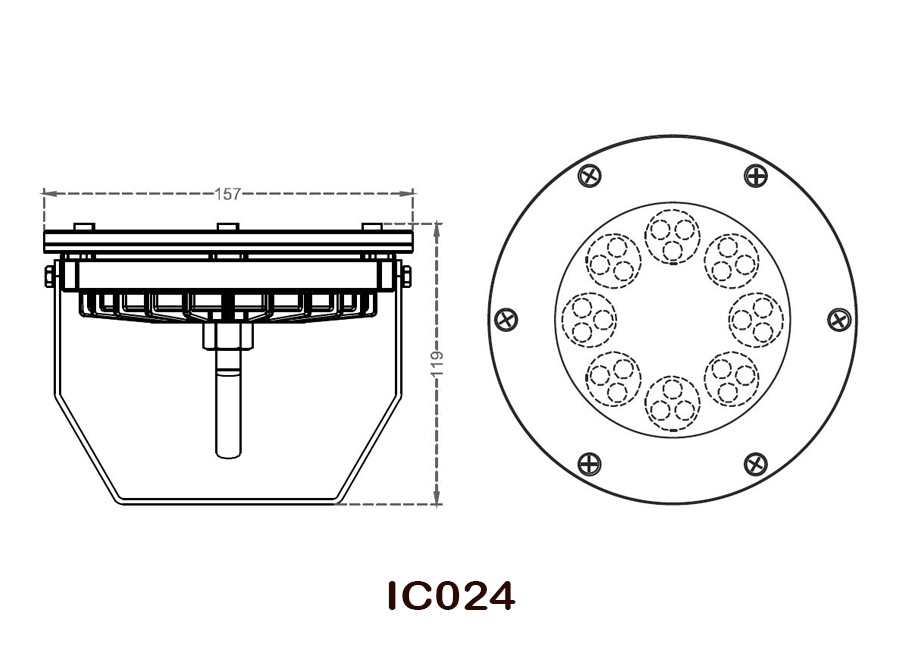

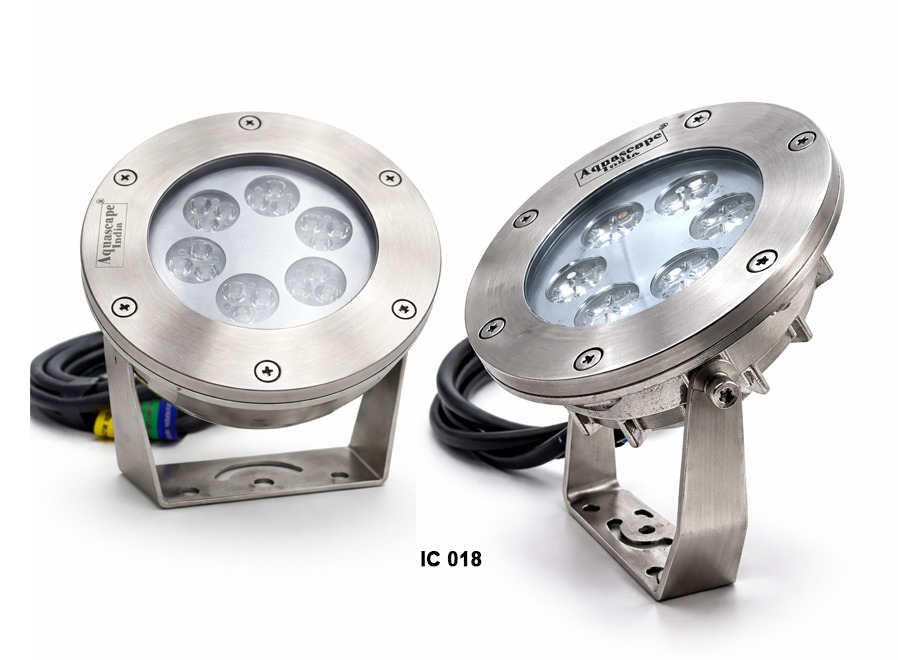

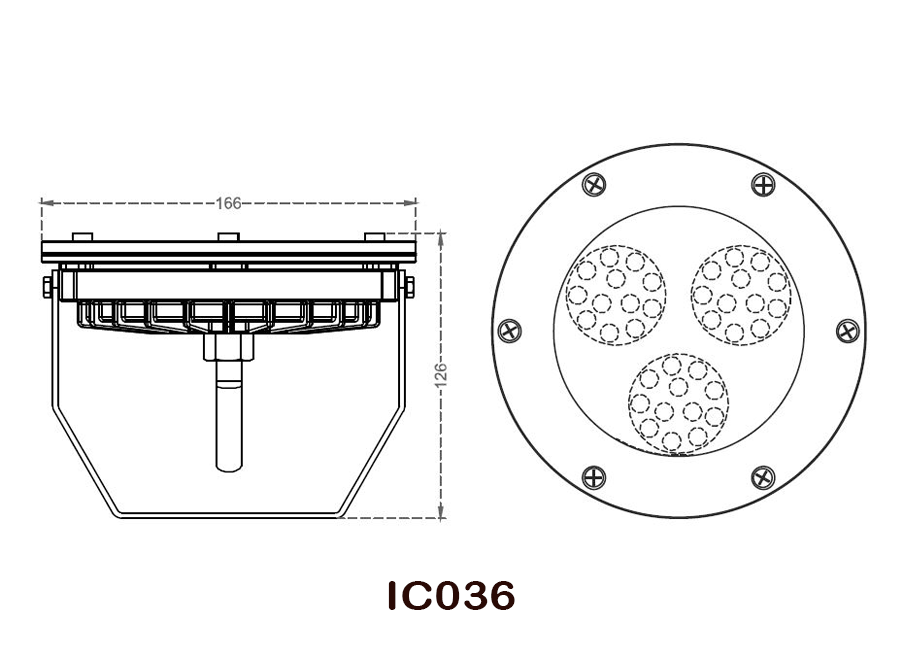

| Model | IC018 | IC024 | IC036 |
|---|---|---|---|
| Voltage | 12V DC | 12V DC | 12V DC |
| Wattage | 18W | 24W | 36W |
| Light Colour | RGB, WARM WHITE | RGB, WARM WHITE, RGBW DMX | RGB, WARM WHITE, RGBW DMX |
| Blub Type | LED | LED | LED |
| Beam Angle | 15°/ 25° | 15°/ 25° | 15°/ 25° |
| Dominant Wavelength (RGB) (nm/k) | R:620-630 G:520-535 B:465-485 |
R:620-630 G:520-535 B:465-485 |
R:620-630 G:520-535 B:465-485 |
| Dominant Wavelength (RGB) (nm/k) | W/W:2800-3200K | W/W:2800-3200K | W/W:2800-3200K |
| Luminous Flux | 120 LM/W | 120 LM/W | 100 LM/W |
| Operating Temperature | -20 - + 50°C | -20 - + 50°C | -20 - + 50°C |
| Storage Condition | -40 -+80°C, 10-95% RH | -40 -+80°C, 10-95% RH | -40 -+80°C, 10-95% RH |
| Cable | H07RN-F CABLE 2.5 MTR LENGTH | H07RN-F CABLE 2.5 MTR LENGTH | H07RN-F CABLE 2.5 MTR LENGTH |
| Protection Class | IP68 | IP68 | IP68 |
| Casting | STAINLESS STEEL316 | STAINLESS STEEL316 | STAINLESS STEEL316 |
