Foot Friendly Suction Drain

Design /Application Data

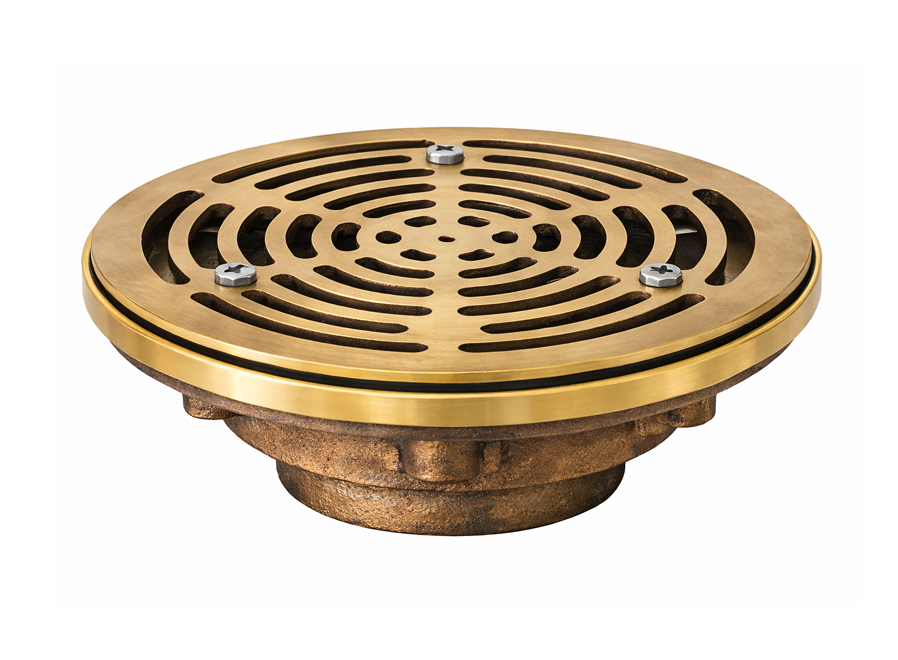

Aquascape Foot friendly suction drain comes with flat grate and it's suitable for interactive water feature. Opening of this drain not more than 10mm. So it prevents toe entrapment.

Specification Data

Material of construction is cast Bronze

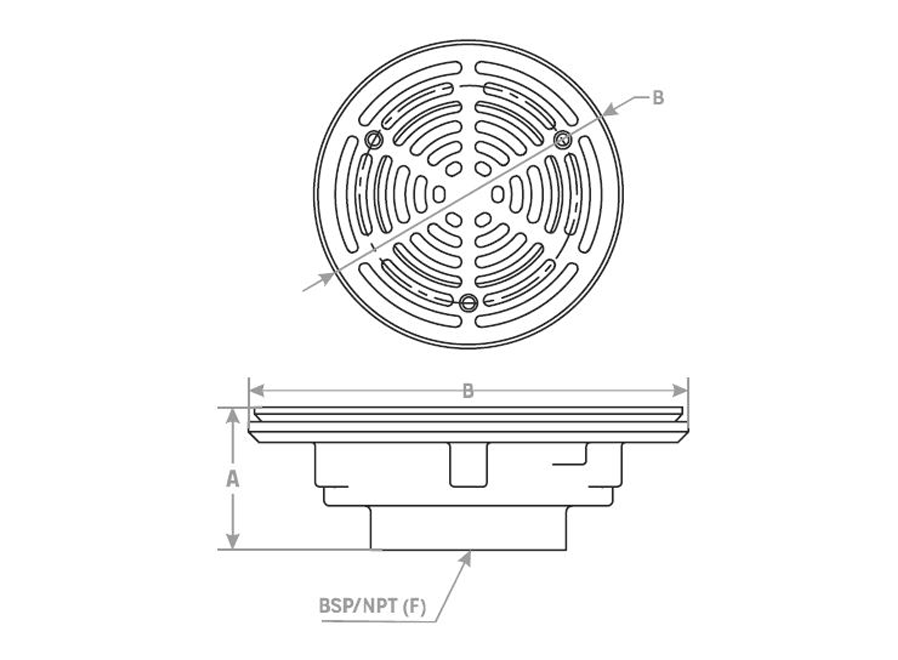

Model No. BSP/NPT Dimension
A (mm) B (mm)
DIFS300 3" 72 216
DIFS400 4" 72 216
