Design /Application Data

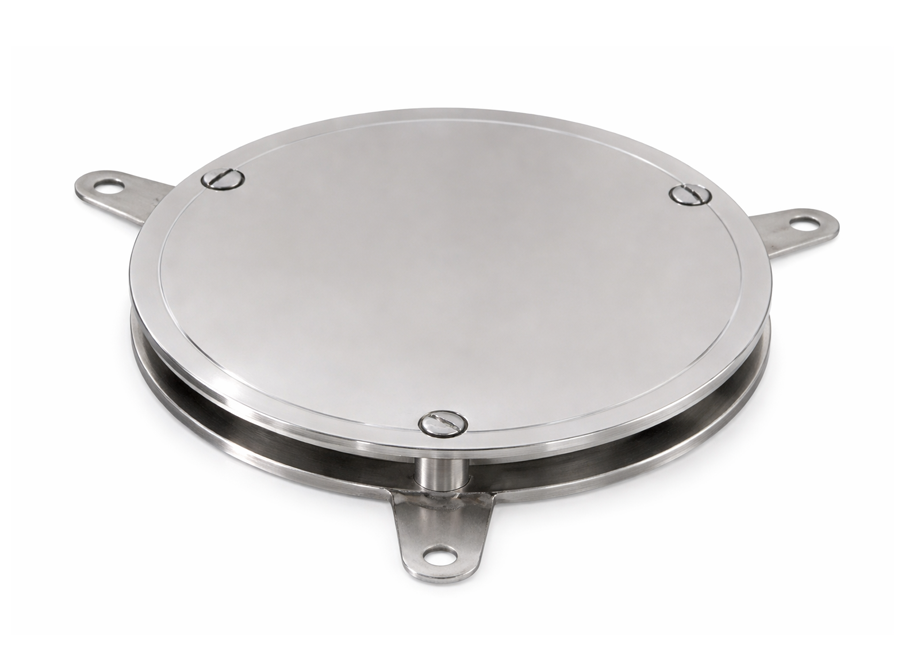

Aquascape Anti vortex frame and plate (Diverter Plate) disappear flow and reduce surface.
Specification Data
Material of construction made from Stainless Steel 316.

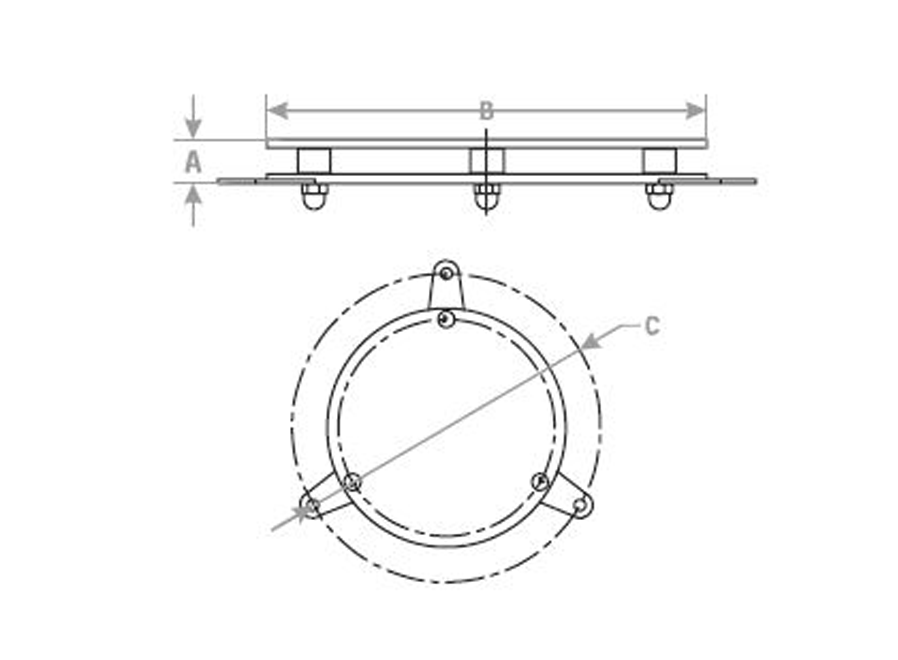

| Model | Dimension | ||
|---|---|---|---|
| A (mm) | B (mm) | C (mm) | |
| DP 200 | 30 | 200 | 170 |
| DP 300 | 40 | 300 | 260 |
| DP 500 | 43 | 500 | 460 |
